JG Series · Type C · Sealed · Radial contact
JG180CP0 is a Kaydon catalogue cross-reference for a PRIUS BEARINGS thin section alternative. Its reference envelope has a bore of 18.000 in, outside diameter of 20.000 in and radial section of 1 in. The listed configuration is Type C · Sealed · Radial contact.

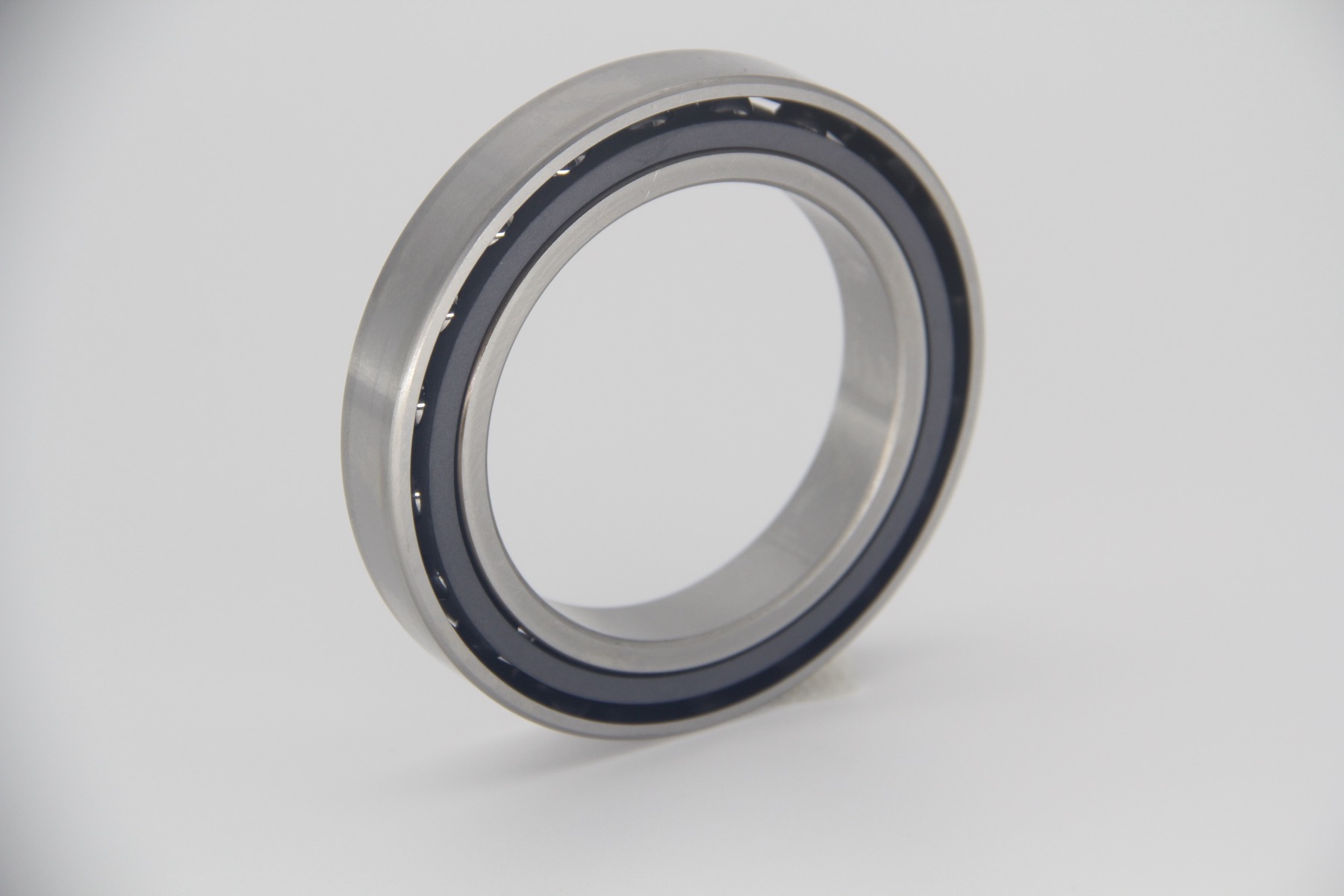

SEALED / FAMILY PHOTOProduct-family photograph. Use the JG180CP0 reference dimensions and approved drawing to confirm the supplied configuration.
Typical section drawing, not to scale. Match the dimension symbols to the model values below. Confirm fits, tolerances and manufacturing details against the approved model drawing.
TECHNICAL DATA
Original catalogue table for this reference →
Speed and maximum no-load torque are original catalogue reference values under the stated seal, lubrication and test conditions. Confirm operating speed, starting torque, lubricant and temperature for the final PRIUS drawing.
APPLICATION & INTERCHANGE REVIEW
JG180CP0 has an 18.000 in bore and 20.000 in outside diameter, giving a 1.000 in radial section. The original catalogue mass is 13.70 lb. The section and mass should be checked together when planning the support and handling of this large ring.
Its listed bore and outside diameter give a one-inch radial section. Use the corrected section and the final approved drawing when checking installation space.
MODEL SELECTION & CROSS-REFERENCE
JG180CP0 belongs to the JG Series and has a bore of 18.000 in (457.2 mm), outside diameter of 20.000 in (508 mm) and radial section of 1 in. Use the land dimensions in the table when reviewing the shaft and housing shoulders. The section drawing identifies the dimension symbols; send your mating-part drawing to confirm fits and tolerances.
Radial contact selection starts with the radial load and shaft support arrangement. If the assembly also needs axial location or moment resistance, include those loads for review before choosing the contact type.
This reference is sealed. Confirm the required seal material, lubricant and acceptable starting torque for your operating environment.
The reference dynamic radial capacity is 12,367 lb; static radial capacity is 31,190 lb. No dynamic thrust rating is listed for this reference. Send the axial load separately for engineering review. These values describe the catalogue reference. Final PRIUS ratings, clearance and service life require confirmation against the application.
These references match bore, outside diameter and radial section. Contact geometry, land dimensions, sealing and ratings may differ; interchangeability needs a drawing review.
FREQUENT QUESTIONS
Send the complete JG180CP0 reference, original drawing and required quantity. We review the 18.000 in bore, 20.000 in outside diameter, contact design, fits, clearance and load case before confirming a PRIUS alternative. Kaydon and Reali-Slim are original-owner trademarks used for cross-reference; PRIUS BEARINGS is an independent supplier.
Radial contact selection starts with the radial load and shaft support arrangement. If the assembly also needs axial location or moment resistance, include those loads for review before choosing the contact type. JG180CP0 is listed as type c · sealed · radial contact.
Send the model, quantity, shaft and housing dimensions, loads, speed, required clearance or preload, lubrication and operating environment. Email drawings or photos to sales@priusbearing.com. Include the original bearing suffix so the material and separator requirements can be checked.
INDEPENDENT ALTERNATIVE MANUFACTURER
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
Talk to an engineer →Specify the required material, separator, tolerance class, lubricant and operating temperature with your enquiry. Dimensions and load ratings are catalogue cross-reference data, not a guarantee of PRIUS product performance. Confirm the drawing, combined loads, clearance and application with our engineering team before ordering. Original catalogue reference
Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
