PRIUS BEARINGS · SLEWING RING BEARING
RKS.121405202001
slewing ring bearing
RKS.121405202001 is listed as a SKF catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1010 mm, inside diameter 378 mm, height 75 mm. Send the complete model suffix, mounting details and operating loads for review.

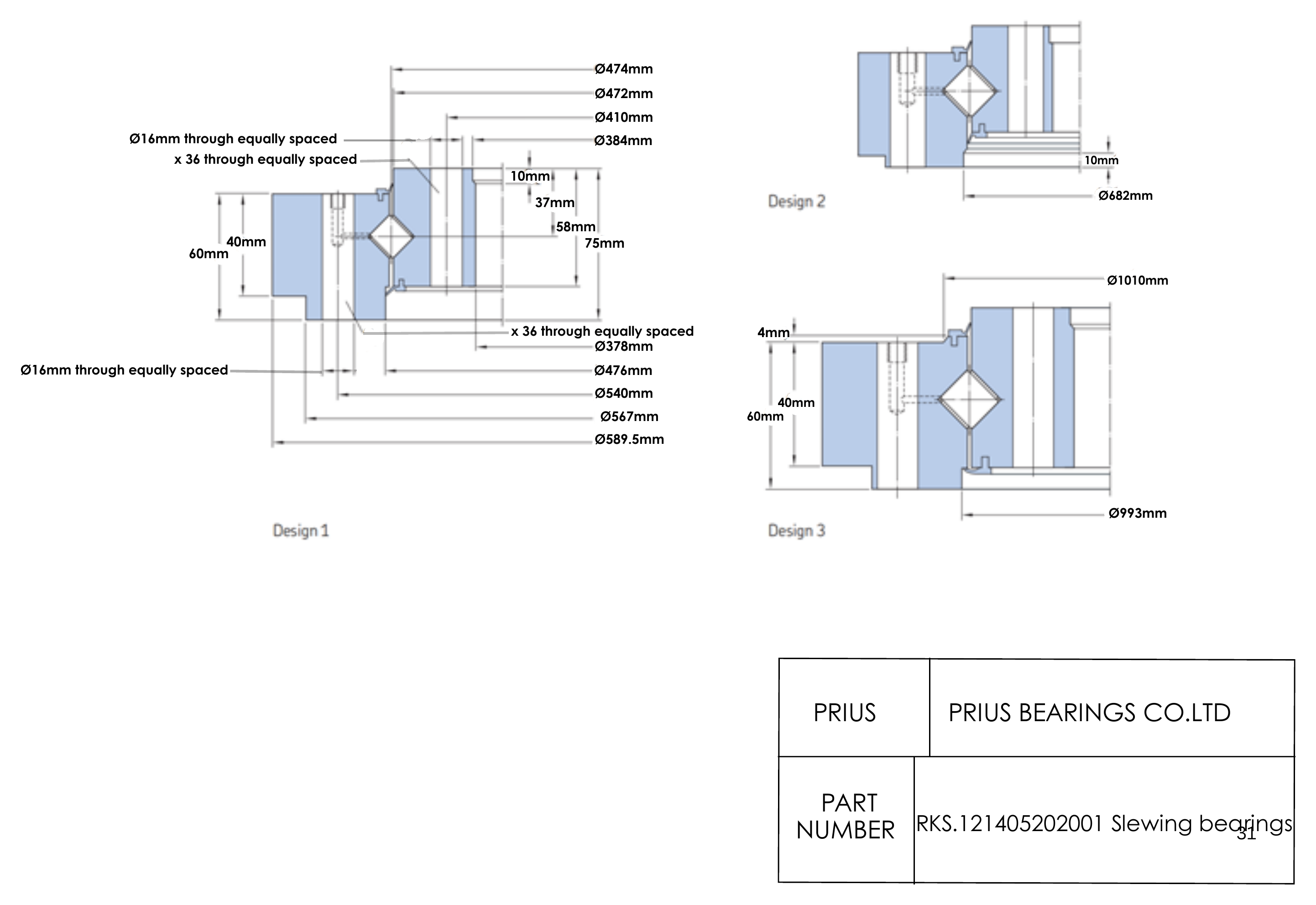

EXTERNAL GEAR / RKS.121405202001DIMENSIONAL REFERENCE
MODEL RKS.121405202001
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
RKS.121405202001
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
Cross-roller arrangement and drawing dimensions
This reference is listed in the SKF cross-roller, external-gear group. For a compact rotary axis, the application review should start with the full drawing number RKS.121405202001 and the actual mounting datums; the long numeric identifier is not a list of installation dimensions.
What to check in your assembly
- Identify the locating faces and distinguish overall H from the drawing's H1, B and B1 dimensions.
- Provide the gear and pinion drawings, drive torque, reversing cycle and backlash requirement.
- Specify runout, bearing clearance or preload, supporting flange stiffness and combined loads for the cross-roller arrangement.
Can a similar RKS numeric code confirm a direct replacement?
Match the complete drawing reference, both ring interfaces and gear details. Similar model numbers can have different mounting and internal arrangements.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for RKS.121405202001?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For RKS.121405202001, provide the complete reference and suffix, confirm outside diameter 1010 mm, inside diameter 378 mm, height 75 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
