Slewing Rings/PRIUS BEARINGS/RKS.121395101002← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKS.121395101002
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.121395101002 external gear slewing ring bearingEXTERNAL GEAR / RKS.121395101002

DIMENSIONAL REFERENCE

MODEL RKS.121395101002

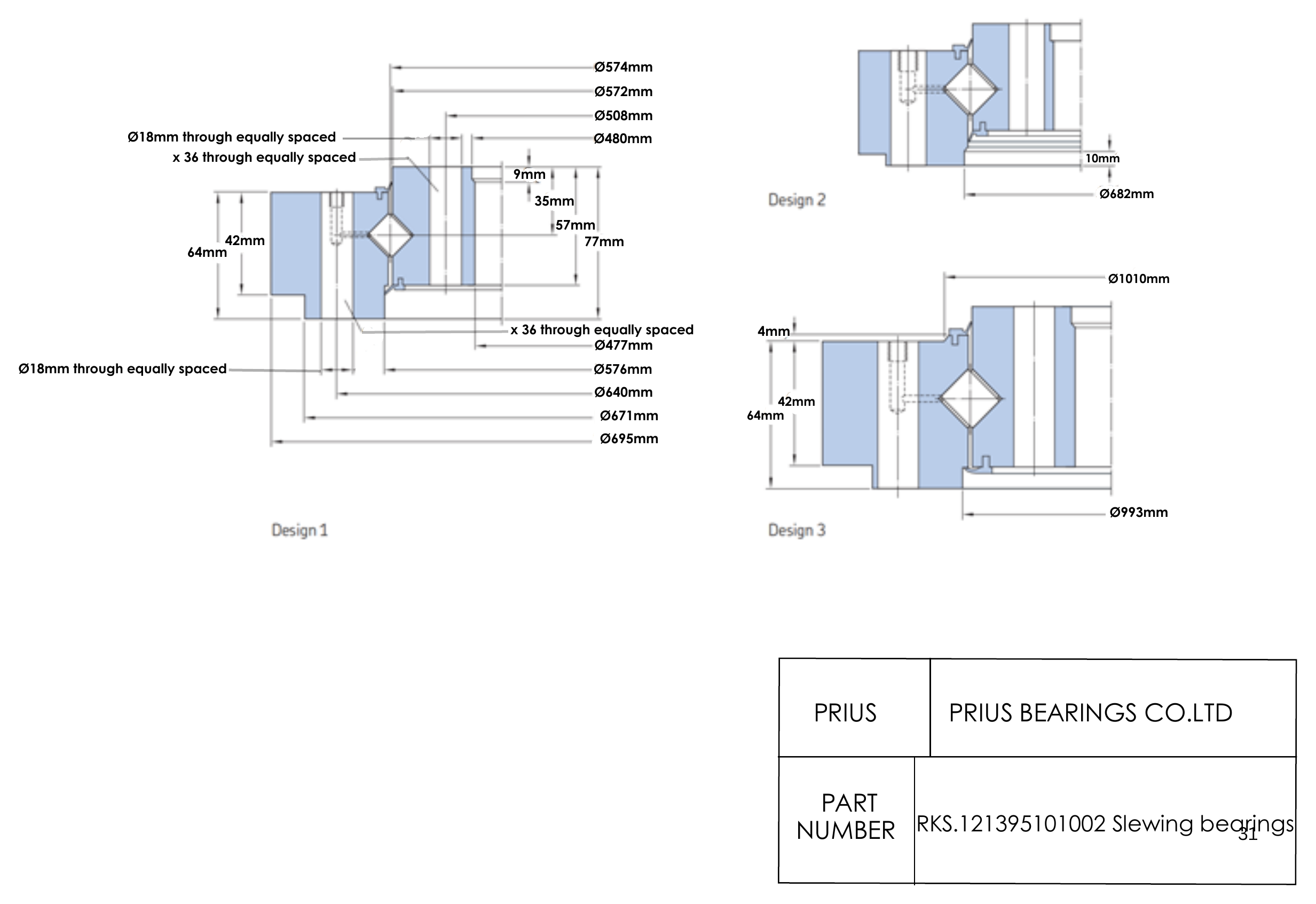

PRIUS BEARINGS RKS.121395101002 2D dimensional drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

RKS.121395101002
parameters

Key dimensions and load information for preliminary selection.

ModelRKS.121395101002
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSlewing ring bearing
Outside diameter Da (mm)1010
Inside diameter di (mm)477
Ring height H (mm)77
Mounting hole count36
Bolt diameter (mm)18
Drawing FileRKS.121395101002 slewing bearings.pdf.pdf
Shoulder height H1 (mm)35
Outer reference D1 (mm)671
Inner reference D2 (mm)576
Outer raceway offset C (mm)64
Inner raceway offset C1 (mm)42
Inner reference d1 (mm)572
Inner reference d2 (mm)480
Ring section width B (mm)57
Ring section width B1 (mm)9
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

SKF · Slewing ring bearingRKS.121390101002View dimensions and engineering data →SKF · Slewing ring bearingRKS.121400202001View dimensions and engineering data →SKF · Slewing ring bearingRKS.121405202001View dimensions and engineering data →SKF · Slewing ring bearingRKS.122290101002View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
