Slewing Rings/SKF references/RKS.122295101002← View all models

PRIUS BEARINGS · SLEWING RING BEARING

RKS.122295101002
slewing ring bearing

RKS.122295101002 is listed as a SKF catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1010 mm, inside diameter 571 mm, height 90 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review
PRIUS BEARINGS RKS.122295101002 external gear slewing ring bearingEXTERNAL GEAR / RKS.122295101002

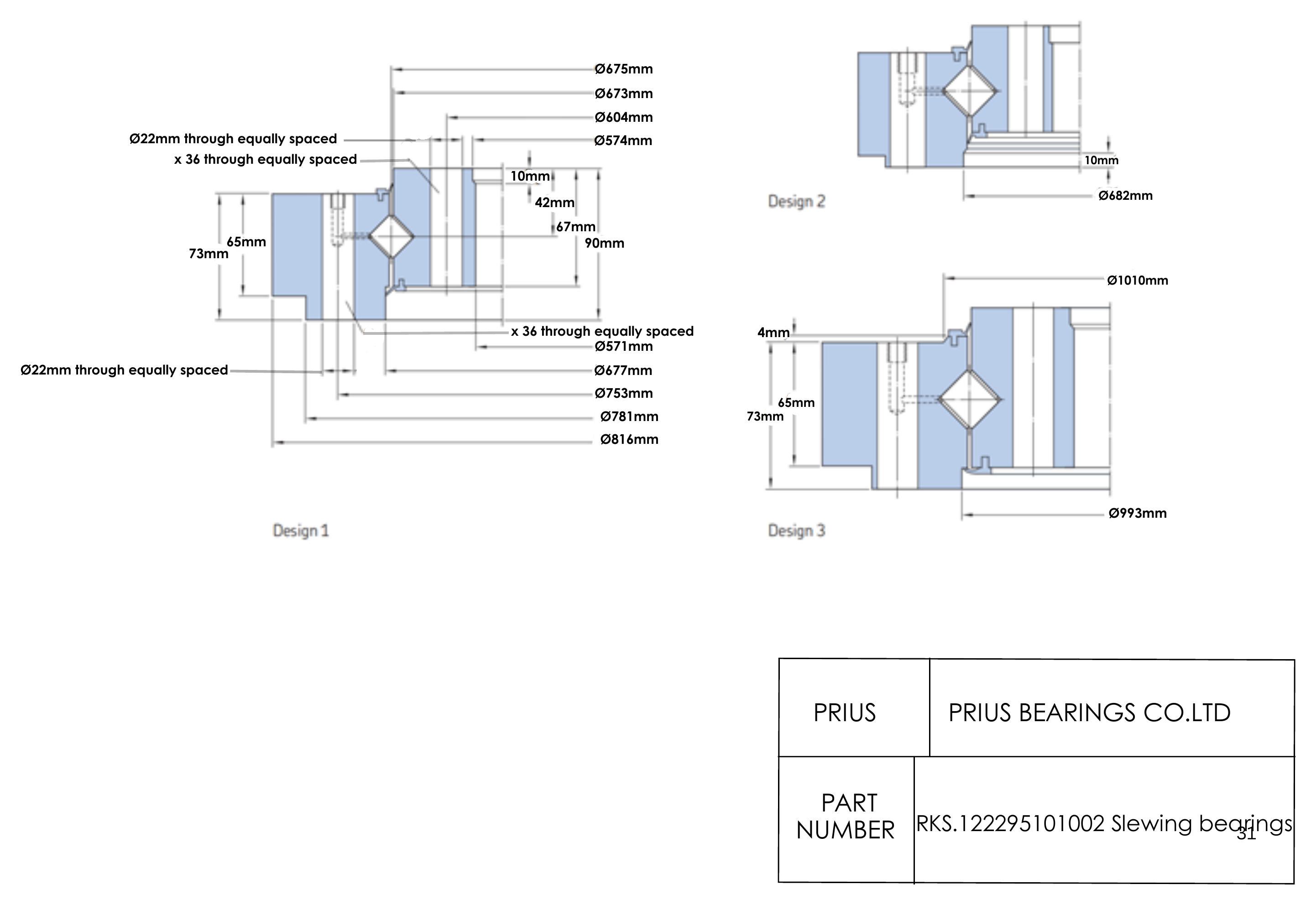

DIMENSIONAL REFERENCE

MODEL RKS.122295101002
SKF RKS.122295101002 catalogue drawing reference

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

RKS.122295101002
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelRKS.122295101002
Brand / alternativePRIUS BEARINGS · Alternative for SKF
TypeSKF Cross-roller · External gear
Outside diameter Da (mm)1010
Inside diameter di (mm)571
Ring height H (mm)90
Mounting hole count36
Mounting hole diameter (mm)22
Shoulder height H1 (mm)42
Outer reference D1 (mm)781
Inner reference D2 (mm)677
Outer raceway offset C (mm)73
Inner raceway offset C1 (mm)65
Inner reference d1 (mm)673
Inner reference d2 (mm)574
Ring section width B (mm)67
Ring section width B1 (mm)10
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

SKF · SKF Cross-roller · External gearRKS.122290101002outside diameter 816 mm, inside diameter 565 mm, height 90 mm →SKF · SKF Cross-roller · External gearRKS.223475101001outside diameter 1010 mm, inside diameter 682 mm, height 100 mm →SKF · SKF Cross-roller · External gearRKS.121395101002outside diameter 1010 mm, inside diameter 477 mm, height 77 mm →SKF · SKF Cross-roller · External gearRKS.222500101001outside diameter 979 mm, inside diameter 715 mm, height 100 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for RKS.122295101002?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For RKS.122295101002, provide the complete reference and suffix, confirm outside diameter 1010 mm, inside diameter 571 mm, height 90 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
