PRIUS BEARINGS · SLEWING RING BEARING
RKS.222500101001
slewing ring bearing
RKS.222500101001 is listed as a SKF catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 979 mm, inside diameter 715 mm, height 100 mm. Send the complete model suffix, mounting details and operating loads for review.

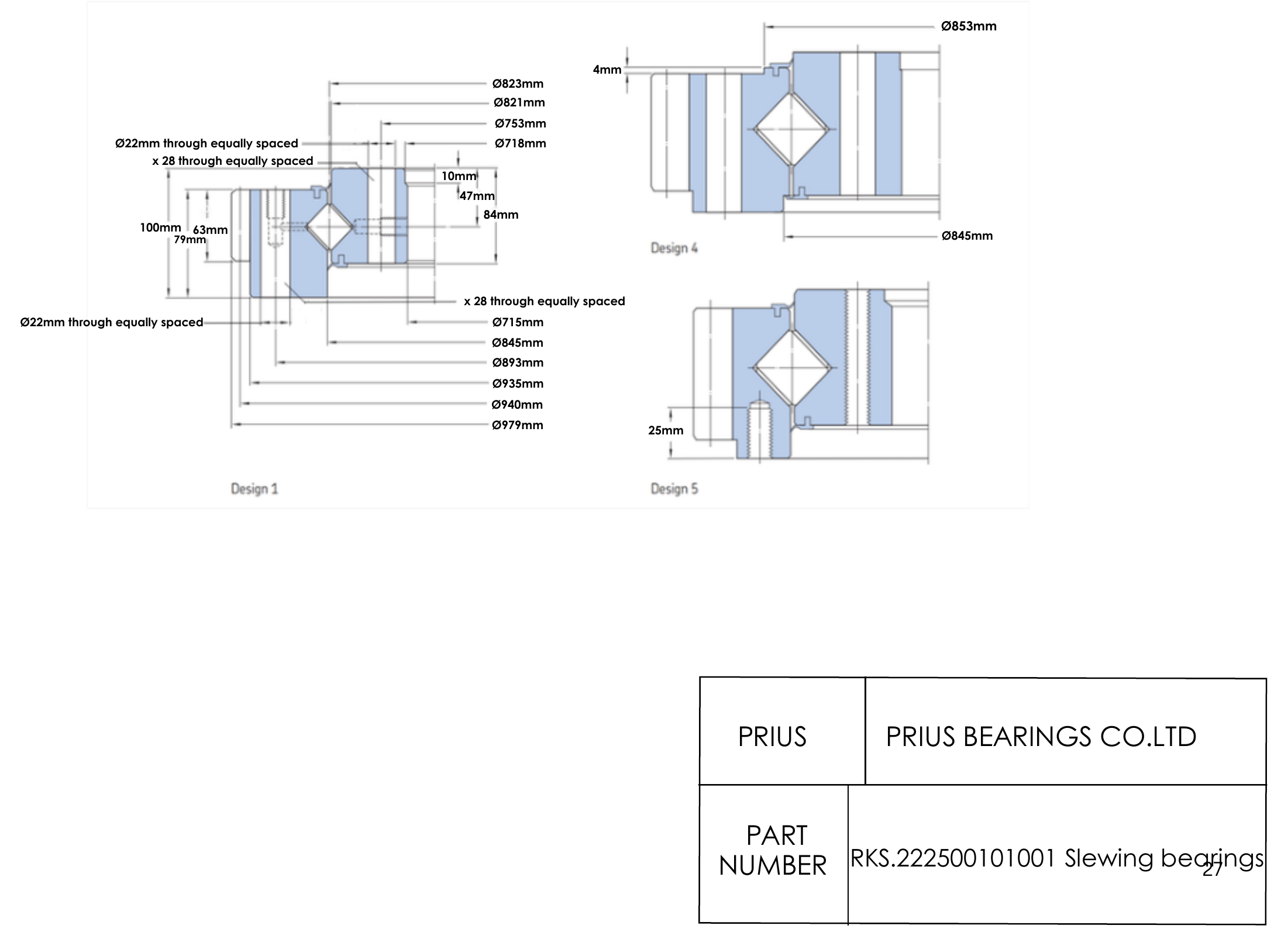

EXTERNAL GEAR / RKS.222500101001DIMENSIONAL REFERENCE
MODEL RKS.222500101001
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
RKS.222500101001
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
Cross-roller stiffness and axial locating features
For RKS.222500101001, a rotary-table review needs the cross-roller arrangement, external gear and the drawing's locating steps together. The table distinguishes overall height H from H1, C, C1, B and B1; these symbols refer to different axial features.
What to check in your assembly
- Mark the mounting datum and shaft or housing shoulder for every axial dimension on the assembly drawing.
- Provide reversal frequency, combined loads, runout and stiffness requirements for the completed table.
- Confirm gear geometry, pinion position and the exact mounting-hole pattern against the full SKF drawing reference.
Can another 100 mm-high slewing ring replace this reference?
Height alone does not establish a match. The locating steps, ring diameters, roller arrangement, holes and gear mesh all require review.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for RKS.222500101001?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For RKS.222500101001, provide the complete reference and suffix, confirm outside diameter 979 mm, inside diameter 715 mm, height 100 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
