PRIUS BEARINGS · SLEWING RING BEARING

KUD02199
slewing ring bearing

KUD02199 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2350 mm, inside diameter 1920 mm, height 156 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02199

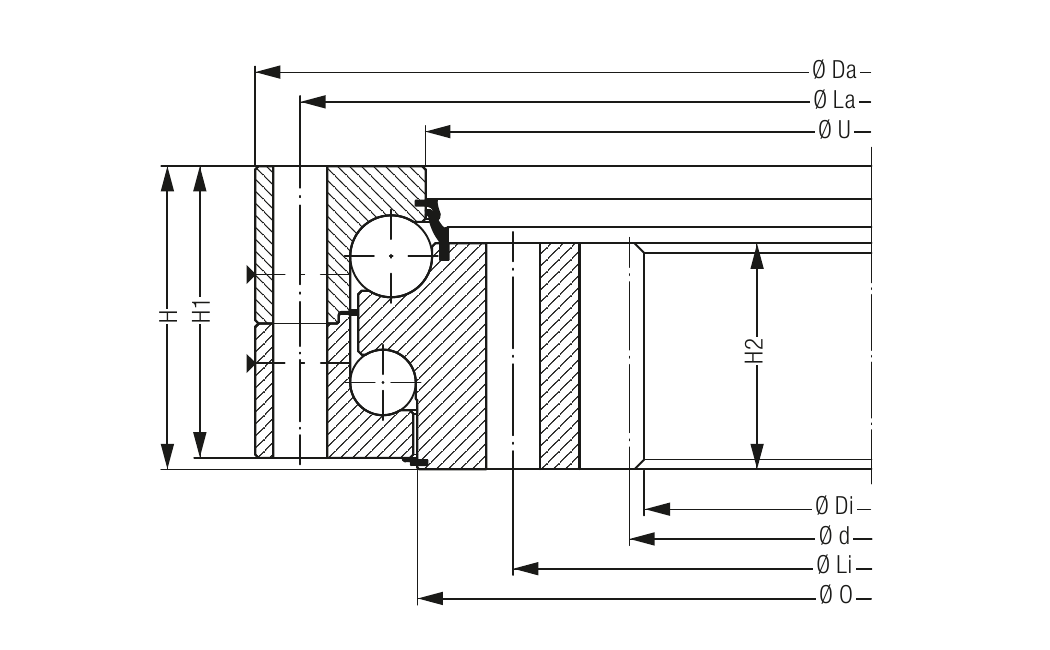

Liebherr catalogue section reference for KUD02199

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02199
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02199
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,238 kg
Outside diameter Da (mm)2,350 mm
Inside diameter di (mm)1,920 mm
Ring height H (mm)156 mm
Outer reference ØO (mm)2,168 mm
Inner reference ØU (mm)2,164 mm
Outer ring height H1 (mm)150 mm
Inner ring height H2 (mm)117 mm
Outer mounting length La (mm)2,295 mm
Inner mounting length Li (mm)2,065 mm
Mounting hole count52
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)1,936 mm
Gear module16
Gear tooth count-121
Tooth correction-8
Tooth width b (mm)117 mm
Tooth force, standard (kN)162.7 kN
Tooth force, maximum (kN)325.5 kN
Basic static axial load rating C0a (kN)17,229 kN
Basic dynamic axial load rating Ca (kN)1,223 kN
Bearing typeKUD 40 ZJ internal gear
Confirm dimensions & request a quote →
