PRIUS BEARINGS · SLEWING RING BEARING

KUD01997
slewing ring bearing

KUD01997 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2209.2 mm, inside diameter 1846 mm, height 154 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD01997

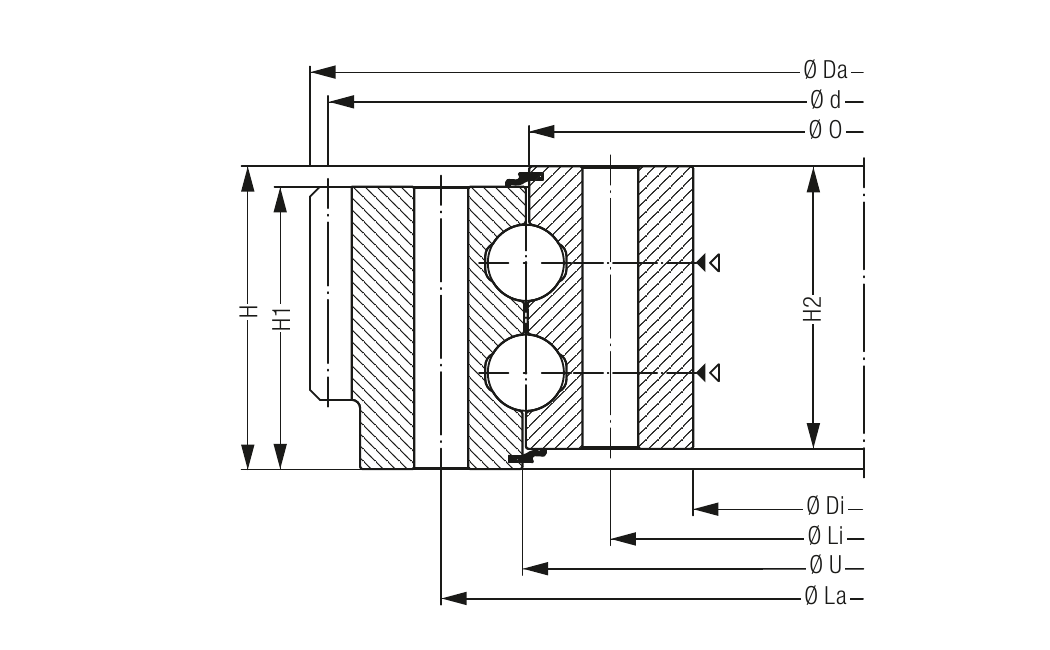

Liebherr catalogue section reference for KUD01997

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD01997
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD01997
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,073 kg
Outside diameter Da (mm)2,209.2 mm
Inside diameter di (mm)1,846 mm
Ring height H (mm)154 mm
Outer reference ØO (mm)1,995 mm
Inner reference ØU (mm)1,999 mm
Outer ring height H1 (mm)142 mm
Inner ring height H2 (mm)142 mm
Outer mounting length La (mm)2,085 mm
Inner mounting length Li (mm)1,906 mm
Mounting hole count60
Mounting hole diameter (mm)27 mm
Hole pitch diameter d (mm)2,170 mm
Gear module14
Gear tooth count155
Tooth correction7
Gear tip reduction k·m (mm)-1.4
Tooth width b (mm)140 mm
Tooth force, standard (kN)179.9 kN
Tooth force, maximum (kN)359.8 kN
Basic static axial load rating C0a (kN)23,149 kN
Basic dynamic axial load rating Ca (kN)1,568 kN
Bearing typeKUD 40 WA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02006outside diameter 2154 mm, inside diameter 1794.8 mm, height 154 mm →Liebherr · Slewing ring bearingROD01986outside diameter 2275 mm, inside diameter 1790 mm, height 158 mm →Liebherr · Slewing ring bearingKUD02199outside diameter 2350 mm, inside diameter 1920 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02056outside diameter 2186 mm, inside diameter 1850.8 mm, height 137 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD01997?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD01997, provide the complete reference and suffix, confirm outside diameter 2209.2 mm, inside diameter 1846 mm, height 154 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
