PRIUS BEARINGS · SLEWING RING BEARING

KUD02206
slewing ring bearing

KUD02206 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2354 mm, inside diameter 1990.8 mm, height 154 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02206

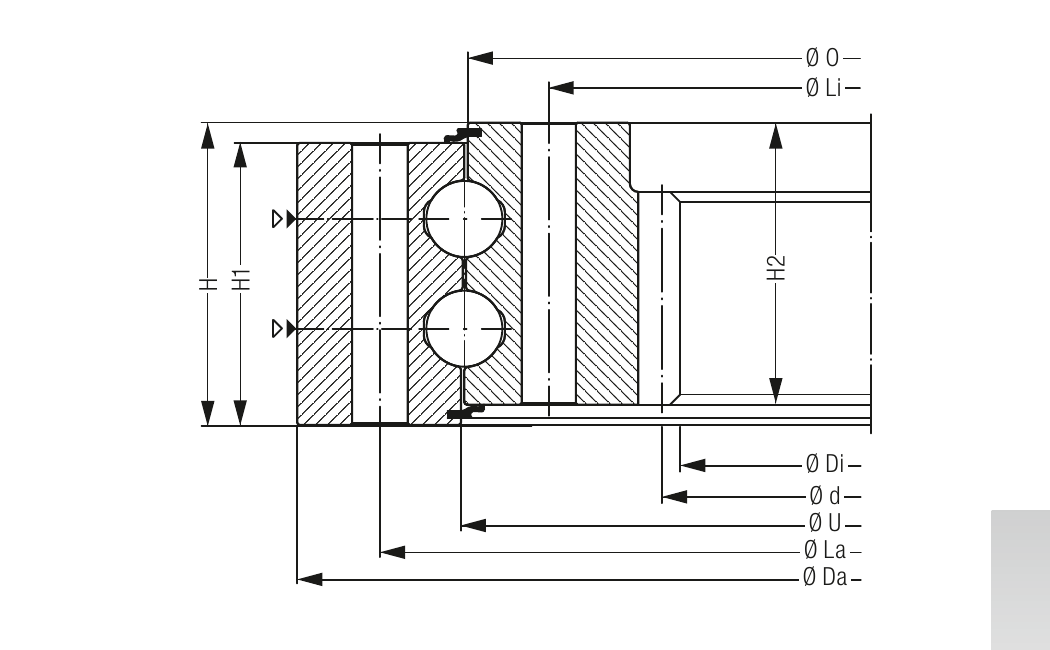

Liebherr catalogue section reference for KUD02206

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02206
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02206
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,169 kg
Outside diameter Da (mm)2,354 mm
Inside diameter di (mm)1,990.8 mm
Ring height H (mm)154 mm
Outer reference ØO (mm)2,204 mm
Inner reference ØU (mm)2,208 mm
Outer ring height H1 (mm)142 mm
Inner ring height H2 (mm)142 mm
Outer mounting length La (mm)2,294 mm
Inner mounting length Li (mm)2,115 mm
Mounting hole count60
Mounting hole diameter (mm)27 mm
Hole pitch diameter d (mm)2,002 mm
Gear module14
Gear tooth count-143
Tooth correction-7
Gear tip reduction k·m (mm)-1.4
Tooth width b (mm)140 mm
Tooth force, standard (kN)179.9 kN
Tooth force, maximum (kN)359.8 kN
Basic static axial load rating C0a (kN)25,577 kN
Basic dynamic axial load rating Ca (kN)1,626 kN
Bearing typeKUD 40 WJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02197outside diameter 2405.2 mm, inside diameter 2046 mm, height 154 mm →Liebherr · Slewing ring bearingKUD02199outside diameter 2350 mm, inside diameter 1920 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02147outside diameter 2311 mm, inside diameter 1980 mm, height 170 mm →Liebherr · Slewing ring bearingKUD01997outside diameter 2209.2 mm, inside diameter 1846 mm, height 154 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02206?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02206, provide the complete reference and suffix, confirm outside diameter 2354 mm, inside diameter 1990.8 mm, height 154 mm, and include gear configuration, mounting-hole details, loads and operating speed.
