Thin Section Bearings/KG Series/KG100AR0

KG Series · Type A · Open · Angular contact

KG100AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KG100AR0 open thin section bearingOPEN / KG100AR0

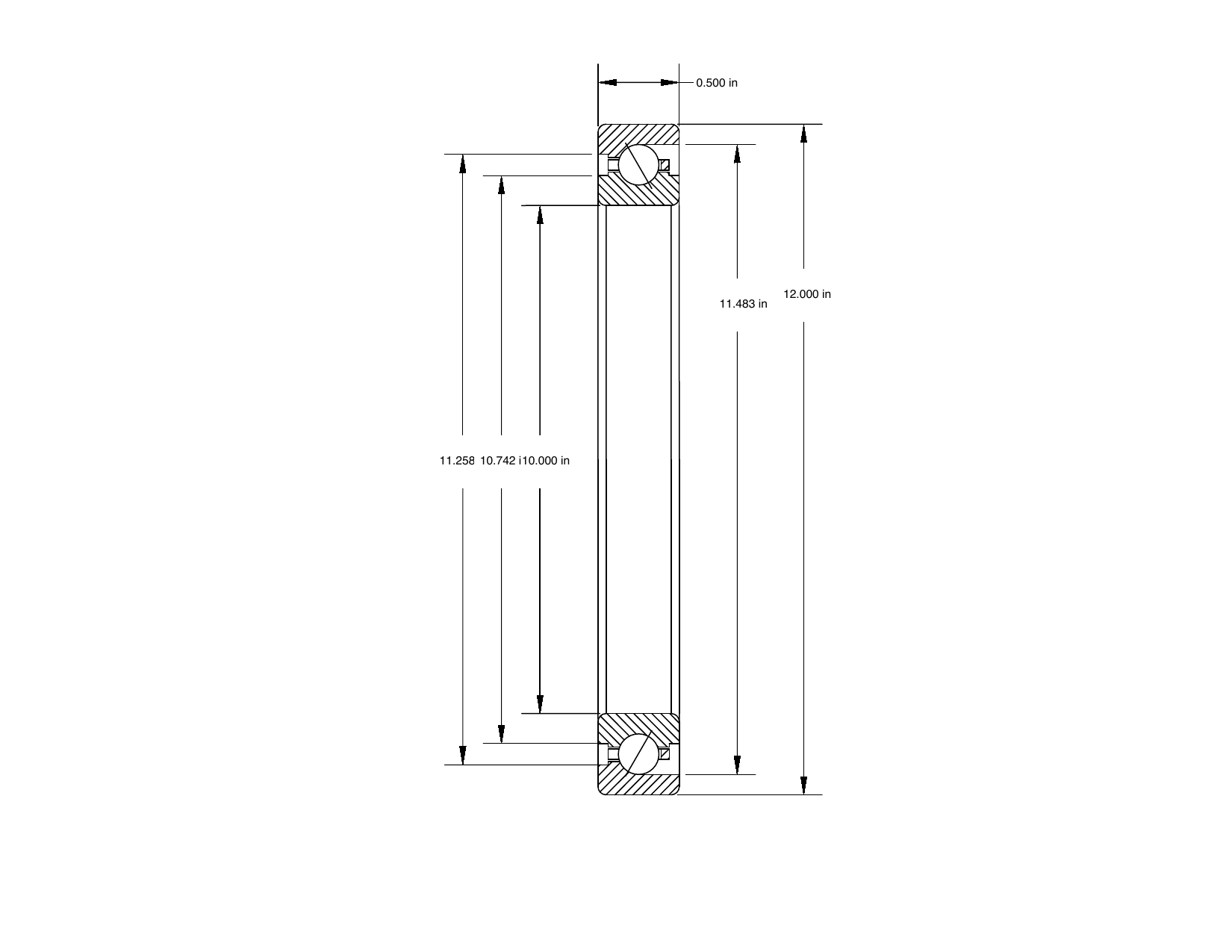

PRIUS BEARINGSMECHANICAL DRAWING · KG100AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KG100AR0 dimensioned mechanical drawing
PART NUMBERKG100AR0
BORE / d10.000 in
O.D. / D12.000 in
WIDTH / B0.500 in
L1 / L2 / L310.742 in / 11.258 in / 11.483 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD9,561
STATIC RADIAL LOAD20,850
DYNAMIC THRUST LOAD23,060
STATIC THRUST LOAD60,190
WEIGHT0.8 lb

TECHNICAL DATA

Specification
at a glance.

Bore10.000 in
Outside diameter12.000 in
Radial section0.500 in
L1 land diameter10.742 in
L2 land diameter11.258 in
L3 counterbore11.483 in
Dynamic radial capacity9,561
Dynamic thrust capacity23,060
Static radial capacity20,850
Static thrust capacity60,190
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.8 lb

FIND YOUR FIT

Related models.

Open full selector ↗
