KG Series · Type A · Open · Angular contact
KG110AR0
thin section bearing
Open angular contact thin section bearing for precision motion and compact assemblies.

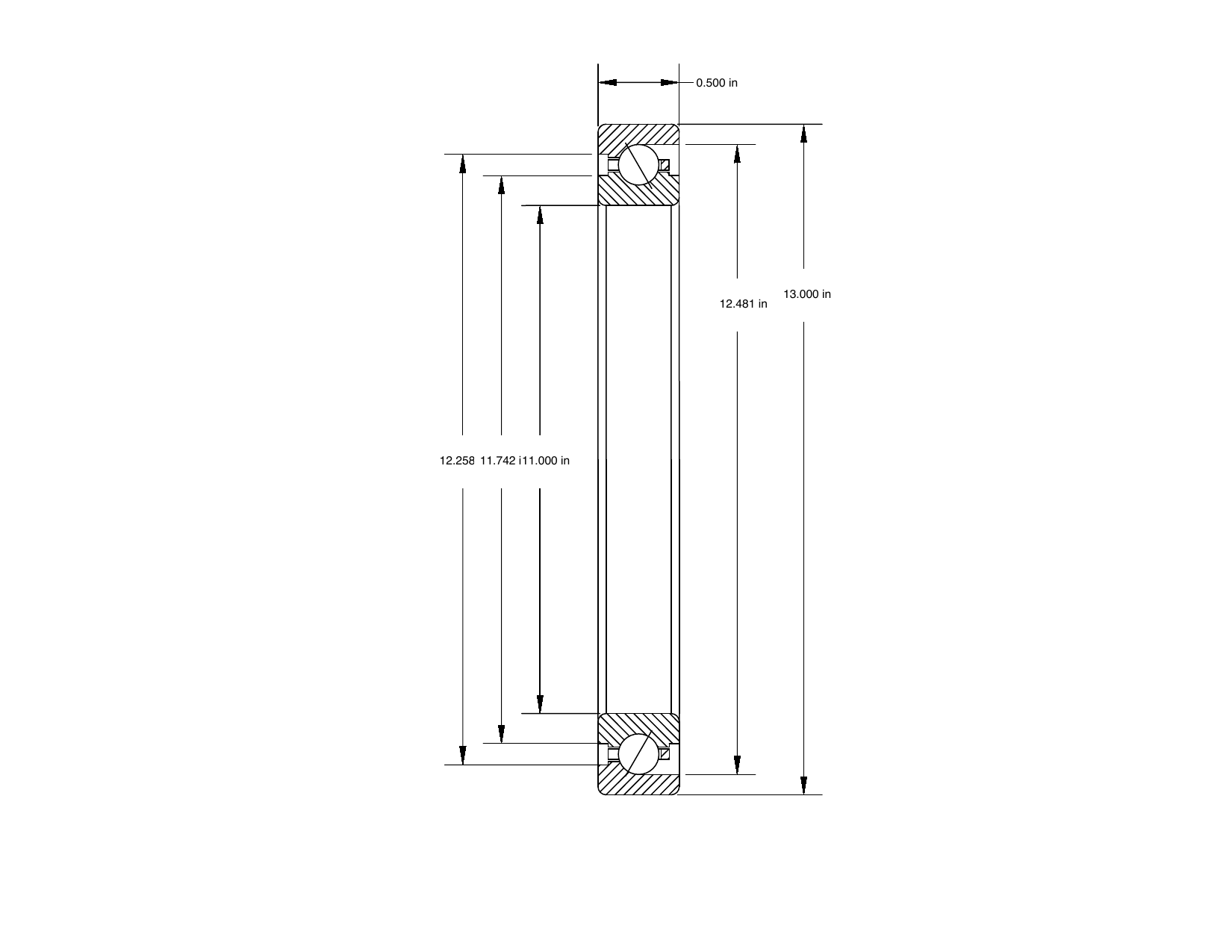

OPEN / KG110AR0PRIUS BEARINGSMECHANICAL DRAWING · KG110AR0UNITS: inch · SCALE: NTS
PART NUMBERKG110AR0
BORE / d11.000 in
O.D. / D13.000 in
WIDTH / B0.500 in
L1 / L2 / L311.742 in / 12.258 in / 12.481 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD10,027
STATIC RADIAL LOAD22,750
DYNAMIC THRUST LOAD24,440
STATIC THRUST LOAD65,660
WEIGHT0.8 lb
TECHNICAL DATA
Specification
at a glance.
Bore11.000 in
Outside diameter13.000 in
Radial section0.500 in
L1 land diameter11.742 in
L2 land diameter12.258 in
L3 counterbore12.481 in
Dynamic radial capacity10,027
Dynamic thrust capacity24,440
Static radial capacity22,750
Static thrust capacity65,660
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.8 lb
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for KG110AR0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
Talk to an engineer →Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
