Thin Section Bearings/JG Series/JG100XP0

JG Series · Type X · Sealed · Four-point contact

JG100XP0
thin section bearing

Sealed four-point contact bearing for protected combined-load applications.

Request a quote →Back to all models
PRIUS BEARINGS JG100XP0 sealed thin section bearingSEALED / JG100XP0

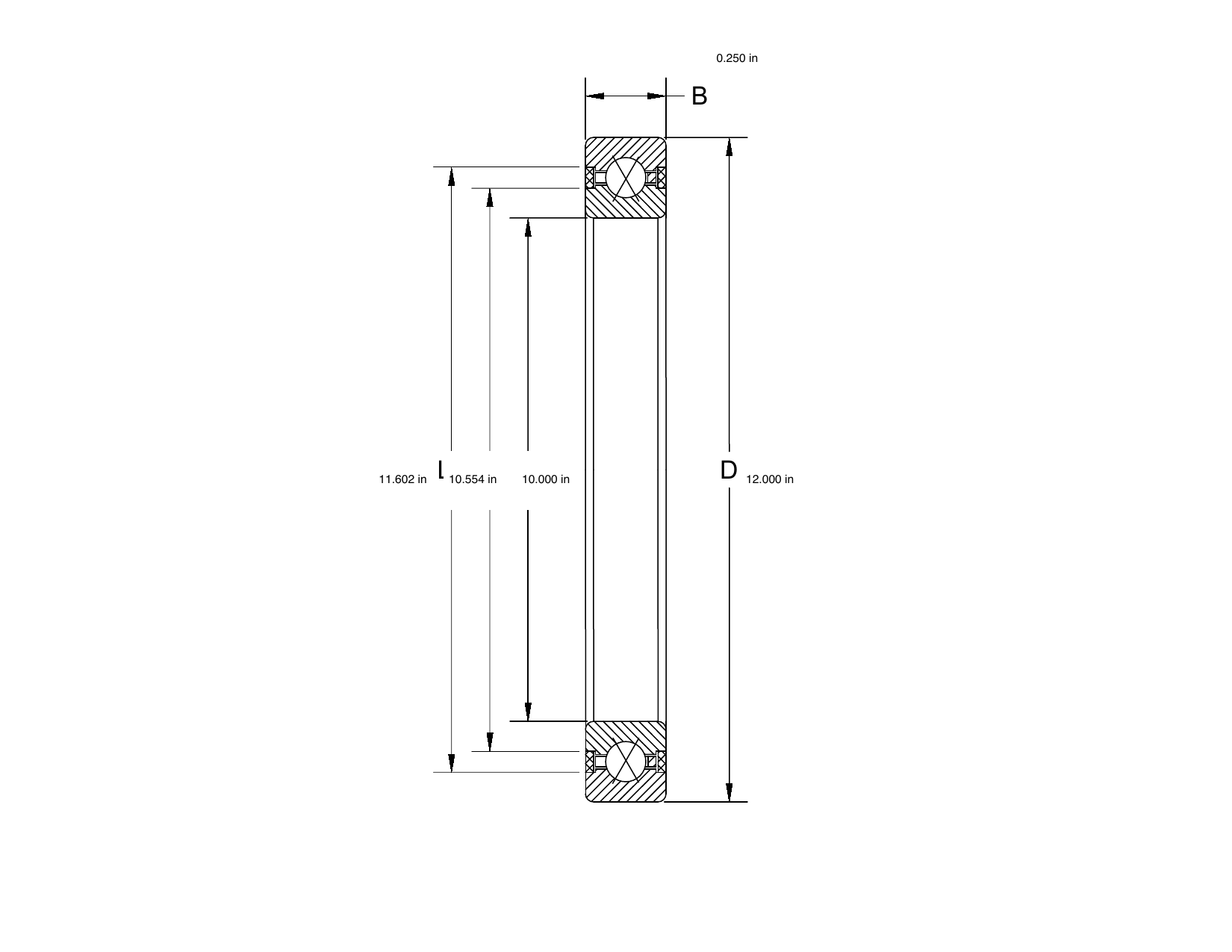

PRIUS BEARINGSMECHANICAL DRAWING · JG100XP0UNITS: inch · SCALE: NTS
PRIUS BEARINGS JG100XP0 dimensioned mechanical drawing
PART NUMBERJG100XP0
BORE / d10.000 in
O.D. / D12.000 in
WIDTH / B0.250 in
L1 / L2 / L310.554 in / 11.602 in / —
TYPEType X · Sealed · Four-point contact
DYNAMIC RADIAL LOAD12,147
STATIC RADIAL LOAD18,060
DYNAMIC THRUST LOAD19,040
STATIC THRUST LOAD45,140
WEIGHT0.7 lb

TECHNICAL DATA

Specification
at a glance.

Bore10.000 in
Outside diameter12.000 in
Radial section0.250 in
L1 land diameter10.554 in
L2 land diameter11.602 in
L3 counterbore—
Dynamic radial capacity12,147
Dynamic thrust capacity19,040
Static radial capacity18,060
Static thrust capacity45,140
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.7 lb
