Thin Section Bearings/KA Series/KA060AR0

KA Series · Type A · Open

KA060AR0
thin section bearing

Open thin section bearing for applications that need low weight, compact envelope and axial load capability.

Request a quote →Back to all models
PRIUS BEARINGS KA060AR0 open thin section bearingOPEN / KA060AR0

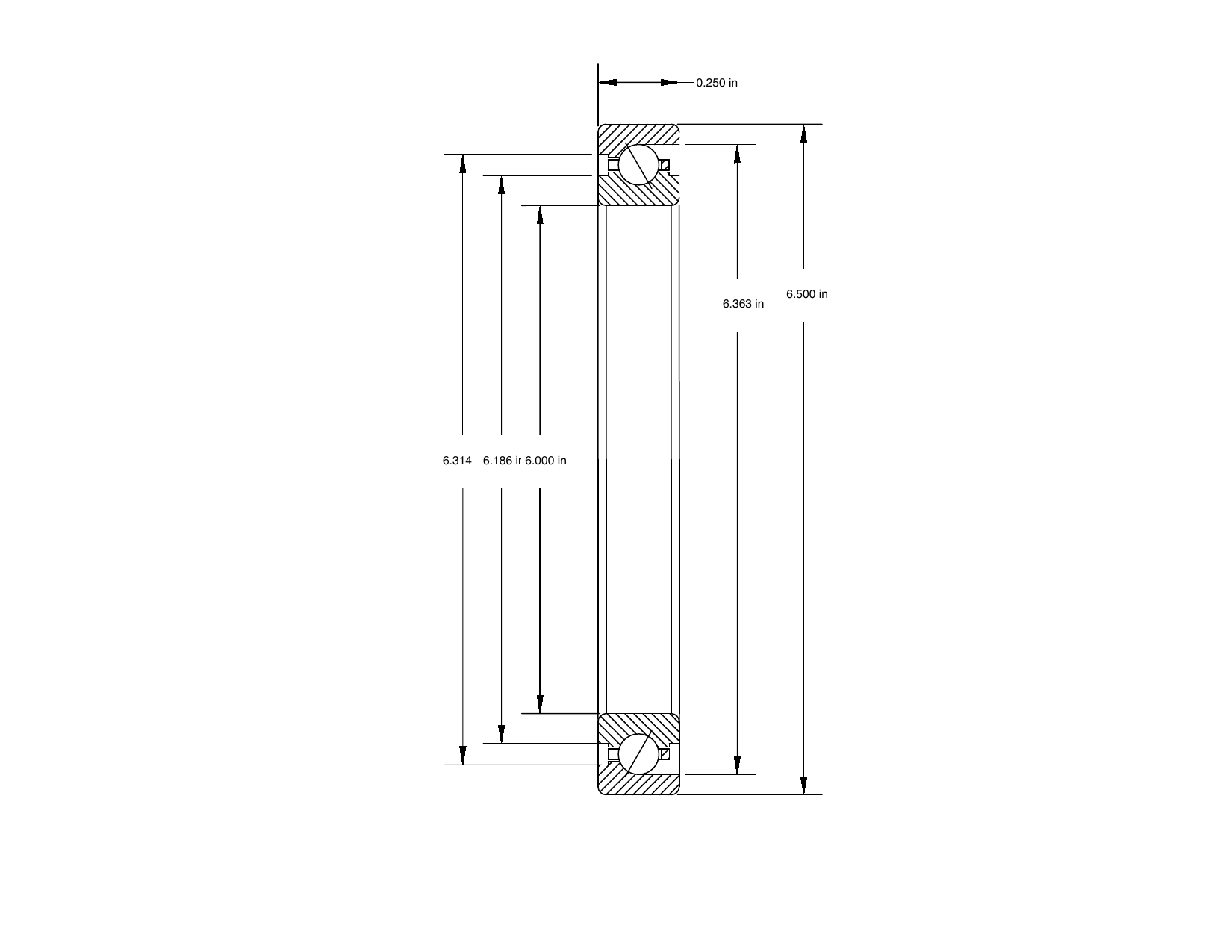

PRIUS BEARINGSMECHANICAL DRAWING · KA060AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KA060AR0 dimensioned mechanical drawing
PART NUMBERKA060AR0
BORE / d6.000 in
O.D. / D6.500 in
WIDTH / B0.250 in
L1 / L2 / L36.186 in / 6.314 in / 6.363 in
TYPEType A · Open
DYNAMIC RADIAL LOAD752 lb
STATIC RADIAL LOAD2,190 lb
DYNAMIC THRUST LOAD1,900 lb
STATIC THRUST LOAD6,320 lb
WEIGHT0.28 lb

TECHNICAL DATA

Specification
at a glance.

Bore6.000 in
Outside diameter6.500 in
Radial section0.250 in
L1 land diameter6.186 in
L2 land diameter6.314 in
L3 counterbore6.363 in
Dynamic radial capacity752 lb
Dynamic thrust capacity1,900 lb
Static radial capacity2,190 lb
Static thrust capacity6,320 lb
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.28 lb

FIND YOUR FIT

Related models.

Open full selector ↗
Type A · OpenKB060AR0d 6.000 in · D 6.625 in · 1,088 lb radialType A · OpenKA040AR0d 4.000 in · D 4.500 in · 595 lb radialType A · OpenKA080AR0d 8.000 in · D 8.500 in · 890 lb radialType A · OpenKB040AR0d 4.000 in · D 4.625 in · 865 lb radial

INDEPENDENT ALTERNATIVE MANUFACTURER

Need a direct replacement
for KA060AR0?

Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.

Talk to an engineer →

Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
