Thin Section Bearings/13 mm Series/K09013XP0

13 mm Series · Type X · Open · Four-point contact

K09013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K09013XP0 open thin section bearingOPEN / K09013XP0

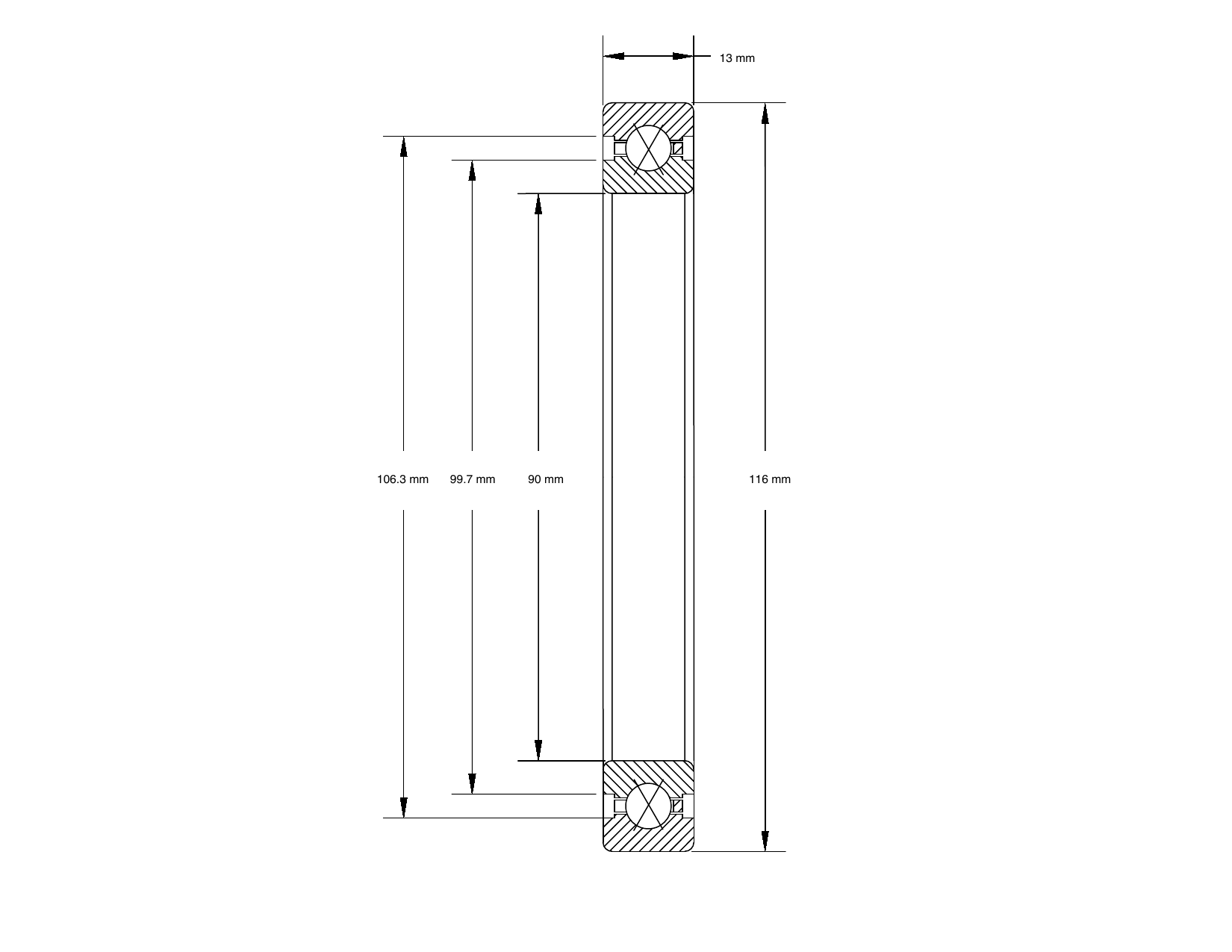

PRIUS BEARINGSMECHANICAL DRAWING · K09013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K09013XP0 dimensioned mechanical drawing
PART NUMBERK09013XP0
BORE / d90 mm
O.D. / D116 mm
WIDTH / B13 mm
L1 / L2 / L399.7 mm / 106.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD12003
STATIC RADIAL LOAD38030
DYNAMIC THRUST LOAD17730
STATIC THRUST LOAD784
WEIGHT0.31 kg

TECHNICAL DATA

Specification
at a glance.

Bore90 mm
Outside diameter116 mm
Radial section13 mm
L1 land diameter99.7 mm
L2 land diameter106.3 mm
L3 counterbore—
Dynamic radial capacity12003
Dynamic thrust capacity17730
Static radial capacity38030
Static thrust capacity784
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.31 kg
