Thin Section Bearings/13 mm Series/K09013CP0

13 mm Series · Type C · Open · Radial contact

K09013CP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K09013CP0 open thin section bearingOPEN / K09013CP0

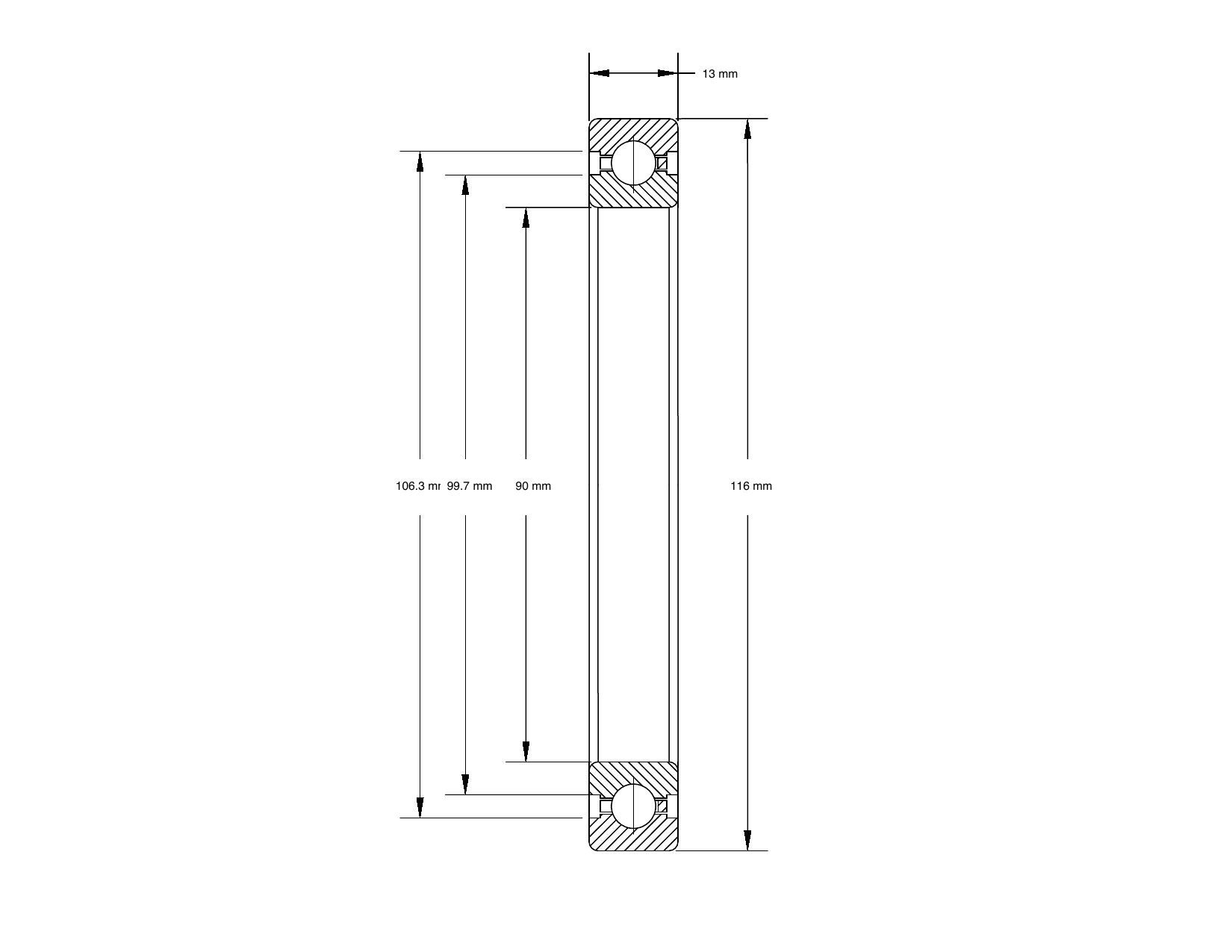

PRIUS BEARINGSMECHANICAL DRAWING · K09013CP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K09013CP0 dimensioned mechanical drawing
PART NUMBERK09013CP0
BORE / d90 mm
O.D. / D116 mm
WIDTH / B13 mm
L1 / L2 / L399.7 mm / 106.3 mm / —
TYPEType C · Open · Radial contact
DYNAMIC RADIAL LOAD9130
STATIC RADIAL LOAD15210
DYNAMIC THRUST LOADN/A
STATIC THRUST LOADN/A
WEIGHT0.29 kg

TECHNICAL DATA

Specification
at a glance.

Bore90 mm
Outside diameter116 mm
Radial section13 mm
L1 land diameter99.7 mm
L2 land diameter106.3 mm
L3 counterbore—
Dynamic radial capacity9130
Dynamic thrust capacityN/A
Static radial capacity15210
Static thrust capacityN/A
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.29 kg
