Thin Section Bearings/13 mm Series/K08013XP0

13 mm Series · Type X · Open · Four-point contact

K08013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K08013XP0 open thin section bearingOPEN / K08013XP0

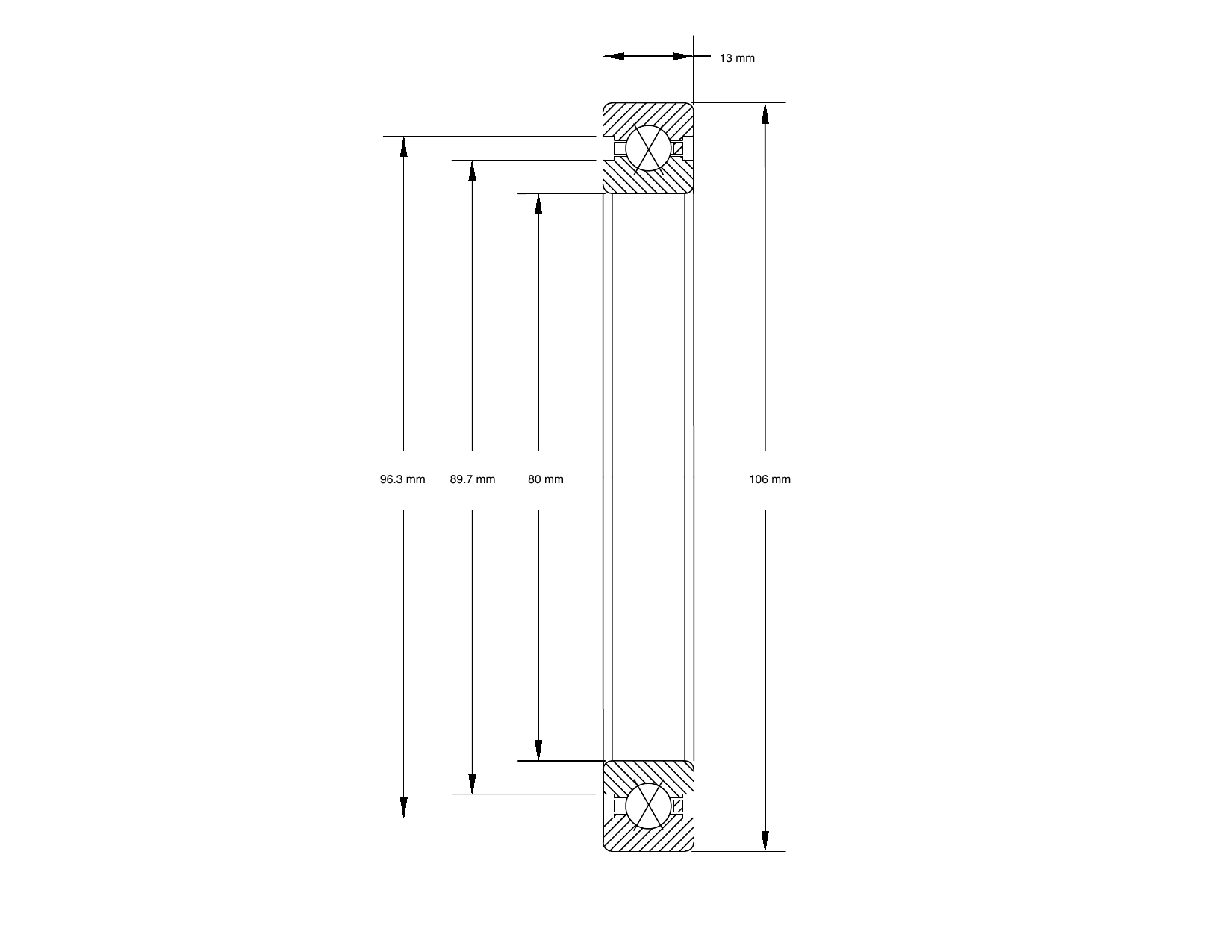

PRIUS BEARINGSMECHANICAL DRAWING · K08013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K08013XP0 dimensioned mechanical drawing
PART NUMBERK08013XP0
BORE / d80 mm
O.D. / D106 mm
WIDTH / B13 mm
L1 / L2 / L389.7 mm / 96.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD11111
STATIC RADIAL LOAD33274
DYNAMIC THRUST LOAD16210
STATIC THRUST LOAD619
WEIGHT0.28 kg

TECHNICAL DATA

Specification
at a glance.

Bore80 mm
Outside diameter106 mm
Radial section13 mm
L1 land diameter89.7 mm
L2 land diameter96.3 mm
L3 counterbore—
Dynamic radial capacity11111
Dynamic thrust capacity16210
Static radial capacity33274
Static thrust capacity619
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.28 kg
