Thin Section Bearings/13 mm Series/K05013XP0

13 mm Series · Type X · Open · Four-point contact

K05013XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K05013XP0 open thin section bearingOPEN / K05013XP0

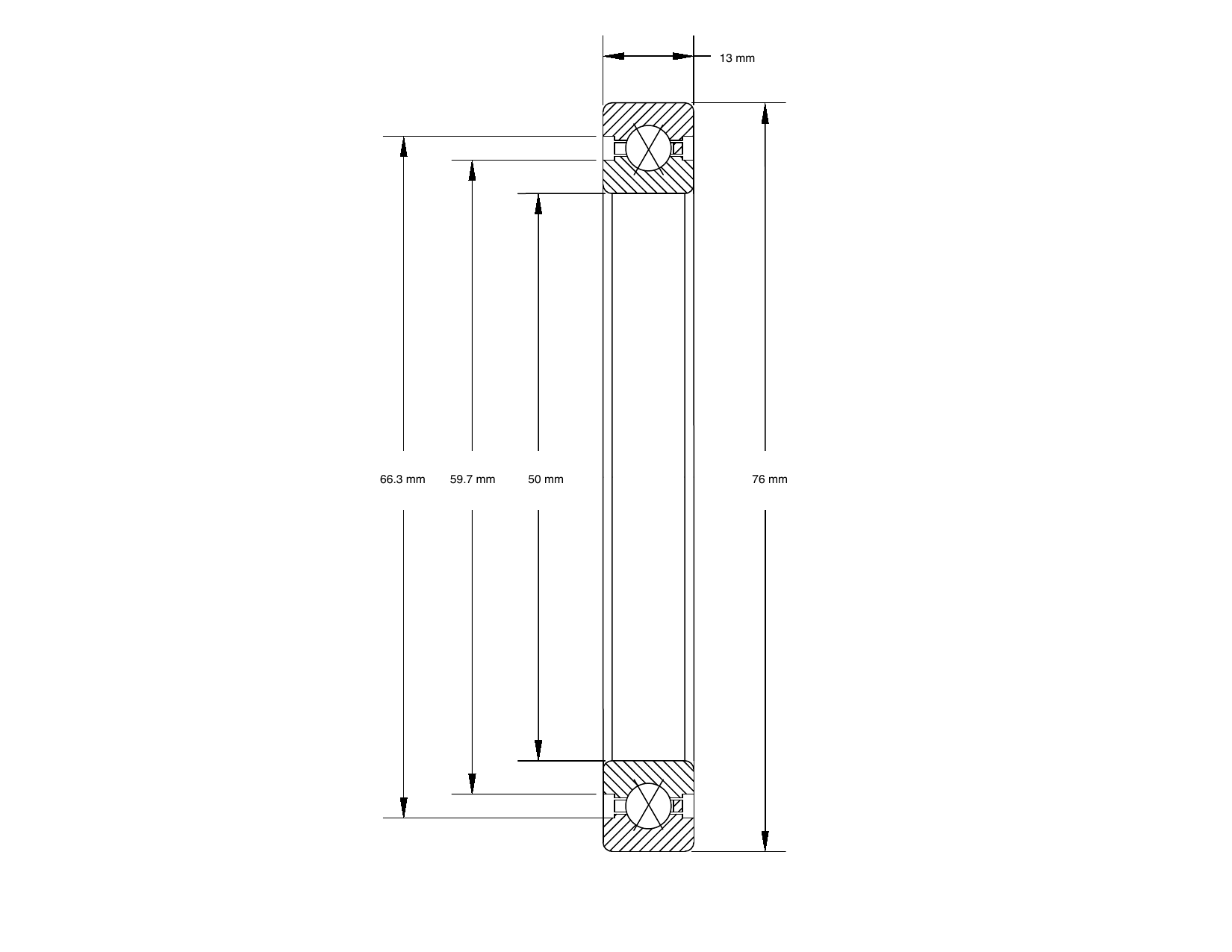

PRIUS BEARINGSMECHANICAL DRAWING · K05013XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K05013XP0 dimensioned mechanical drawing
PART NUMBERK05013XP0
BORE / d50 mm
O.D. / D76 mm
WIDTH / B13 mm
L1 / L2 / L359.7 mm / 66.3 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD8924
STATIC RADIAL LOAD22192
DYNAMIC THRUST LOAD12023
STATIC THRUST LOAD280
WEIGHT0.20 kg

TECHNICAL DATA

Specification
at a glance.

Bore50 mm
Outside diameter76 mm
Radial section13 mm
L1 land diameter59.7 mm
L2 land diameter66.3 mm
L3 counterbore—
Dynamic radial capacity8924
Dynamic thrust capacity12023
Static radial capacity22192
Static thrust capacity280
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.20 kg
