PRIUS BEARINGS · SLEWING RING BEARING
061.40.1400.000.19.1504
slewing ring bearing
061.40.1400.000.19.1504 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1593.6 mm, inside diameter 1266 mm, height 94 mm. Send the complete model suffix, mounting details and operating loads for review.

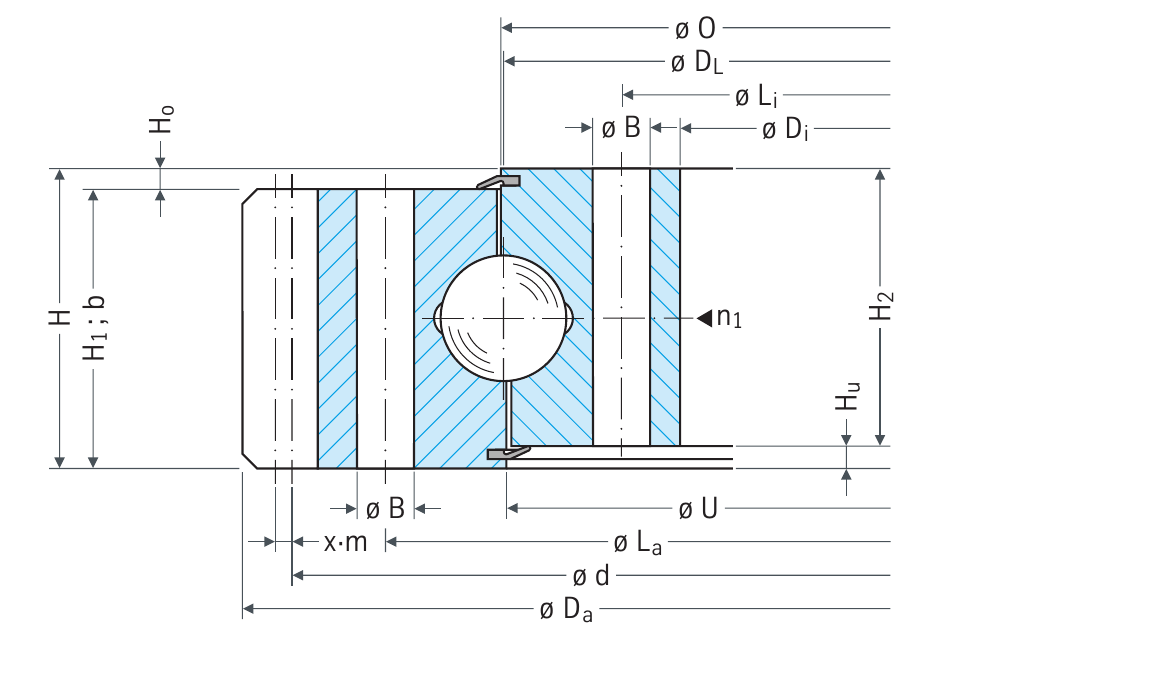

EXTERNAL GEAR / 061.40.1400.000.19.1504DIMENSIONAL REFERENCE
MODEL 061.40.1400.000.19.1504
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
061.40.1400.000.19.1504
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
External gearing and offset ring faces
The Series 06 original table lists this as a single-row four-point bearing with external gearing. Its 94 mm overall height includes different ring-face dimensions, so the mating flange stack should be reviewed with the 1593.6 mm outside and 1266 mm inside envelope.
What to check in your assembly
- Check the 1482 mm and 1318 mm attachment circles, the 36-hole specification and M24 fastener reference.
- Review the 85 mm and 81 mm ring heights and the locating faces on the section drawing.
- Confirm the module 12, 130-tooth gear and the applicable tooth treatment for the complete .000.19.1504 reference.
Does the catalogue's 1400 designation define the mounting circle?
It is a raceway reference. The inner and outer attachment circles are separate dimensions and must match the companion flanges.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for 061.40.1400.000.19.1504?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For 061.40.1400.000.19.1504, provide the complete reference and suffix, confirm outside diameter 1593.6 mm, inside diameter 1266 mm, height 94 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
