Slewing Rings/PRIUS BEARINGS/061.30.1500.200.11.1504← View all models

PRIUS BEARINGS · SLEWING RING BEARING

061.30.1500.200.11.1504
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL 061.30.1500.200.11.1504

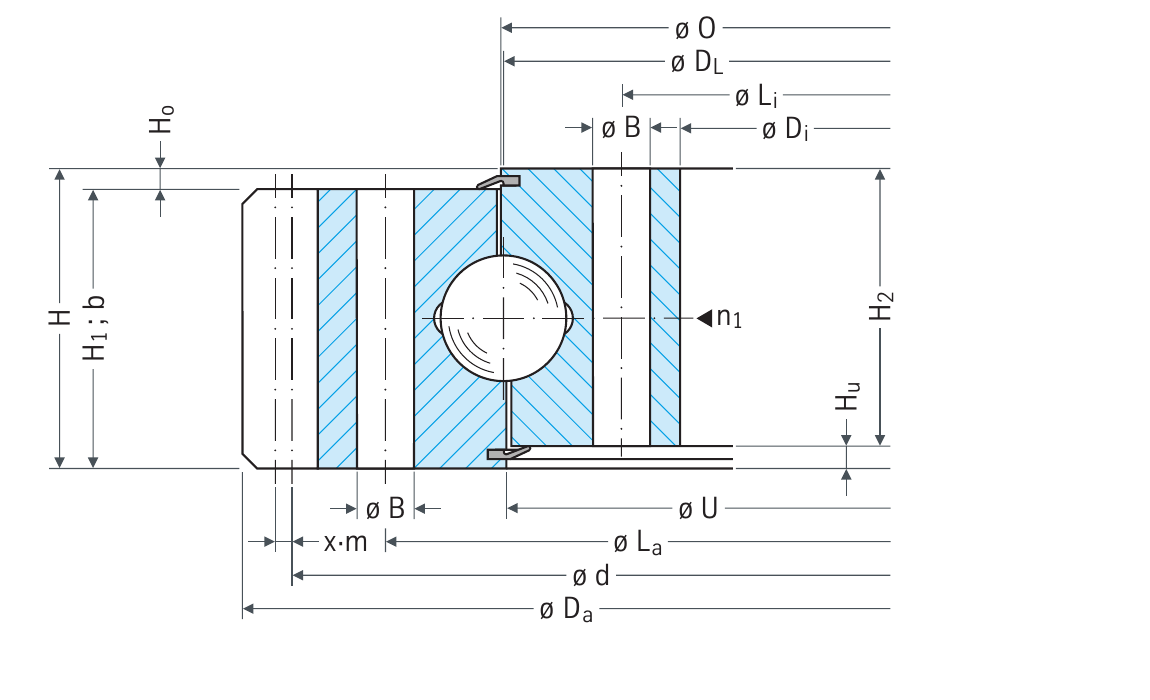

PRIUS BEARINGS 061.30.1500.200.11.1504 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

061.30.1500.200.11.1504
parameters

Key dimensions and load information for preliminary selection.

Model061.30.1500.200.11.1504
Brand / alternativePRIUS BEARINGS · Alternative for Rothe Erde
TypeSlewing ring bearing
Raceway diameter (mm)1500 mm
Outside diameter Da (mm)1677.6 mm
Inside diameter di (mm)1388 mm
Ring height H (mm)89 mm
Outer reference ØO (mm)1501 mm
Inner reference ØU (mm)1498 mm
Outer ring height H1 (mm)80 mm
Inner ring height H2 (mm)63 mm
Housing Height26 mm
Cover Height9 mm
Outer mounting length La (mm)1568 mm
Inner mounting length Li (mm)1432 mm
Mounting hole count48
Bolt diameter (mm)22 mm
Bolt size20
Hole pitch diameter d (mm)1644 mm
Gear module12
Gear tooth count137
Tooth correction6.0 mm
Tooth width b (mm)1.2 mm
Weight (kg)79 kg
Confirm dimensions & request a quote →
