PRIUS BEARINGS · SLEWING RING BEARING

ROD04500
slewing ring bearing

ROD04500 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 4867.2 mm, inside diameter 4262 mm, height 220 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD04500

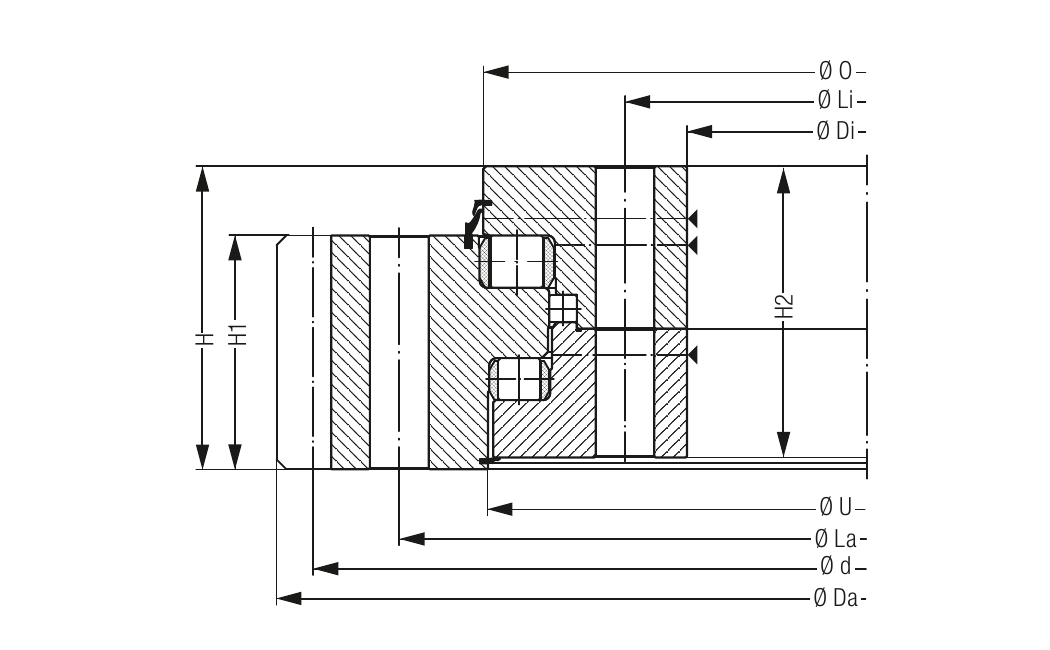

Liebherr catalogue section reference for ROD04500

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

ROD04500
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelROD04500
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)5,410 kg
Outside diameter Da (mm)4,867.2 mm
Inside diameter di (mm)4,262 mm
Ring height H (mm)220 mm
Outer reference ØO (mm)4,550 mm
Inner reference ØU (mm)4,537 mm
Outer ring height H1 (mm)170 mm
Inner ring height H2 (mm)210 mm
Outer mounting length La (mm)4,665 mm
Inner mounting length Li (mm)4,340 mm
Mounting hole count84
Mounting hole diameter (mm)36 mm
Hole pitch diameter d (mm)4,800 mm
Gear module24
Gear tooth count200
Tooth correction12
Gear tip reduction k·m (mm)-2.4
Tooth width b (mm)170 mm
Tooth force, standard (kN)354.8 kN
Tooth force, maximum (kN)709.6 kN
Basic static axial load rating C0a (kN)66,450 kN
Basic dynamic axial load rating Ca (kN)5,884 kN
Bearing typeROD 40 DA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingRKD04200outside diameter 4531.2 mm, inside diameter 3942 mm, height 221 mm →Liebherr · Slewing ring bearingRKD04500outside diameter 4776 mm, inside diameter 4276 mm, height 183 mm →Liebherr · Slewing ring bearingRKD04750outside diameter 5000 mm, inside diameter 4542 mm, height 175 mm →Liebherr · Slewing ring bearingRKD05000outside diameter 5276 mm, inside diameter 4776 mm, height 183 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for ROD04500?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For ROD04500, provide the complete reference and suffix, confirm outside diameter 4867.2 mm, inside diameter 4262 mm, height 220 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
