RKD05000
slewing ring bearing

RKD05000 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 5276 mm, inside diameter 4776 mm, height 183 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL RKD05000

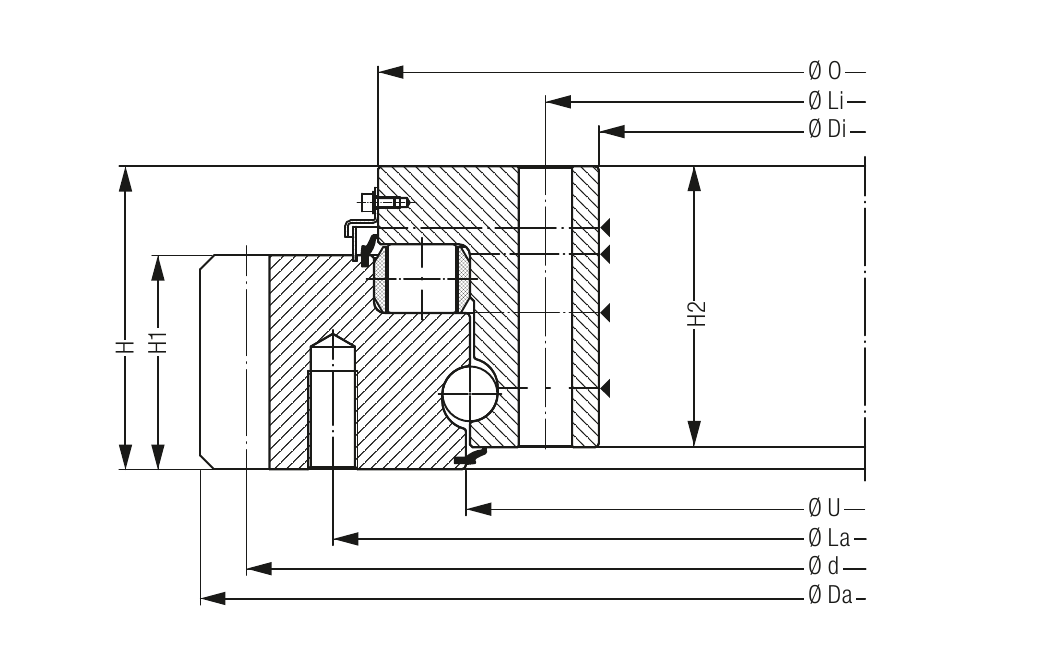

Liebherr catalogue section reference for RKD05000

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

RKD05000
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelRKD05000
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)4,082 kg
Outside diameter Da (mm)5,276 mm
Inside diameter di (mm)4,776 mm
Ring height H (mm)183 mm
Outer reference ØO (mm)5,056 mm
Inner reference ØU (mm)4,950 mm
Outer ring height H1 (mm)133 mm
Inner ring height H2 (mm)167 mm
Outer mounting length La (mm)5,112 mm
Inner mounting length Li (mm)4,848 mm
Mounting hole count80
Mounting hole diameter (mm)33 mm
Hole pitch diameter d (mm)5,220 mm
Gear module20
Gear tooth count261
Tooth correction16
Gear tip reduction k·m (mm)-2
Tooth width b (mm)133 mm
Tooth force, standard (kN)231.3 kN
Tooth force, maximum (kN)462.6 kN
Basic static axial load rating C0a (kN)73,833 kN
Basic dynamic axial load rating Ca (kN)6,220 kN
Bearing typeRKD 40 ZA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingRKD05300outside diameter 5576 mm, inside diameter 5076 mm, height 183 mm →Liebherr · Slewing ring bearingRKD04750outside diameter 5000 mm, inside diameter 4542 mm, height 175 mm →Liebherr · Slewing ring bearingRKD04500outside diameter 4776 mm, inside diameter 4276 mm, height 183 mm →Liebherr · Slewing ring bearingROD04500outside diameter 4867.2 mm, inside diameter 4262 mm, height 220 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for RKD05000?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For RKD05000, provide the complete reference and suffix, confirm outside diameter 5276 mm, inside diameter 4776 mm, height 183 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
