PRIUS BEARINGS · SLEWING RING BEARING

RKD04200
slewing ring bearing

RKD04200 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 4531.2 mm, inside diameter 3942 mm, height 221 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL RKD04200

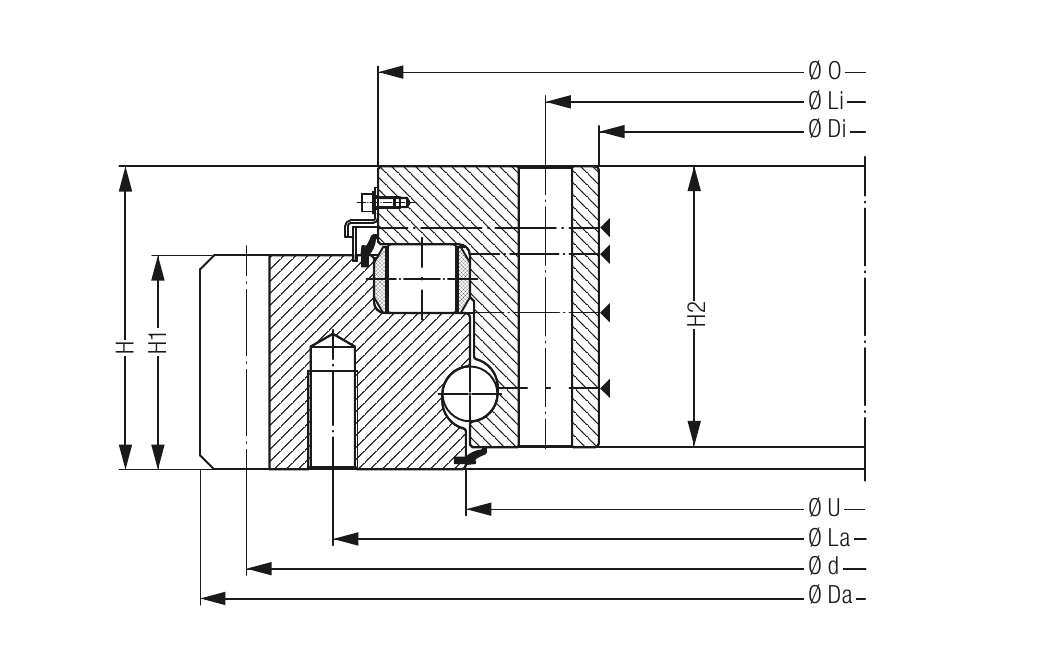

Liebherr catalogue section reference for RKD04200

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

RKD04200
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelRKD04200
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)4,798 kg
Outside diameter Da (mm)4,531.2 mm
Inside diameter di (mm)3,942 mm
Ring height H (mm)221 mm
Outer reference ØO (mm)4,268 mm
Inner reference ØU (mm)4,140 mm
Outer ring height H1 (mm)156 mm
Inner ring height H2 (mm)205 mm
Outer mounting length La (mm)4,330 mm
Inner mounting length Li (mm)4,020 mm
Mounting hole count72
Mounting hole diameter (mm)36 mm
Hole pitch diameter d (mm)4,464 mm
Gear module24
Gear tooth count286
Tooth correction12
Gear tip reduction k·m (mm)-2.4
Tooth width b (mm)156 mm
Tooth force, standard (kN)325.5 kN
Tooth force, maximum (kN)651 kN
Basic static axial load rating C0a (kN)77,572 kN
Basic dynamic axial load rating Ca (kN)7,627 kN
Bearing typeRKD 50 ZA external gear
Confirm dimensions & request a quote →
