PRIUS BEARINGS · SLEWING RING BEARING

ROD03762
slewing ring bearing

ROD03762 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 4000 mm, inside diameter 3424 mm, height 220 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD03762

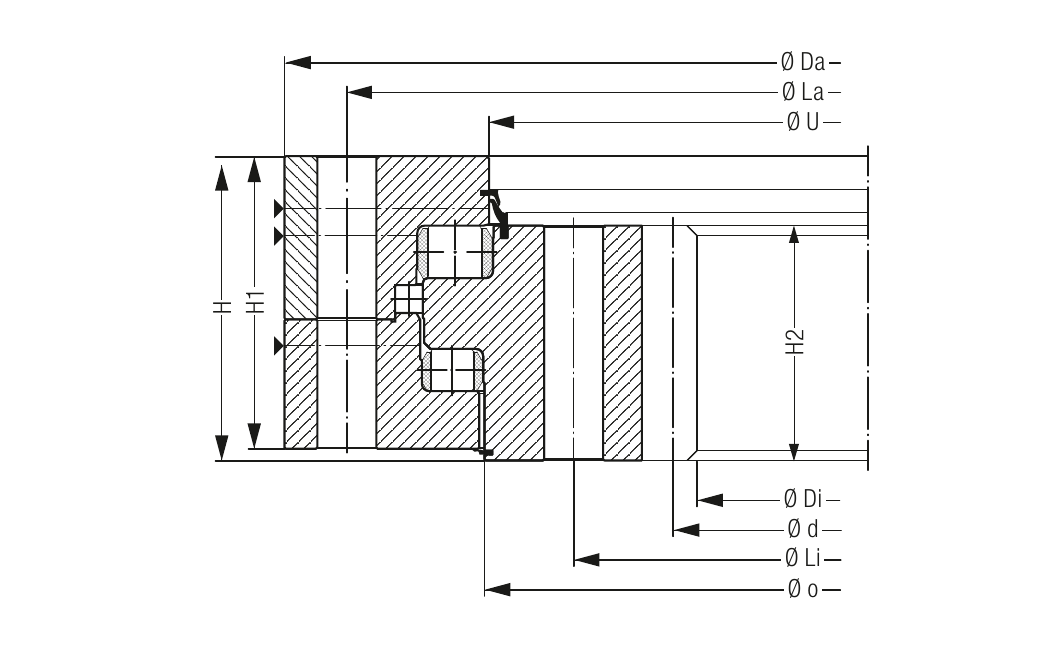

Liebherr catalogue section reference for ROD03762

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

ROD03762
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelROD03762
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)4,200 kg
Outside diameter Da (mm)4,000 mm
Inside diameter di (mm)3,424 mm
Ring height H (mm)220 mm
Outer reference ØO (mm)3,718 mm
Inner reference ØU (mm)3,700 mm
Outer ring height H1 (mm)205 mm
Inner ring height H2 (mm)180 mm
Outer mounting length La (mm)3,916 mm
Inner mounting length Li (mm)3,612 mm
Mounting hole count120
Mounting hole diameter (mm)36 mm
Hole pitch diameter d (mm)3,440 mm
Gear module20
Gear tooth count-172
Tooth correction-10
Gear tip reduction k·m (mm)-2
Tooth width b (mm)180 mm
Tooth force, standard (kN)313 kN
Tooth force, maximum (kN)626 kN
Basic static axial load rating C0a (kN)76,108 kN
Basic dynamic axial load rating Ca (kN)6,048 kN
Bearing typeROD 32 DJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD03739outside diameter 3905 mm, inside diameter 3420 mm, height 185 mm →Liebherr · Slewing ring bearingKUD03839outside diameter 4005 mm, inside diameter 3520 mm, height 185 mm →Liebherr · Slewing ring bearingKUD03567outside diameter 3866.4 mm, inside diameter 3400 mm, height 185 mm →Liebherr · Slewing ring bearingKUD03747outside diameter 4046.4 mm, inside diameter 3580 mm, height 185 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for ROD03762?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For ROD03762, provide the complete reference and suffix, confirm outside diameter 4000 mm, inside diameter 3424 mm, height 220 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
