PRIUS BEARINGS · SLEWING RING BEARING

ROD02260
slewing ring bearing

ROD02260 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2560 mm, inside diameter 2046 mm, height 178 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD02260

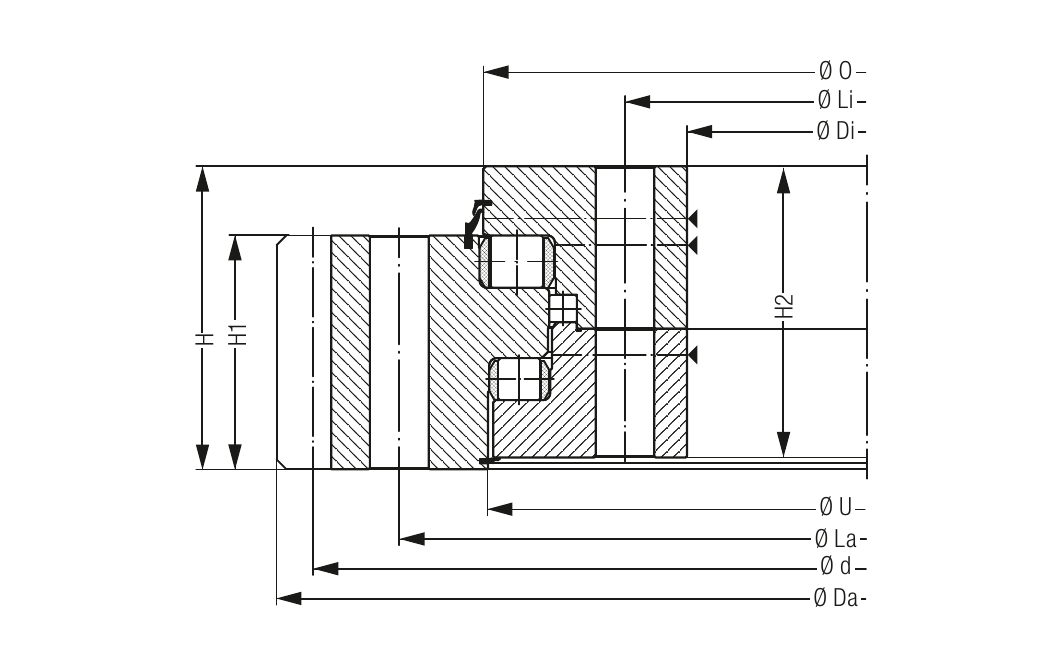

Liebherr catalogue section reference for ROD02260

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

ROD02260
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelROD02260
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,760 kg
Outside diameter Da (mm)2,560 mm
Inside diameter di (mm)2,046 mm
Ring height H (mm)178 mm
Outer reference ØO (mm)2,309 mm
Inner reference ØU (mm)2,290 mm
Outer ring height H1 (mm)142 mm
Inner ring height H2 (mm)156 mm
Outer mounting length La (mm)2,404 mm
Inner mounting length Li (mm)2,130 mm
Mounting hole count80
Mounting hole diameter (mm)33 mm
Hole pitch diameter d (mm)2,528 mm
Gear module16
Gear tooth count158
Tooth correction-
Gear tip reduction k·m (mm)-
Tooth width b (mm)142 mm
Tooth force, standard (kN)209 kN
Tooth force, maximum (kN)417 kN
Basic static axial load rating C0a (kN)34,466 kN
Basic dynamic axial load rating Ca (kN)3,313 kN
Bearing typeROD 26 DA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02306outside diameter 2485 mm, inside diameter 2060.8 mm, height 184 mm →Liebherr · Slewing ring bearingKUD02356outside diameter 2520 mm, inside diameter 2116.8 mm, height 170 mm →Liebherr · Slewing ring bearingKUD02406outside diameter 2585 mm, inside diameter 2158.8 mm, height 184 mm →Liebherr · Slewing ring bearingKUD02297outside diameter 2476 mm, inside diameter 2115 mm, height 184 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for ROD02260?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For ROD02260, provide the complete reference and suffix, confirm outside diameter 2560 mm, inside diameter 2046 mm, height 178 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
