Slewing Rings/PRIUS BEARINGS/KUD02406← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KUD02406
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02406

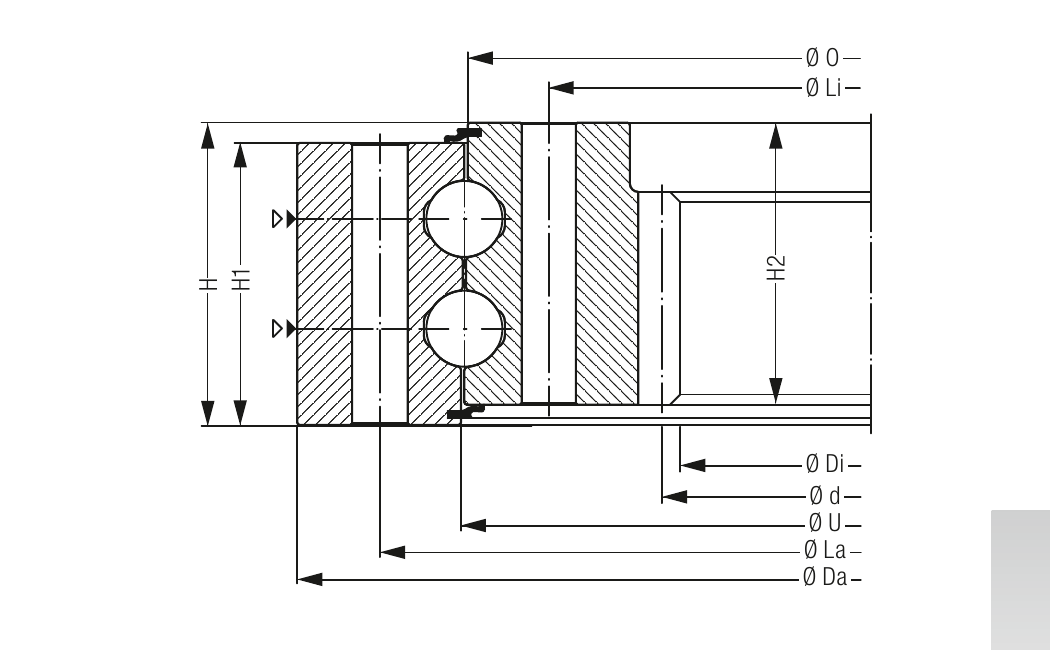

PRIUS BEARINGS KUD02406 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

KUD02406
parameters

Key dimensions and load information for preliminary selection.

ModelKUD02406
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,760 kg
Outside diameter Da (mm)2,585 mm
Inside diameter di (mm)2,158.8 mm
Ring height H (mm)184 mm
Outer reference ØO (mm)2,404 mm
Inner reference ØU (mm)2,408 mm
Outer ring height H1 (mm)172 mm
Inner ring height H2 (mm)172 mm
Outer mounting length La (mm)2,513 mm
Inner mounting length Li (mm)2,296 mm
Mounting hole count68
Bolt diameter (mm)33 mm
Hole pitch diameter d (mm)2,170 mm
Gear module14
Gear tooth count-155
Tooth correction-7
Tip Reduction-1.4
Tooth width b (mm)140 mm
Tooth force, standard (kN)170.4 kN
Tooth force, maximum (kN)340.9 kN
Basic static axial load rating C0a (kN)34,907 kN
Basic dynamic axial load rating Ca (kN)2,115 kN
Bearing typeKUD 50 WJ internal gear
Confirm dimensions & request a quote →
