Slewing Rings/Liebherr references/KUD02306← View all models

PRIUS BEARINGS · SLEWING RING BEARING

KUD02306
slewing ring bearing

KUD02306 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2485 mm, inside diameter 2060.8 mm, height 184 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02306

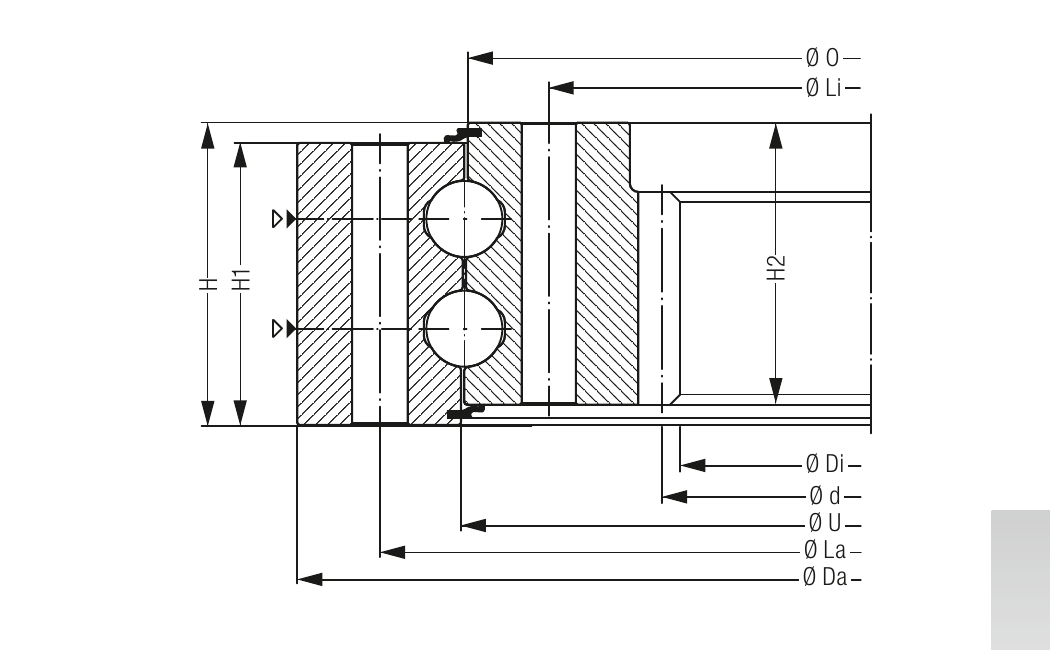

Liebherr catalogue section reference for KUD02306

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02306
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02306
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,683 kg
Outside diameter Da (mm)2,485 mm
Inside diameter di (mm)2,060.8 mm
Ring height H (mm)184 mm
Outer reference ØO (mm)2,304 mm
Inner reference ØU (mm)2,308 mm
Outer ring height H1 (mm)172 mm
Inner ring height H2 (mm)172 mm
Outer mounting length La (mm)2,413 mm
Inner mounting length Li (mm)2,196 mm
Mounting hole count64
Mounting hole diameter (mm)33 mm
Hole pitch diameter d (mm)2,072 mm
Gear module14
Gear tooth count-148
Tooth correction-7
Gear tip reduction k·m (mm)-1.4
Tooth width b (mm)140 mm
Tooth force, standard (kN)170.4 kN
Tooth force, maximum (kN)340.9 kN
Basic static axial load rating C0a (kN)33,389 kN
Basic dynamic axial load rating Ca (kN)2,080 kN
Bearing typeKUD 50 WJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02297outside diameter 2476 mm, inside diameter 2115 mm, height 184 mm →Liebherr · Slewing ring bearingROD02260outside diameter 2560 mm, inside diameter 2046 mm, height 178 mm →Liebherr · Slewing ring bearingKUD02406outside diameter 2585 mm, inside diameter 2158.8 mm, height 184 mm →Liebherr · Slewing ring bearingKUD02397outside diameter 2576 mm, inside diameter 2215 mm, height 184 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02306?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02306, provide the complete reference and suffix, confirm outside diameter 2485 mm, inside diameter 2060.8 mm, height 184 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
