PRIUS BEARINGS · SLEWING RING BEARING

ROD02025
slewing ring bearing

ROD02025 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2247 mm, inside diameter 1882 mm, height 104 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD02025

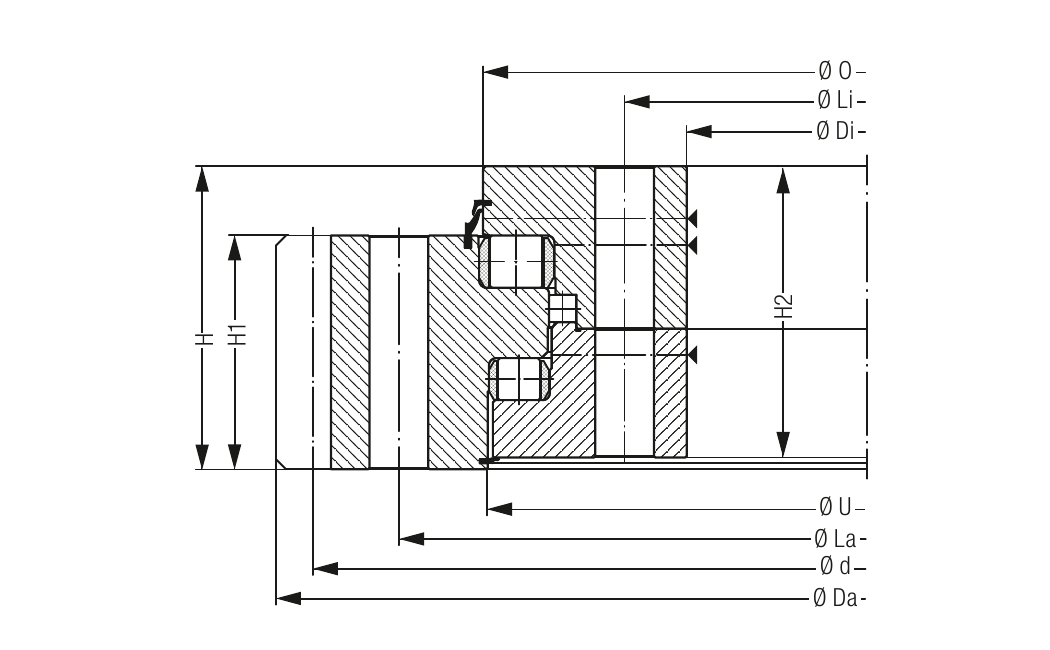

Liebherr catalogue section reference for ROD02025

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

ROD02025
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelROD02025
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)662 kg
Outside diameter Da (mm)2,247.0 mm
Inside diameter di (mm)1,882 mm
Ring height H (mm)104 mm
Outer reference ØO (mm)2,057 mm
Inner reference ØU (mm)2,056 mm
Outer ring height H1 (mm)82 mm
Inner ring height H2 (mm)97 mm
Outer mounting length La (mm)2,133 mm
Inner mounting length Li (mm)1,939 mm
Mounting hole count96
Mounting hole diameter (mm)24 mm
Hole pitch diameter d (mm)2,212 mm
Gear module14
Gear tooth count158
Tooth correction7.0
Gear tip reduction k·m (mm)-1.4
Tooth width b (mm)77 mm
Tooth force, standard (kN)104 kN
Tooth force, maximum (kN)208 kN
Basic static axial load rating C0a (kN)17,560 kN
Basic dynamic axial load rating Ca (kN)1,490 kN
Bearing typeROD 15 DA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02000outside diameter 2209.2 mm, inside diameter 1855 mm, height 104 mm →Liebherr · Slewing ring bearingKUD02100outside diameter 2307.2 mm, inside diameter 1955 mm, height 104 mm →Liebherr · Slewing ring bearingROD02053outside diameter 2261.7 mm, inside diameter 1900 mm, height 114 mm →Liebherr · Slewing ring bearingROD01972outside diameter 2176.2 mm, inside diameter 1816 mm, height 109 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for ROD02025?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For ROD02025, provide the complete reference and suffix, confirm outside diameter 2247 mm, inside diameter 1882 mm, height 104 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
