Slewing Rings/PRIUS BEARINGS/ROD01972← View all models

PRIUS BEARINGS · SLEWING RING BEARING

ROD01972
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD01972

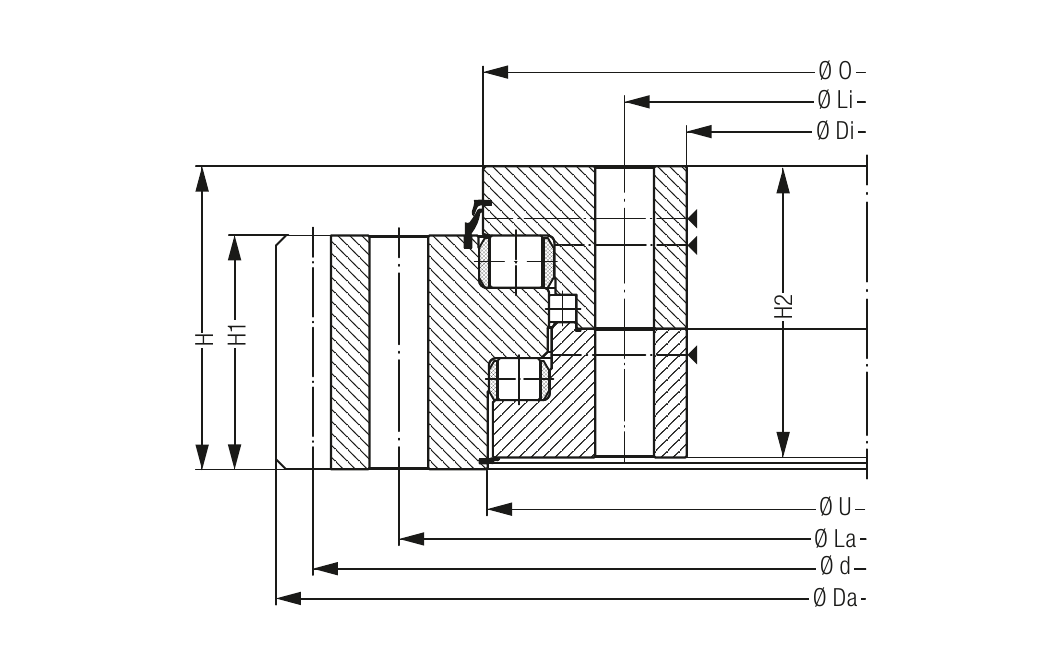

PRIUS BEARINGS ROD01972 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

ROD01972
parameters

Key dimensions and load information for preliminary selection.

ModelROD01972
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)704 kg
Outside diameter Da (mm)2,176.2 mm
Inside diameter di (mm)1,816 mm
Ring height H (mm)109 mm
Outer reference ØO (mm)2,013 mm
Inner reference ØU (mm)1,993 mm
Outer ring height H1 (mm)88 mm
Inner ring height H2 (mm)104 mm
Outer mounting length La (mm)2,084 mm
Inner mounting length Li (mm)1,870 mm
Mounting hole count108
Bolt diameter (mm)22 mm
Hole pitch diameter d (mm)2,151 mm
Gear module9
Gear tooth count239
Tooth correction4.5
Tip Reduction-0.9
Tooth width b (mm)88 mm
Tooth force, standard (kN)77 kN
Tooth force, maximum (kN)153 kN
Basic static axial load rating C0a (kN)20,446 kN
Basic dynamic axial load rating Ca (kN)1,369 kN
Bearing typeROD 18 DA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
