KUD02950
slewing ring bearing

KUD02950 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 3100 mm, inside diameter 2646 mm, height 156 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02950

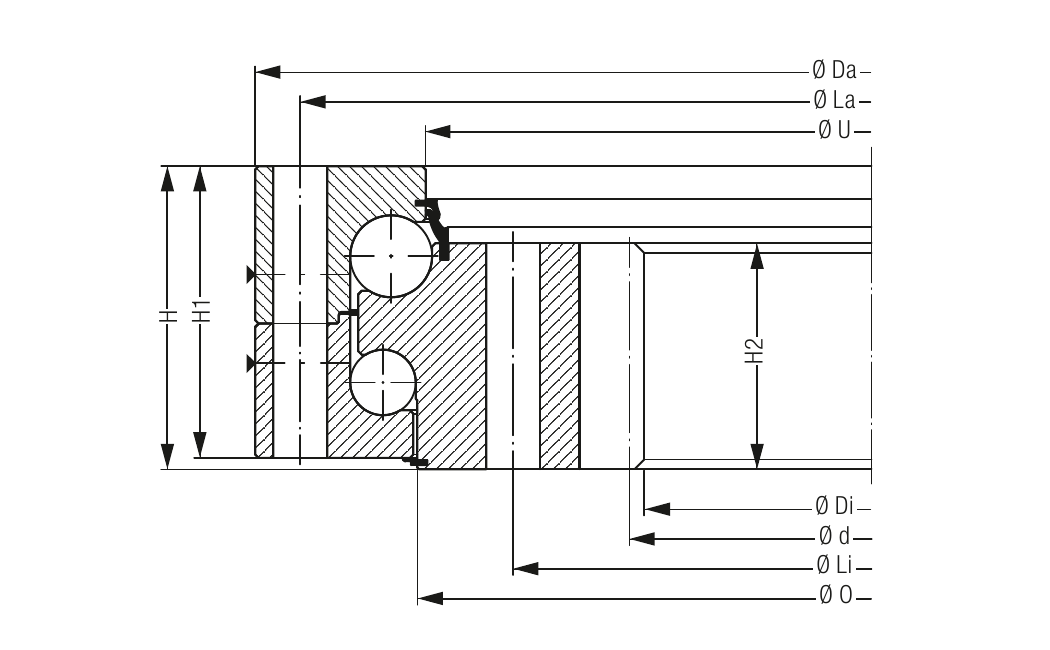

Liebherr catalogue section reference for KUD02950

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02950
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02950
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,764 kg
Outside diameter Da (mm)3,100 mm
Inside diameter di (mm)2,646 mm
Ring height H (mm)156 mm
Outer reference ØO (mm)2,918 mm
Inner reference ØU (mm)2,915 mm
Outer ring height H1 (mm)150 mm
Inner ring height H2 (mm)117 mm
Outer mounting length La (mm)3,045 mm
Inner mounting length Li (mm)2,815 mm
Mounting hole count60
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)2,664 mm
Gear module18
Gear tooth count-148
Tooth correction-9
Tooth width b (mm)117 mm
Tooth force, standard (kN)183.1 kN
Tooth force, maximum (kN)366.2 kN
Basic static axial load rating C0a (kN)23,116 kN
Basic dynamic axial load rating Ca (kN)1,363 kN
Bearing typeKUD 40 ZJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingROD02800outside diameter 3096 mm, inside diameter 2619 mm, height 147 mm →Liebherr · Slewing ring bearingKUD02795outside diameter 3216 mm, inside diameter 2765 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02619outside diameter 2912.4 mm, inside diameter 2465 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02915outside diameter 3456 mm, inside diameter 3000 mm, height 156 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02950?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02950, provide the complete reference and suffix, confirm outside diameter 3100 mm, inside diameter 2646 mm, height 156 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
