PRIUS BEARINGS · SLEWING RING BEARING

KUD02915
slewing ring bearing

KUD02915 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 3456 mm, inside diameter 3000 mm, height 156 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02915

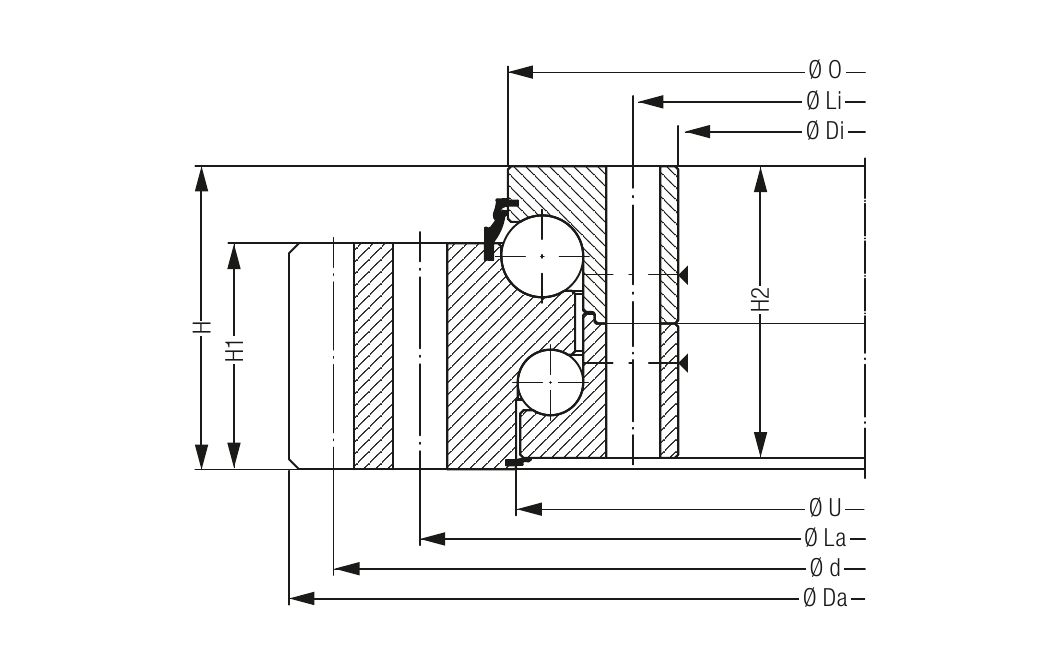

Liebherr catalogue section reference for KUD02915

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02915
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02915
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,969 kg
Outside diameter Da (mm)3,456 mm
Inside diameter di (mm)3,000 mm
Ring height H (mm)156 mm
Outer reference ØO (mm)3,185 mm
Inner reference ØU (mm)3,182 mm
Outer ring height H1 (mm)117 mm
Inner ring height H2 (mm)150 mm
Outer mounting length La (mm)3,285 mm
Inner mounting length Li (mm)3,055 mm
Mounting hole count60
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)3,400 mm
Gear module20
Gear tooth count170
Tooth correction10
Gear tip reduction k·m (mm)-2.0
Tooth width b (mm)117 mm
Tooth force, standard (kN)203.4 kN
Tooth force, maximum (kN)406.8 kN
Basic static axial load rating C0a (kN)24,642 kN
Basic dynamic axial load rating Ca (kN)1,394 kN
Bearing typeKUD 40 ZA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD03150outside diameter 3450 mm, inside diameter 3006 mm, height 156 mm →Liebherr · Slewing ring bearingKUD03300outside diameter 3450 mm, inside diameter 3006 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02795outside diameter 3216 mm, inside diameter 2765 mm, height 156 mm →Liebherr · Slewing ring bearingKUD03167outside diameter 3470.4 mm, inside diameter 3000 mm, height 185 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02915?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02915, provide the complete reference and suffix, confirm outside diameter 3456 mm, inside diameter 3000 mm, height 156 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
