PRIUS BEARINGS · SLEWING RING BEARING

KUD03167
slewing ring bearing

KUD03167 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 3470.4 mm, inside diameter 3000 mm, height 185 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD03167

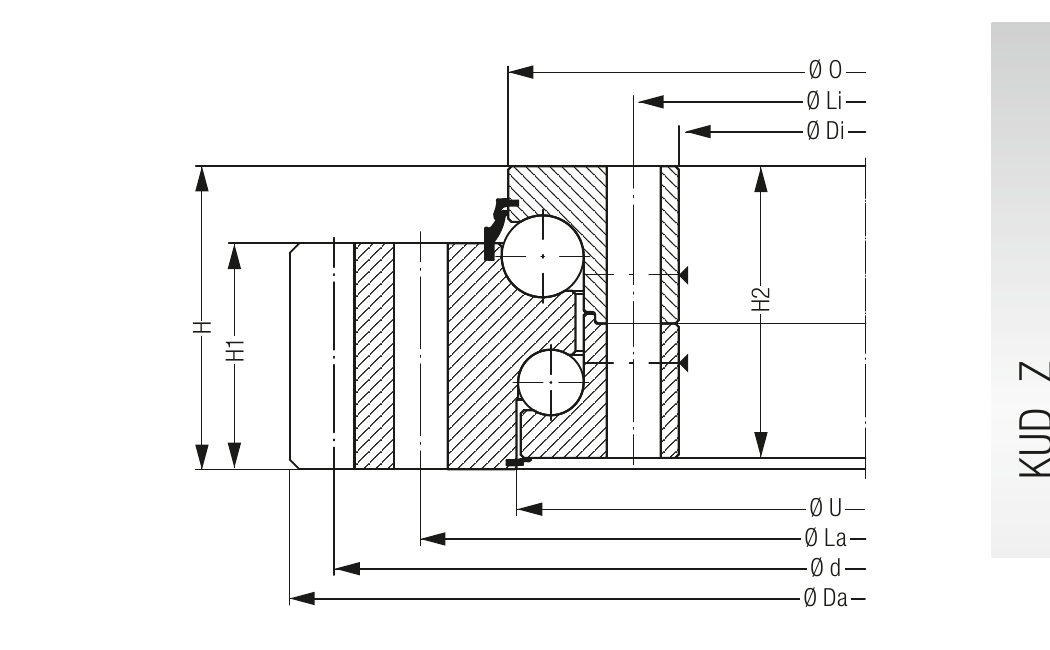

Liebherr catalogue section reference for KUD03167

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD03167
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD03167
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)2,431 kg
Outside diameter Da (mm)3,470.4 mm
Inside diameter di (mm)3,000 mm
Ring height H (mm)185 mm
Outer reference ØO (mm)3,209 mm
Inner reference ØU (mm)3,199 mm
Outer ring height H1 (mm)138 mm
Inner ring height H2 (mm)178 mm
Outer mounting length La (mm)3,310 mm
Inner mounting length Li (mm)3,060 mm
Mounting hole count66
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)3,420 mm
Gear module18
Gear tooth count190
Tooth correction9
Gear tip reduction k·m (mm)-1.8
Tooth width b (mm)138 mm
Tooth force, standard (kN)216 kN
Tooth force, maximum (kN)432 kN
Basic static axial load rating C0a (kN)31,008 kN
Basic dynamic axial load rating Ca (kN)1,761 kN
Bearing typeKUD 50 ZA external gear
Confirm dimensions & request a quote →
