PRIUS BEARINGS · SLEWING RING BEARING

KUD02619
slewing ring bearing

KUD02619 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2912.4 mm, inside diameter 2465 mm, height 156 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02619

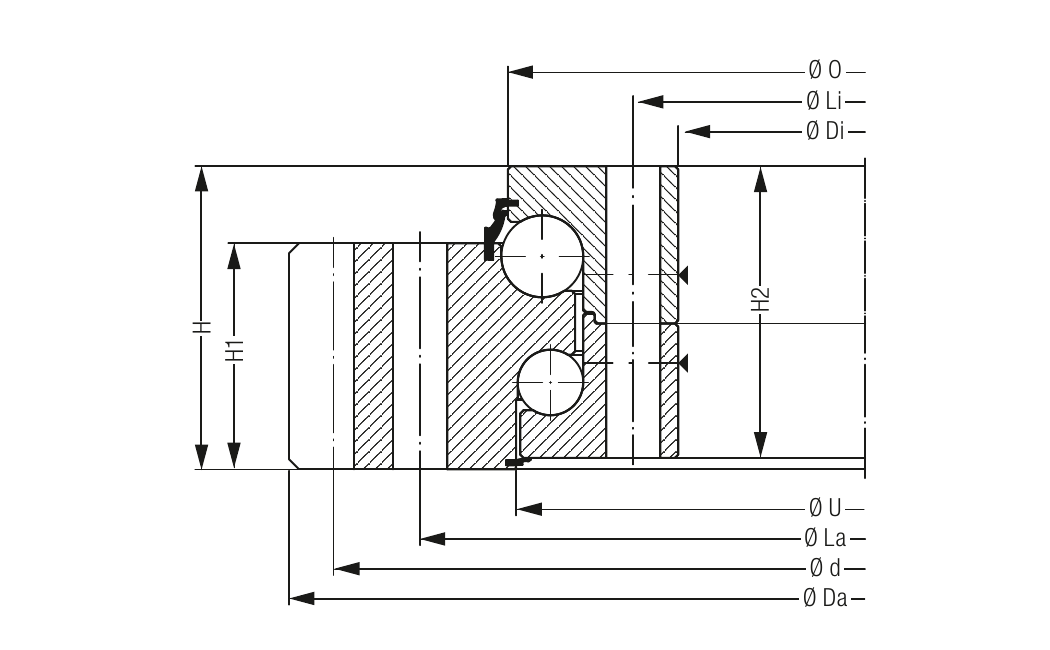

Liebherr catalogue section reference for KUD02619

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02619
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02619
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,615 kg
Outside diameter Da (mm)2,912.4 mm
Inside diameter di (mm)2,465 mm
Ring height H (mm)156 mm
Outer reference ØO (mm)2,654 mm
Inner reference ØU (mm)2,651 mm
Outer ring height H1 (mm)117 mm
Inner ring height H2 (mm)150 mm
Outer mounting length La (mm)2,755 mm
Inner mounting length Li (mm)2,520 mm
Mounting hole count52
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)2,862 mm
Gear module18
Gear tooth count159
Tooth correction9
Gear tip reduction k·m (mm)-1.8
Tooth width b (mm)117 mm
Tooth force, standard (kN)183.1 kN
Tooth force, maximum (kN)366.2 kN
Basic static axial load rating C0a (kN)20,499 kN
Basic dynamic axial load rating Ca (kN)1,303 kN
Bearing typeKUD 40 ZA external gear
Confirm dimensions & request a quote →
