PRIUS BEARINGS · SLEWING RING BEARING

KUD02690
slewing ring bearing

KUD02690 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2820 mm, inside diameter 2432 mm, height 138 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02690

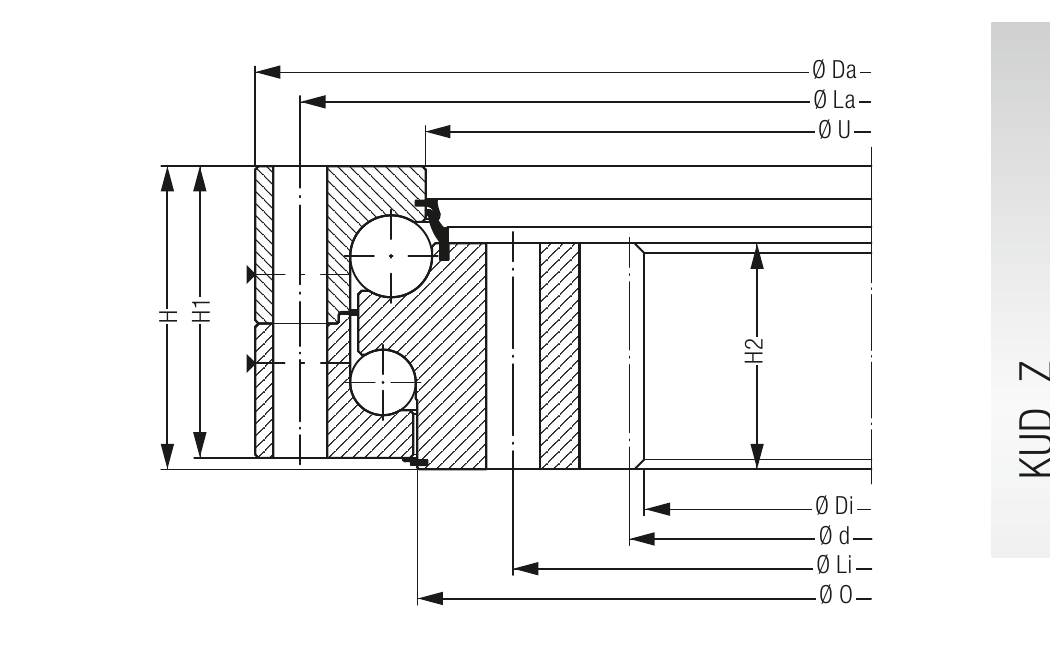

Liebherr catalogue section reference for KUD02690

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02690
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02690
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,225 kg
Outside diameter Da (mm)2,820 mm
Inside diameter di (mm)2,432 mm
Ring height H (mm)138 mm
Outer reference ØO (mm)2,661 mm
Inner reference ØU (mm)2,656 mm
Outer ring height H1 (mm)132 mm
Inner ring height H2 (mm)104 mm
Outer mounting length La (mm)2,775 mm
Inner mounting length Li (mm)2,580 mm
Mounting hole count72
Mounting hole diameter (mm)24 mm
Hole pitch diameter d (mm)2,448 mm
Gear module16
Gear tooth count-153
Tooth correction-8
Tooth width b (mm)104 mm
Tooth force, standard (kN)152.7 kN
Tooth force, maximum (kN)305.4 kN
Basic static axial load rating C0a (kN)18,449 kN
Basic dynamic axial load rating Ca (kN)1,148 kN
Bearing typeKUD 35 ZJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02620outside diameter 2876.8 mm, inside diameter 2490 mm, height 138 mm →Liebherr · Slewing ring bearingKUD02619outside diameter 2912.4 mm, inside diameter 2465 mm, height 156 mm →Liebherr · Slewing ring bearingKUD02500outside diameter 2741.2 mm, inside diameter 2324 mm, height 124 mm →Liebherr · Slewing ring bearingKUD02622outside diameter 2770 mm, inside diameter 2336 mm, height 156 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02690?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02690, provide the complete reference and suffix, confirm outside diameter 2820 mm, inside diameter 2432 mm, height 138 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
