PRIUS BEARINGS · SLEWING RING BEARING

KUD02559
slewing ring bearing

KUD02559 is listed as a Liebherr catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2725 mm, inside diameter 2250 mm, height 185 mm. Send the complete model suffix, mounting details and operating loads for review.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL KUD02559

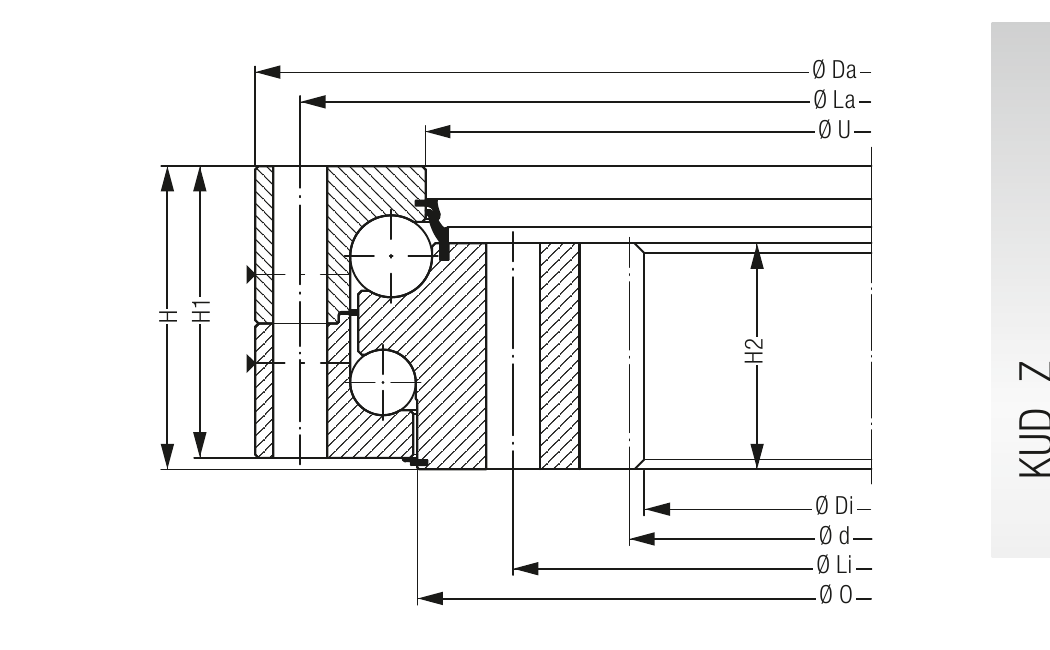

Liebherr catalogue section reference for KUD02559

Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.

ENGINEERING DATA

KUD02559
parameters

Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.

ModelKUD02559
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)1,892 kg
Outside diameter Da (mm)2,725 mm
Inside diameter di (mm)2,250 mm
Ring height H (mm)185 mm
Outer reference ØO (mm)2,524 mm
Inner reference ØU (mm)2,522 mm
Outer ring height H1 (mm)178 mm
Inner ring height H2 (mm)138 mm
Outer mounting length La (mm)2,670 mm
Inner mounting length Li (mm)2,410 mm
Mounting hole count60
Mounting hole diameter (mm)30 mm
Hole pitch diameter d (mm)2,268 mm
Gear module18
Gear tooth count-126
Tooth correction-9
Tooth width b (mm)138 mm
Tooth force, standard (kN)216 kN
Tooth force, maximum (kN)432 kN
Basic static axial load rating C0a (kN)25,046 kN
Basic dynamic axial load rating Ca (kN)1,628 kN
Bearing typeKUD 50 ZJ internal gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.

Liebherr · Slewing ring bearingKUD02506outside diameter 2685 mm, inside diameter 2256.8 mm, height 184 mm →Liebherr · Slewing ring bearingKUD02497outside diameter 2676 mm, inside diameter 2315 mm, height 184 mm →Liebherr · Slewing ring bearingKUD02397outside diameter 2576 mm, inside diameter 2215 mm, height 184 mm →Liebherr · Slewing ring bearingKUD02406outside diameter 2585 mm, inside diameter 2158.8 mm, height 184 mm →

FREQUENT QUESTIONS

Can PRIUS review an alternative for KUD02559?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

For KUD02559, provide the complete reference and suffix, confirm outside diameter 2725 mm, inside diameter 2250 mm, height 185 mm, and include gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
