KG Series · Type A · Open · Angular contact
KG350AR0
thin section bearing
Open angular contact thin section bearing for precision motion and compact assemblies.

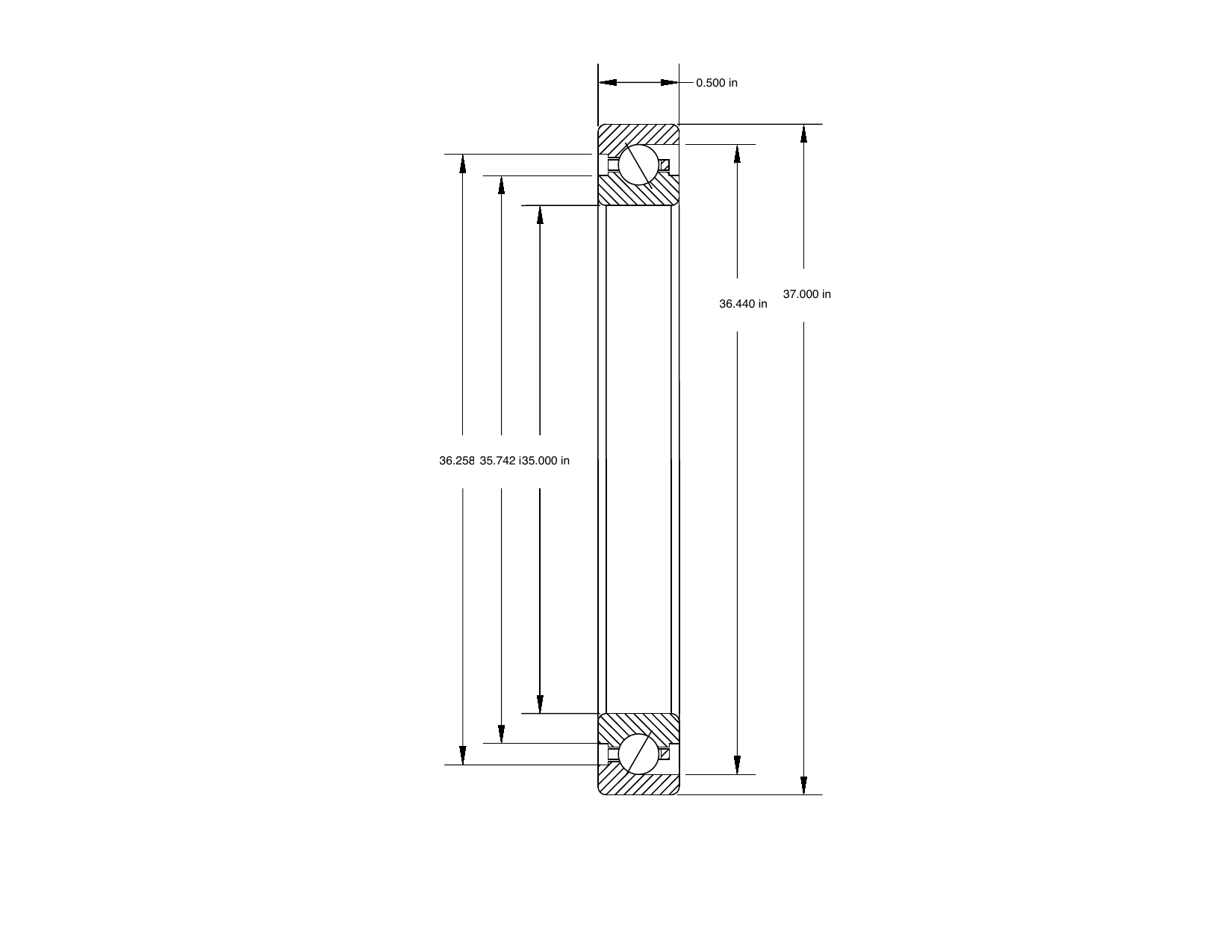

OPEN / KG350AR0PRIUS BEARINGSMECHANICAL DRAWING · KG350AR0UNITS: inch · SCALE: NTS
PART NUMBERKG350AR0
BORE / d35.000 in
O.D. / D37.000 in
WIDTH / B0.500 in
L1 / L2 / L335.742 in / 36.258 in / 36.440 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD17,982
STATIC RADIAL LOAD68,240
DYNAMIC THRUST LOAD50,840
STATIC THRUST LOAD197,000
WEIGHT0.26 lb
TECHNICAL DATA
Specification
at a glance.
Bore35.000 in
Outside diameter37.000 in
Radial section0.500 in
L1 land diameter35.742 in
L2 land diameter36.258 in
L3 counterbore36.440 in
Dynamic radial capacity17,982
Dynamic thrust capacity50,840
Static radial capacity68,240
Static thrust capacity197,000
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.26 lb
INDEPENDENT ALTERNATIVE MANUFACTURER
Need a direct replacement
for KG350AR0?
Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.
