Thin Section Bearings/KG Series/KG220AR0

KG Series · Type A · Open · Angular contact

KG220AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models

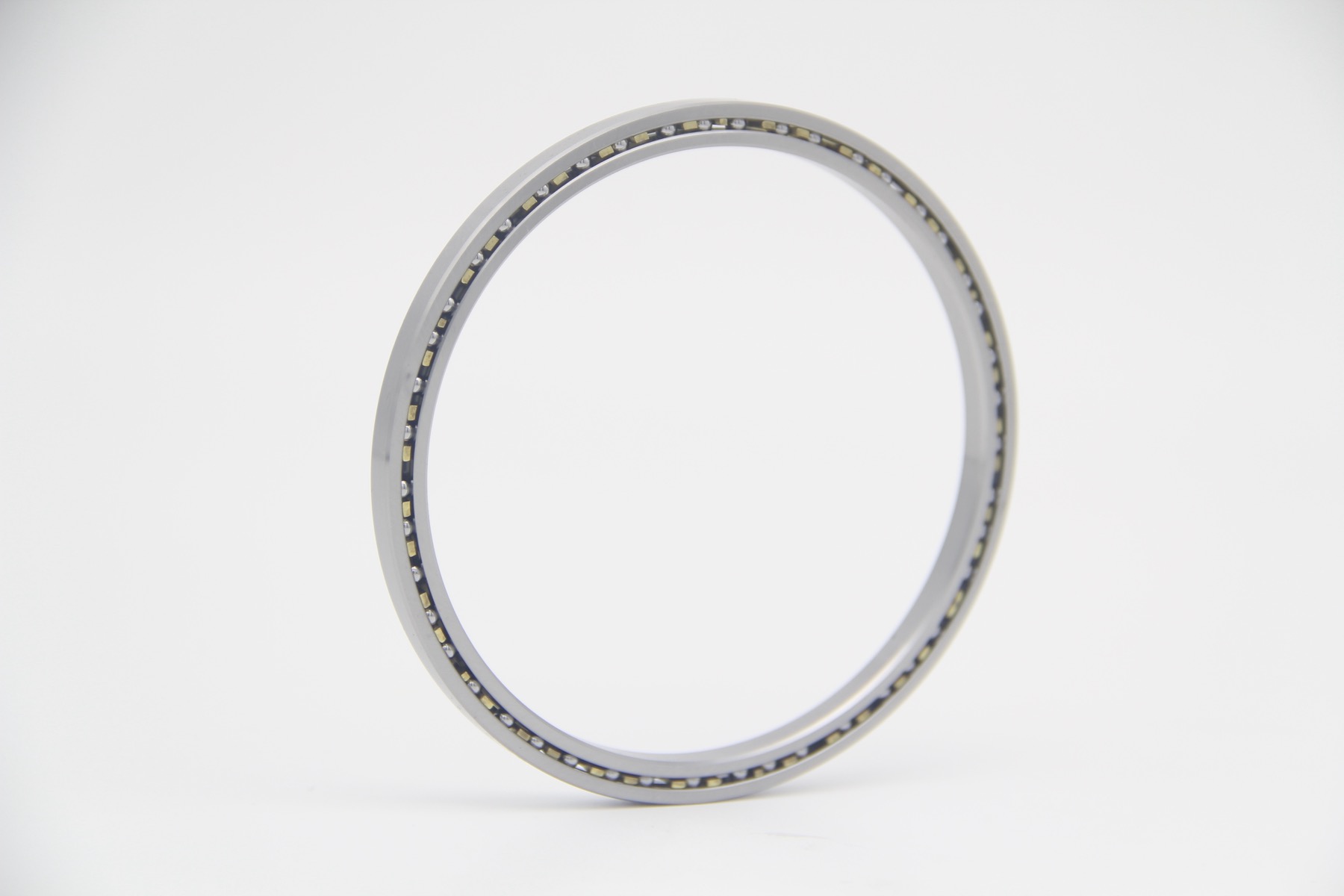

PRIUS BEARINGS KG220AR0 open thin section bearingOPEN / KG220AR0

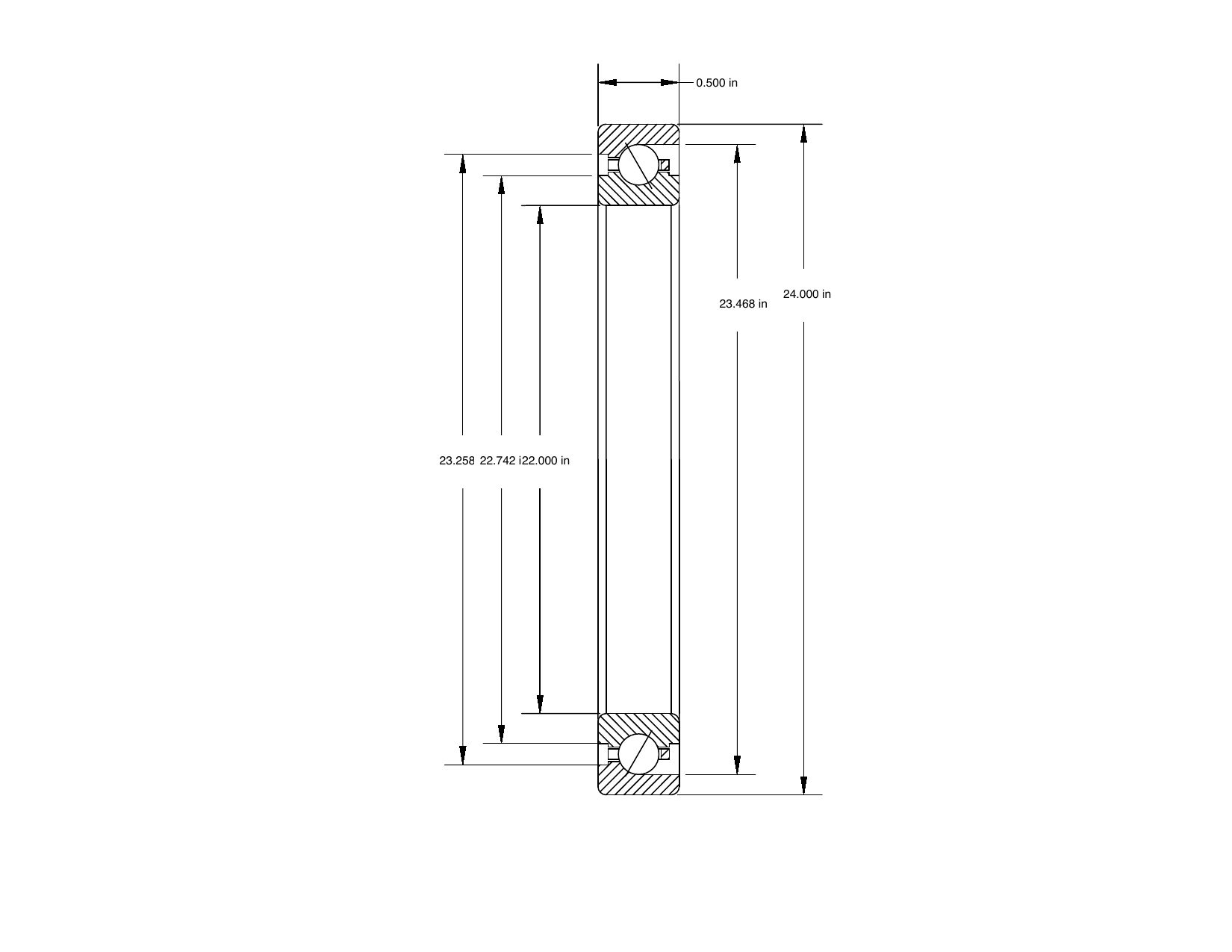

PRIUS BEARINGSMECHANICAL DRAWING · KG220AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KG220AR0 dimensioned mechanical drawing
PART NUMBERKG220AR0
BORE / d22.000 in
O.D. / D24.000 in
WIDTH / B0.500 in
L1 / L2 / L322.742 in / 23.258 in / 23.468 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD14,290
STATIC RADIAL LOAD43,598
DYNAMIC THRUST LOAD37,712
STATIC THRUST LOAD125,856
WEIGHT0.16 lb

TECHNICAL DATA

Specification
at a glance.

Bore22.000 in
Outside diameter24.000 in
Radial section0.500 in
L1 land diameter22.742 in
L2 land diameter23.258 in
L3 counterbore23.468 in
Dynamic radial capacity14,290
Dynamic thrust capacity37,712
Static radial capacity43,598
Static thrust capacity125,856
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.16 lb
