Thin Section Bearings/KC Series/KC100AR0

KC Series · Type A · Open · Angular contact

KC100AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KC100AR0 open thin section bearingOPEN / KC100AR0

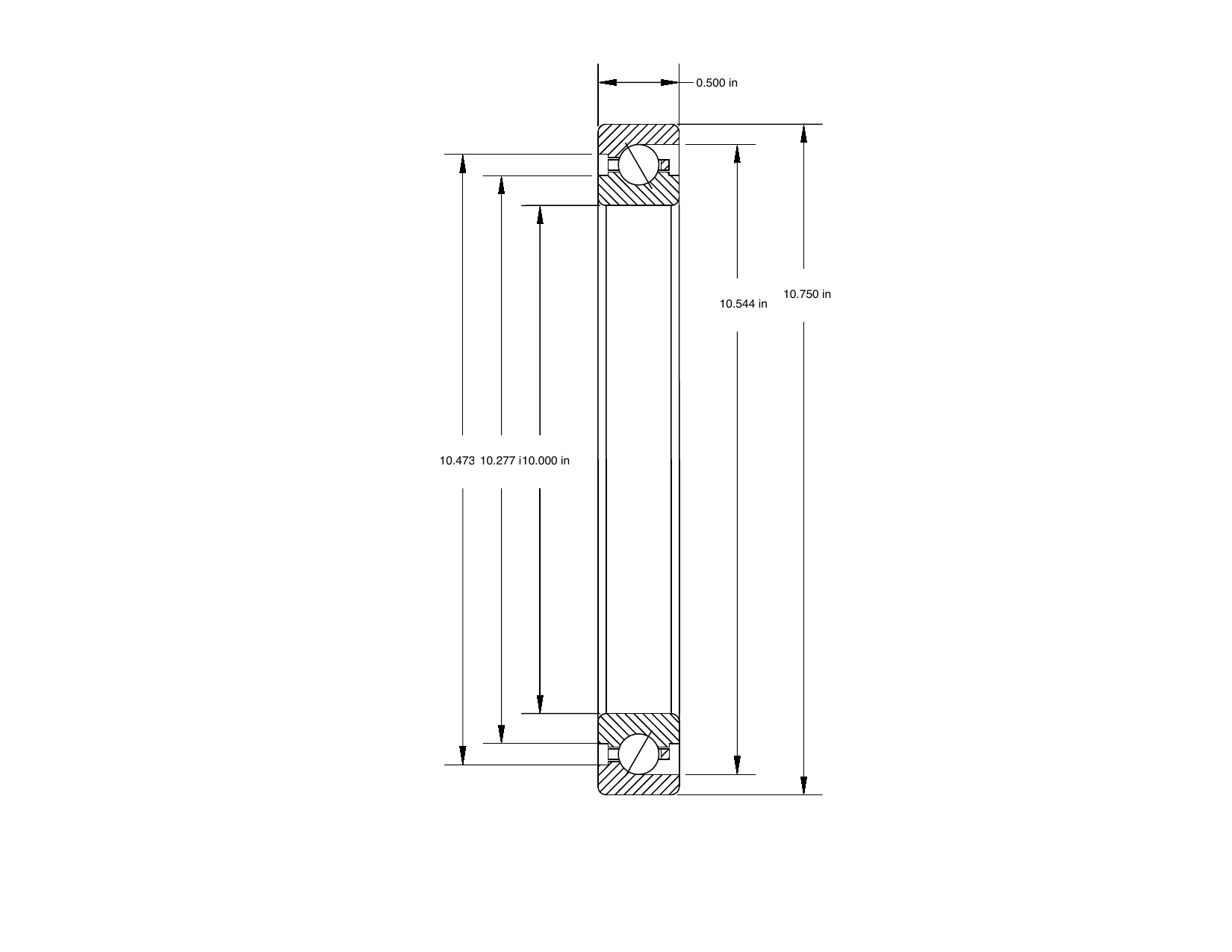

PRIUS BEARINGSMECHANICAL DRAWING · KC100AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KC100AR0 dimensioned mechanical drawing
PART NUMBERKC100AR0
BORE / d10.000 in
O.D. / D10.750 in
WIDTH / B0.500 in
L1 / L2 / L310.277 in / 10.473 in / 10.544 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD1,942
STATIC RADIAL LOAD6,140
DYNAMIC THRUST LOAD4,970
STATIC THRUST LOAD17,730
WEIGHT0.1 lb

TECHNICAL DATA

Specification
at a glance.

Bore10.000 in
Outside diameter10.750 in
Radial section0.500 in
L1 land diameter10.277 in
L2 land diameter10.473 in
L3 counterbore10.544 in
Dynamic radial capacity1,942
Dynamic thrust capacity4,970
Static radial capacity6,140
Static thrust capacity17,730
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.1 lb
