Thin Section Bearings/KC Series/KC060AR0

KC Series · Type A · Open · Angular contact

KC060AR0
thin section bearing

Open angular contact thin section bearing for precision motion and compact assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KC060AR0 open thin section bearingOPEN / KC060AR0

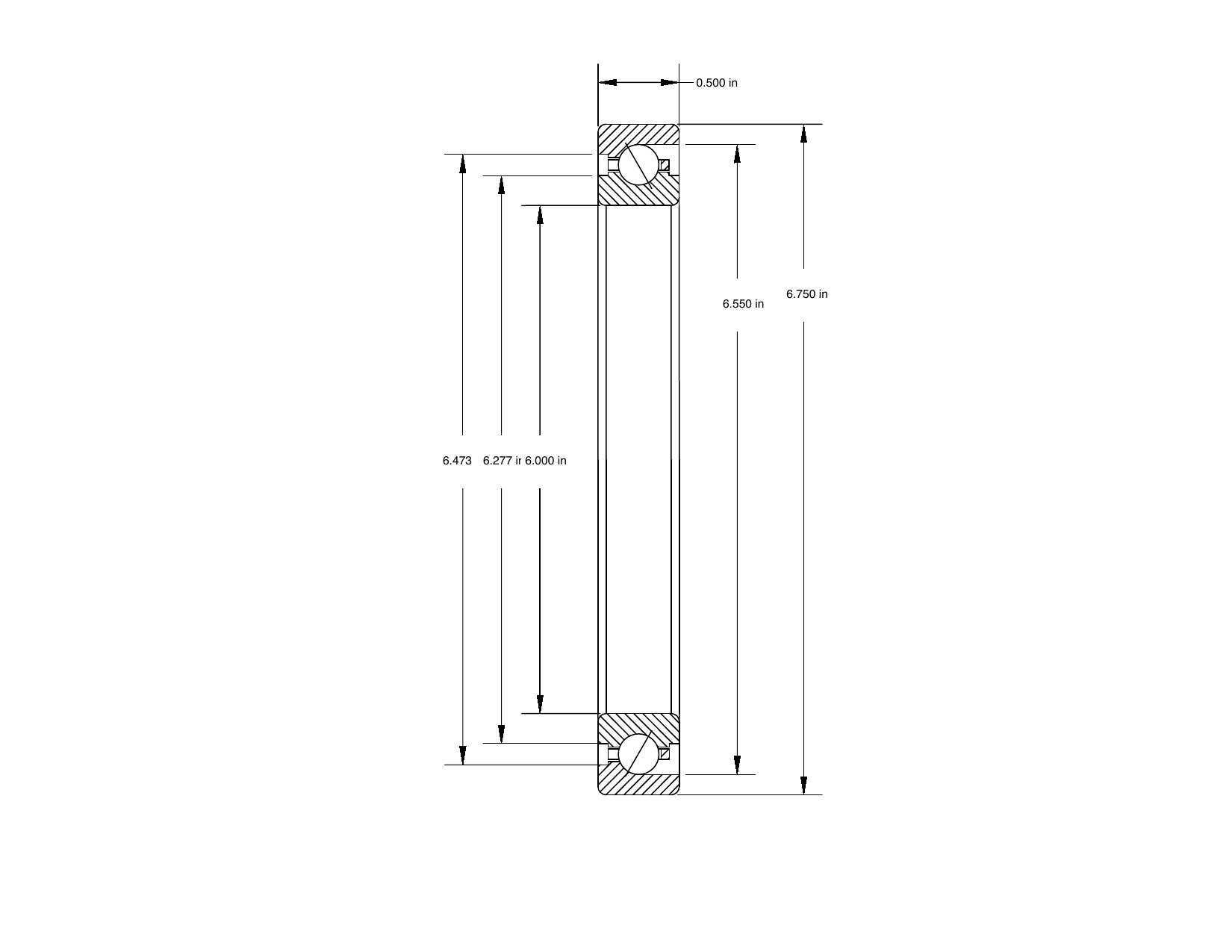

PRIUS BEARINGSMECHANICAL DRAWING · KC060AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KC060AR0 dimensioned mechanical drawing
PART NUMBERKC060AR0
BORE / d6.000 in
O.D. / D6.750 in
WIDTH / B0.500 in
L1 / L2 / L36.277 in / 6.473 in / 6.550 in
TYPEType A · Open · Angular contact
DYNAMIC RADIAL LOAD1,448
STATIC RADIAL LOAD3,750
DYNAMIC THRUST LOAD3,580
STATIC THRUST LOAD10,820
WEIGHT0.64 lb

TECHNICAL DATA

Specification
at a glance.

Bore6.000 in
Outside diameter6.750 in
Radial section0.500 in
L1 land diameter6.277 in
L2 land diameter6.473 in
L3 counterbore6.550 in
Dynamic radial capacity1,448
Dynamic thrust capacity3,580
Static radial capacity3,750
Static thrust capacity10,820
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.64 lb
