KB Series · Type X · Open · Four-point contact
KB020XP0 is a Kaydon catalogue cross-reference for a PRIUS BEARINGS thin section alternative. Its reference envelope has a bore of 2.000 in, outside diameter of 2.625 in and radial section of 0.3125 in. The listed configuration is Type X · Open · Four-point contact.
OPEN / FAMILY PHOTOProduct-family photograph. Use the KB020XP0 reference dimensions and approved drawing to confirm the supplied configuration.

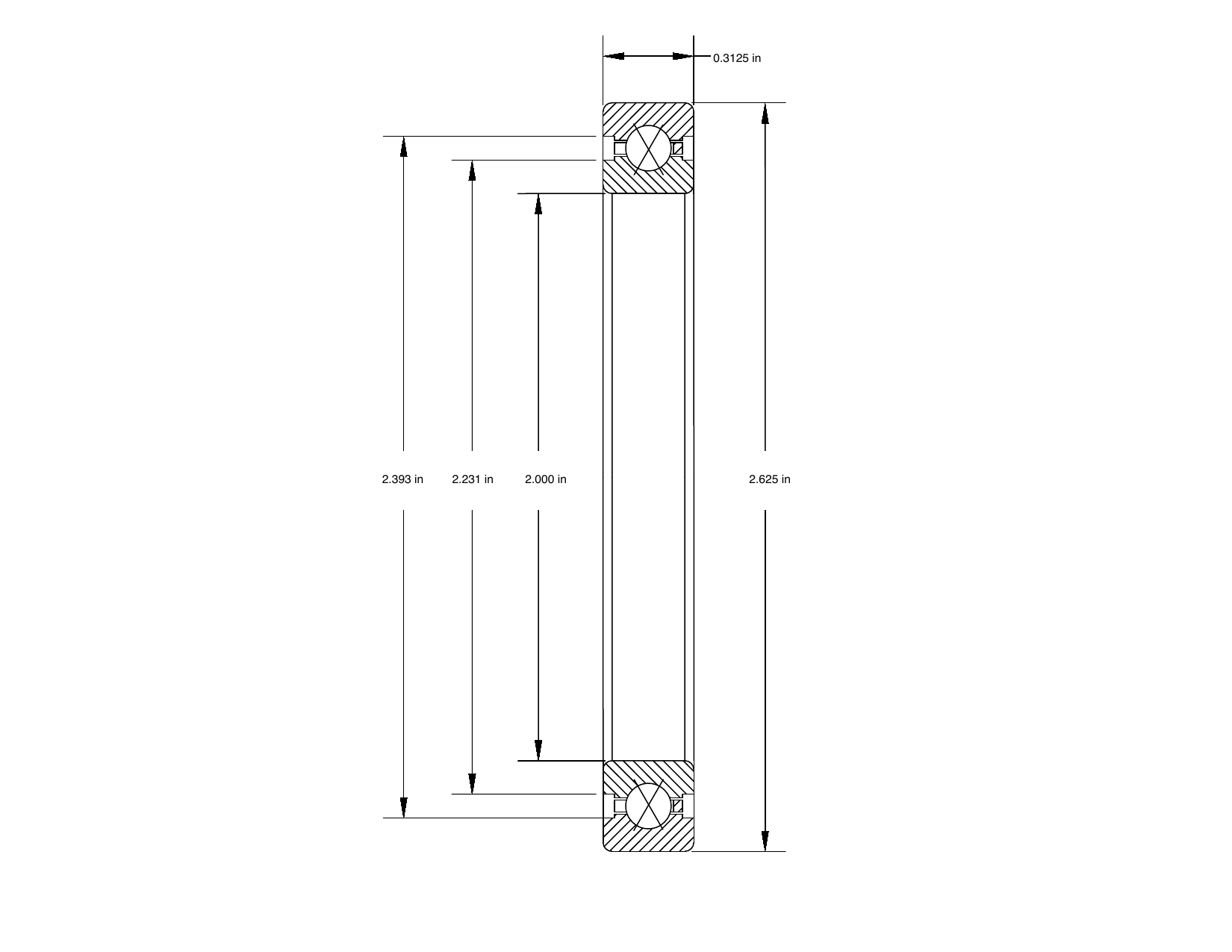

Typical section drawing, not to scale. Match the dimension symbols to the model values below. Confirm fits, tolerances and manufacturing details against the approved model drawing.
TECHNICAL DATA
MODEL SELECTION & CROSS-REFERENCE
KB020XP0 belongs to the KB Series and has a bore of 2.000 in (50.8 mm), outside diameter of 2.625 in (66.675 mm) and radial section of 0.3125 in. Use the land dimensions in the table when reviewing the shaft and housing shoulders. The section drawing identifies the dimension symbols; send your mating-part drawing to confirm fits and tolerances.
Four-point contact selection requires the combined radial, axial and overturning moment load case. Provide how these loads act together, along with speed, duty cycle and mounting stiffness, for an application review.
This reference is open. Include the housing protection and lubrication method in the enquiry, especially for dust, moisture or washdown exposure.
The reference dynamic radial capacity is 758 lb; static radial capacity is 930 lb. The listed dynamic thrust capacity is 1,130 lb. These values describe the catalogue reference. Final PRIUS ratings, clearance and service life require confirmation against the application.
These references match bore, outside diameter and radial section. Contact geometry, land dimensions, sealing and ratings may differ; interchangeability needs a drawing review.
| Reference | Contact / sealing | Dynamic radial |
|---|---|---|
| KB020XP0 (this page) | Type X · Open · Four-point contact | 758 lb |
| JB020CP0 | Type C · Sealed · Radial contact | 577 lb |
| JB020XP0 | Type X · Sealed · Four-point contact | 758 lb |
| KB020AR0 | Type A · Open | 601 lb |
| KB020CP0 | Type C · Open · Radial contact | 577 lb |
FREQUENT QUESTIONS
Send the complete KB020XP0 reference, original drawing and required quantity. We review the 2.000 in bore, 2.625 in outside diameter, contact design, fits, clearance and load case before confirming a PRIUS alternative. Kaydon and Reali-Slim are original-owner trademarks used for cross-reference; PRIUS BEARINGS is an independent supplier.
Four-point contact selection requires the combined radial, axial and overturning moment load case. Provide how these loads act together, along with speed, duty cycle and mounting stiffness, for an application review. KB020XP0 is listed as type x · open · four-point contact.
Send the model, quantity, shaft and housing dimensions, loads, speed, required clearance or preload, lubrication and operating environment. Email drawings or photos to sales@priusbearing.com. Include the original bearing suffix so the material and separator requirements can be checked.
