Thin Section Bearings/KA Series/KA020XP0

KA Series · Type X · Open · Four-point contact

KA020XP0
thin section bearing

Four-point contact thin section bearing for combined radial, axial and moment loading.

Request a quote →Back to all models
PRIUS BEARINGS KA020XP0 open thin section bearingOPEN / KA020XP0

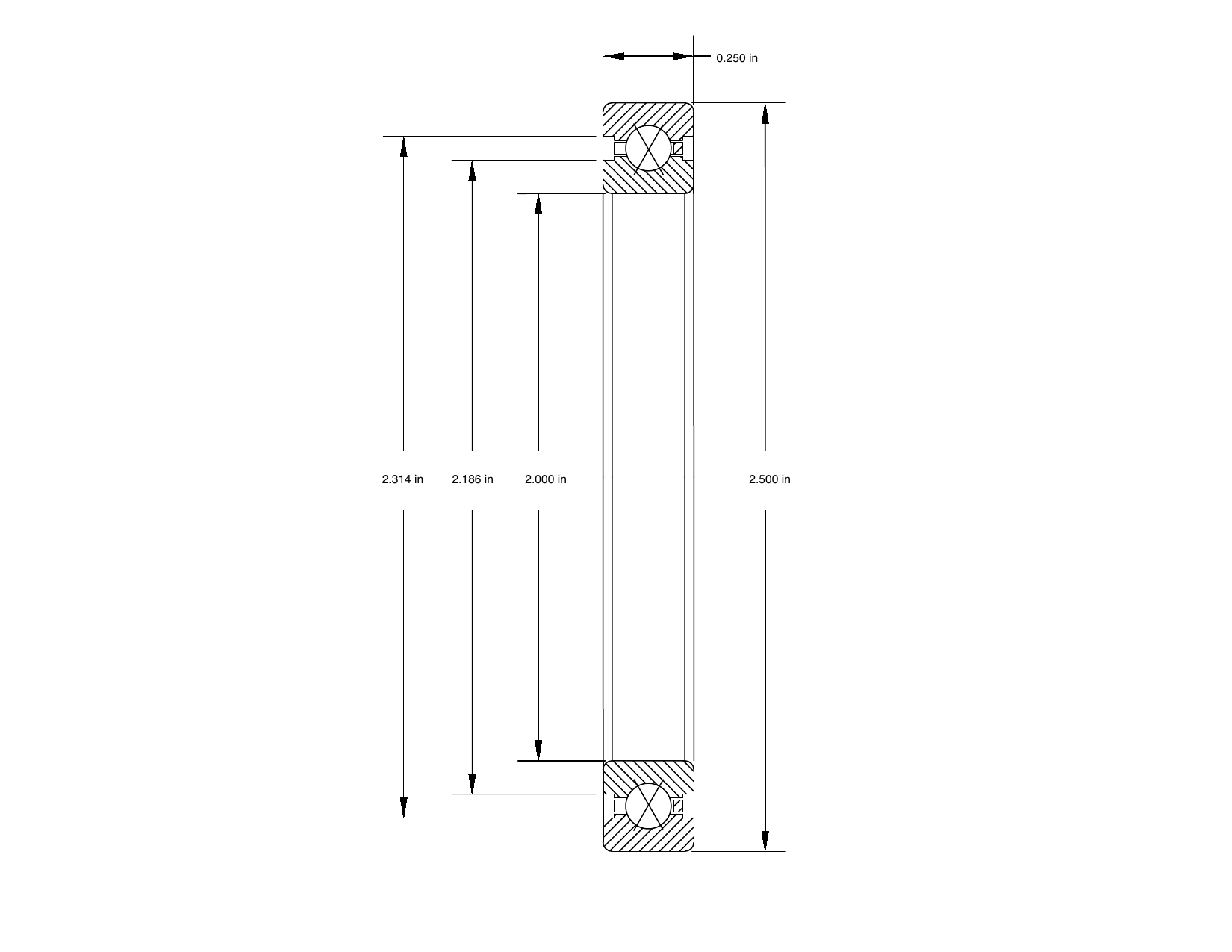

PRIUS BEARINGSMECHANICAL DRAWING · KA020XP0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KA020XP0 dimensioned mechanical drawing
PART NUMBERKA020XP0
BORE / d2.000 in
O.D. / D2.500 in
WIDTH / B0.250 in
L1 / L2 / L32.186 in / 2.314 in / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD514 lb
STATIC RADIAL LOAD680 lb
DYNAMIC THRUST LOAD790 lb
STATIC THRUST LOAD1,710 lb
WEIGHT0.10 lb

TECHNICAL DATA

Specification
at a glance.

Bore2.000 in
Outside diameter2.500 in
Radial section0.250 in
L1 land diameter2.186 in
L2 land diameter2.314 in
L3 counterbore—
Dynamic radial capacity514 lb
Dynamic thrust capacity790 lb
Static radial capacity680 lb
Static thrust capacity1,710 lb
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.10 lb
