Thin Section Bearings/KA Series/KA110AR0

KA Series · Type A · Open

KA110AR0
thin section bearing

Large-bore KA series alternative for industrial rotary tables and compact gear assemblies.

Request a quote →Back to all models
PRIUS BEARINGS KA110AR0 open thin section bearingOPEN / KA110AR0

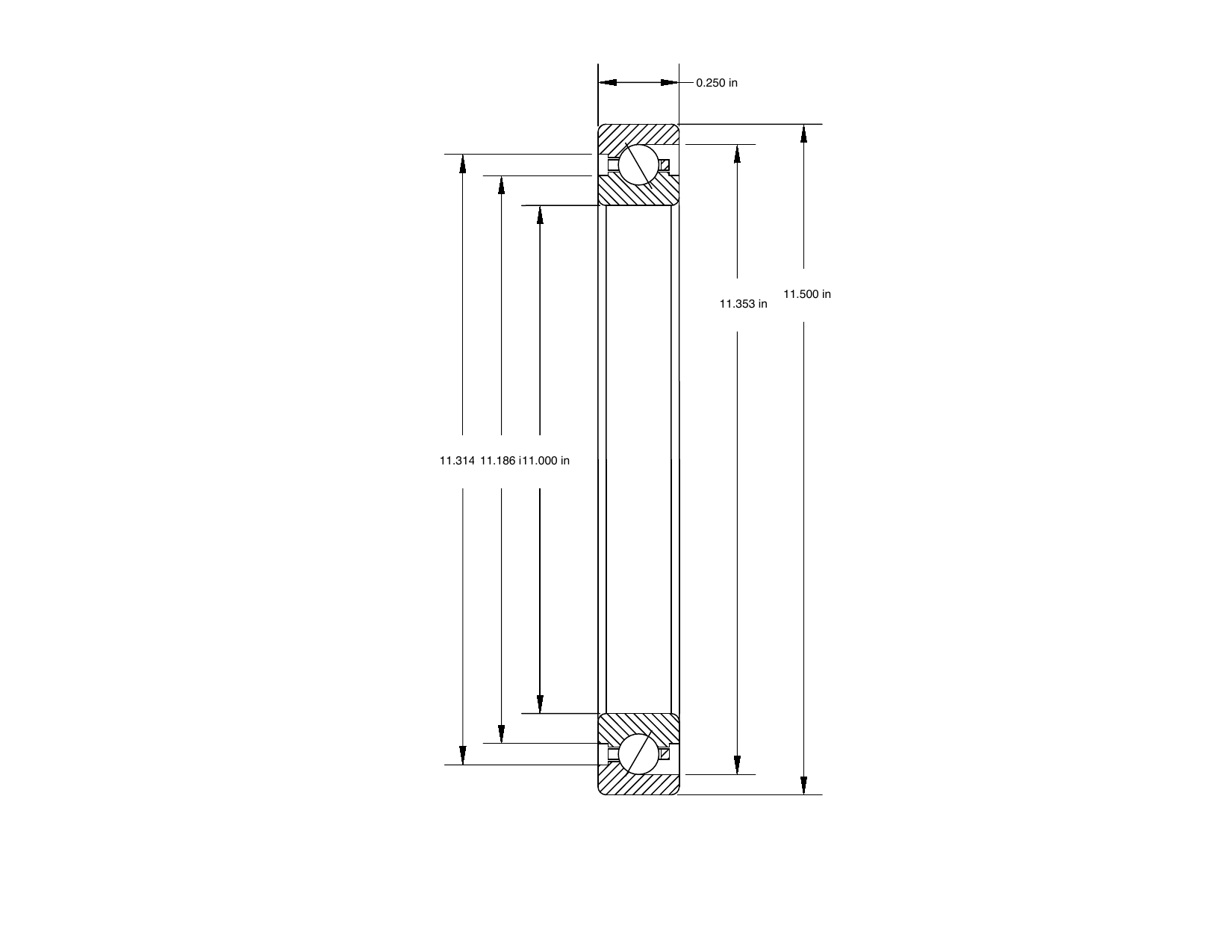

PRIUS BEARINGSMECHANICAL DRAWING · KA110AR0UNITS: inch · SCALE: NTS
PRIUS BEARINGS KA110AR0 dimensioned mechanical drawing
PART NUMBERKA110AR0
BORE / d11.000 in
O.D. / D11.500 in
WIDTH / B0.250 in
L1 / L2 / L311.186 in / 11.314 in / 11.353 in
TYPEType A · Open
DYNAMIC RADIAL LOAD1,072 lb
STATIC RADIAL LOAD3,940 lb
DYNAMIC THRUST LOAD2,810 lb
STATIC THRUST LOAD11,380 lb
WEIGHT0.50 lb

TECHNICAL DATA

Specification
at a glance.

Bore11.000 in
Outside diameter11.500 in
Radial section0.250 in
L1 land diameter11.186 in
L2 land diameter11.314 in
L3 counterbore11.353 in
Dynamic radial capacity1,072 lb
Dynamic thrust capacity2,810 lb
Static radial capacity3,940 lb
Static thrust capacity11,380 lb
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.50 lb

FIND YOUR FIT

Related models.

Open full selector ↗
Type A · OpenKA100AR0d 10.000 in · D 10.500 in · 1,014 lb radialType A · OpenKB100AR0d 10.000 in · D 10.625 in · 1,461 lb radialType A · OpenKB120AR0d 12.000 in · D 12.625 in · 1,623 lb radialType A · OpenKA080AR0d 8.000 in · D 8.500 in · 890 lb radial

INDEPENDENT ALTERNATIVE MANUFACTURER

Need a direct replacement
for KA110AR0?

Share your drawing, duty cycle or existing part number. We will review fit, load and availability before quoting.

Talk to an engineer →

Brand names and part numbers are used for identification and cross-reference only. PRIUS BEARINGS is not affiliated with the original trademark owner.
