KA Series · Type A · Open
KA080AR0 is a Kaydon catalogue cross-reference for a PRIUS BEARINGS thin section alternative. Its reference envelope has a bore of 8.000 in, outside diameter of 8.500 in and radial section of 0.250 in. The listed configuration is Type A · Open.
OPEN / FAMILY PHOTOProduct-family photograph. Use the KA080AR0 reference dimensions and approved drawing to confirm the supplied configuration.

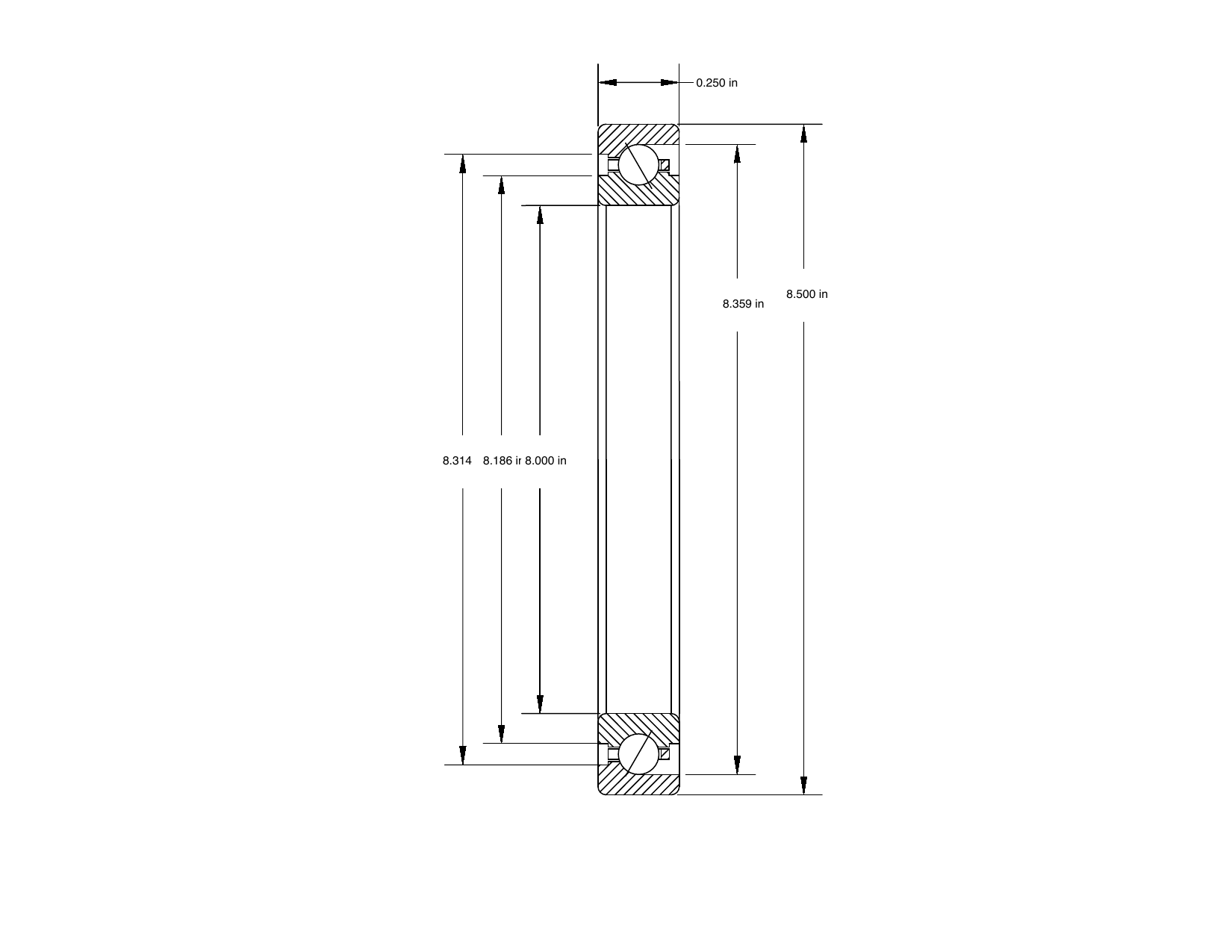

Typical section drawing, not to scale. Match the dimension symbols to the model values below. Confirm fits, tolerances and manufacturing details against the approved model drawing.
TECHNICAL DATA
MODEL SELECTION & CROSS-REFERENCE
KA080AR0 belongs to the KA Series and has a bore of 8.000 in (203.2 mm), outside diameter of 8.500 in (215.9 mm) and radial section of 0.250 in. Use the land dimensions in the table when reviewing the shaft and housing shoulders. The section drawing identifies the dimension symbols; send your mating-part drawing to confirm fits and tolerances.
Angular contact selection starts with axial load direction and the bearing arrangement. Provide the opposing bearing position, preload or clearance requirement, shaft speed and temperature so the pair and fits can be reviewed.
This reference is open. Include the housing protection and lubrication method in the enquiry, especially for dust, moisture or washdown exposure.
The reference dynamic radial capacity is 890 lb; static radial capacity is 2,890 lb. The listed dynamic thrust capacity is 2,280 lb. These values describe the catalogue reference. Final PRIUS ratings, clearance and service life require confirmation against the application.
FREQUENT QUESTIONS
Send the complete KA080AR0 reference, original drawing and required quantity. We review the 8.000 in bore, 8.500 in outside diameter, contact design, fits, clearance and load case before confirming a PRIUS alternative. Kaydon and Reali-Slim are original-owner trademarks used for cross-reference; PRIUS BEARINGS is an independent supplier.
Angular contact selection starts with axial load direction and the bearing arrangement. Provide the opposing bearing position, preload or clearance requirement, shaft speed and temperature so the pair and fits can be reviewed. KA080AR0 is listed as type a · open.
Send the model, quantity, shaft and housing dimensions, loads, speed, required clearance or preload, lubrication and operating environment. Email drawings or photos to sales@priusbearing.com. Include the original bearing suffix so the material and separator requirements can be checked.
