13 mm Series · Type C · Open · Radial contact
K14013CP0 is a Kaydon catalogue cross-reference for a PRIUS BEARINGS thin section alternative. Its reference envelope has a bore of 140 mm, outside diameter of 166 mm and radial section of 13 mm. The listed configuration is Type C · Open · Radial contact.
OPEN / FAMILY PHOTOProduct-family photograph. Use the K14013CP0 reference dimensions and approved drawing to confirm the supplied configuration.

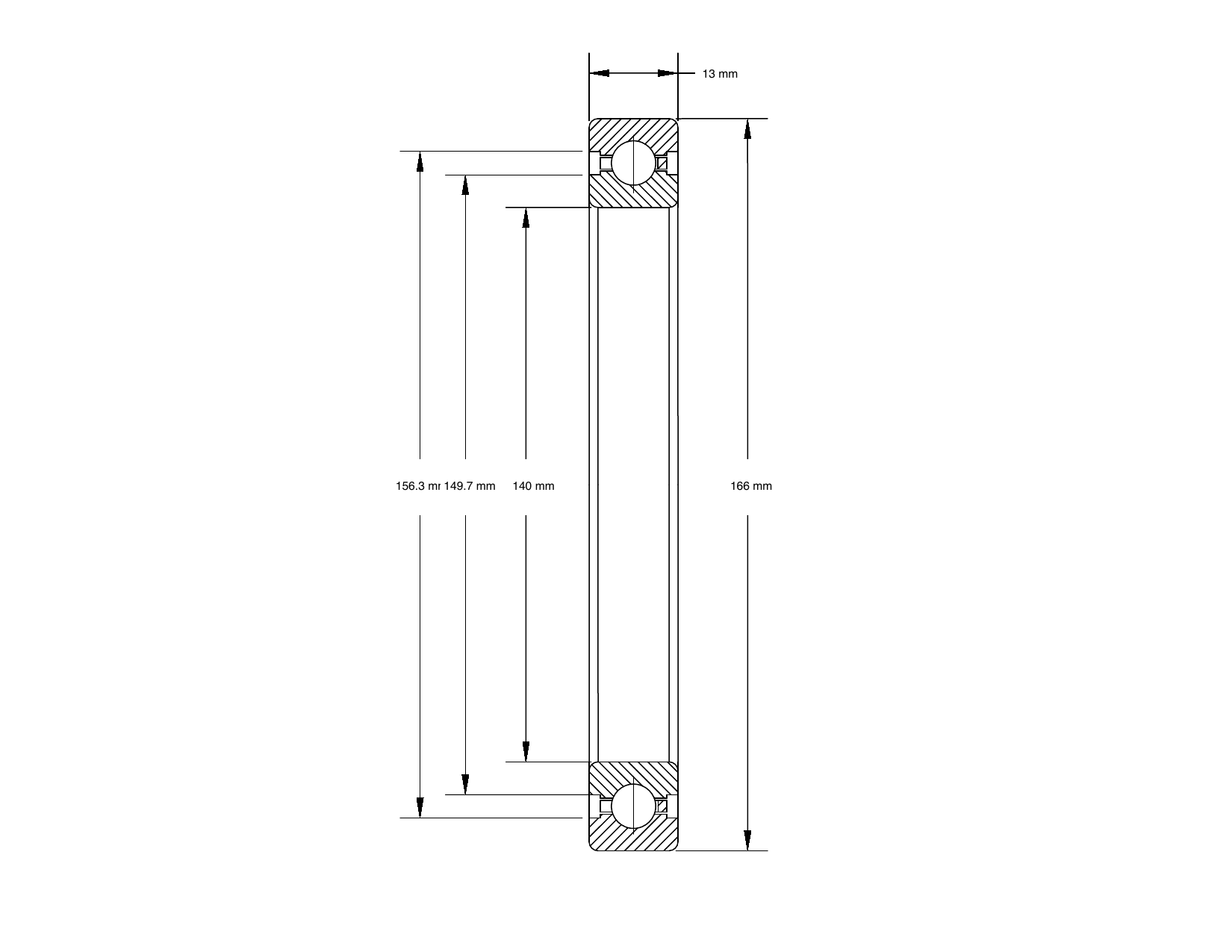

Typical section drawing, not to scale. Match the dimension symbols to the model values below. Confirm fits, tolerances and manufacturing details against the approved model drawing.
TECHNICAL DATA
Original catalogue table for this reference →
APPLICATION & INTERCHANGE REVIEW
K14013CP0 is an open Type C reference with a 140 mm bore, 166 mm outside diameter and 13 mm section. The nominal envelope is useful for a hollow-shaft layout, while the contact arrangement still needs the actual support and load case.
The section matches, but K16013CP0 has a 160 mm bore and 186 mm outside diameter. The shaft and housing interfaces would need separate review.
MODEL SELECTION & CROSS-REFERENCE
K14013CP0 belongs to the 13 mm Series and has a bore of 140 mm , outside diameter of 166 mm and radial section of 13 mm. Use the land dimensions in the table when reviewing the shaft and housing shoulders. The section drawing identifies the dimension symbols; send your mating-part drawing to confirm fits and tolerances.
Radial contact selection starts with the radial load and shaft support arrangement. If the assembly also needs axial location or moment resistance, include those loads for review before choosing the contact type.
This reference is open. Include the housing protection and lubrication method in the enquiry, especially for dust, moisture or washdown exposure.
The reference dynamic radial capacity is 11464 N; static radial capacity is 22820 N. No dynamic thrust rating is listed for this reference. Send the axial load separately for engineering review. These values describe the catalogue reference. Final PRIUS ratings, clearance and service life require confirmation against the application.
These references match bore, outside diameter and radial section. Contact geometry, land dimensions, sealing and ratings may differ; interchangeability needs a drawing review.
| Reference | Contact / sealing | Dynamic radial |
|---|---|---|
| K14013CP0 (this page) | Type C · Open · Radial contact | 11464 N |
| K14013XP0 | Type X · Open · Four-point contact | 15141 N |
FREQUENT QUESTIONS
Send the complete K14013CP0 reference, original drawing and required quantity. We review the 140 mm bore, 166 mm outside diameter, contact design, fits, clearance and load case before confirming a PRIUS alternative. Kaydon and Reali-Slim are original-owner trademarks used for cross-reference; PRIUS BEARINGS is an independent supplier.
Radial contact selection starts with the radial load and shaft support arrangement. If the assembly also needs axial location or moment resistance, include those loads for review before choosing the contact type. K14013CP0 is listed as type c · open · radial contact.
Send the model, quantity, shaft and housing dimensions, loads, speed, required clearance or preload, lubrication and operating environment. Email drawings or photos to sales@priusbearing.com. Include the original bearing suffix so the material and separator requirements can be checked.
