Thin Section Bearings/13 mm Series/K09020XP0

13 mm Series · Type X · Open · Four-point contact

K09020XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K09020XP0 open thin section bearingOPEN / K09020XP0

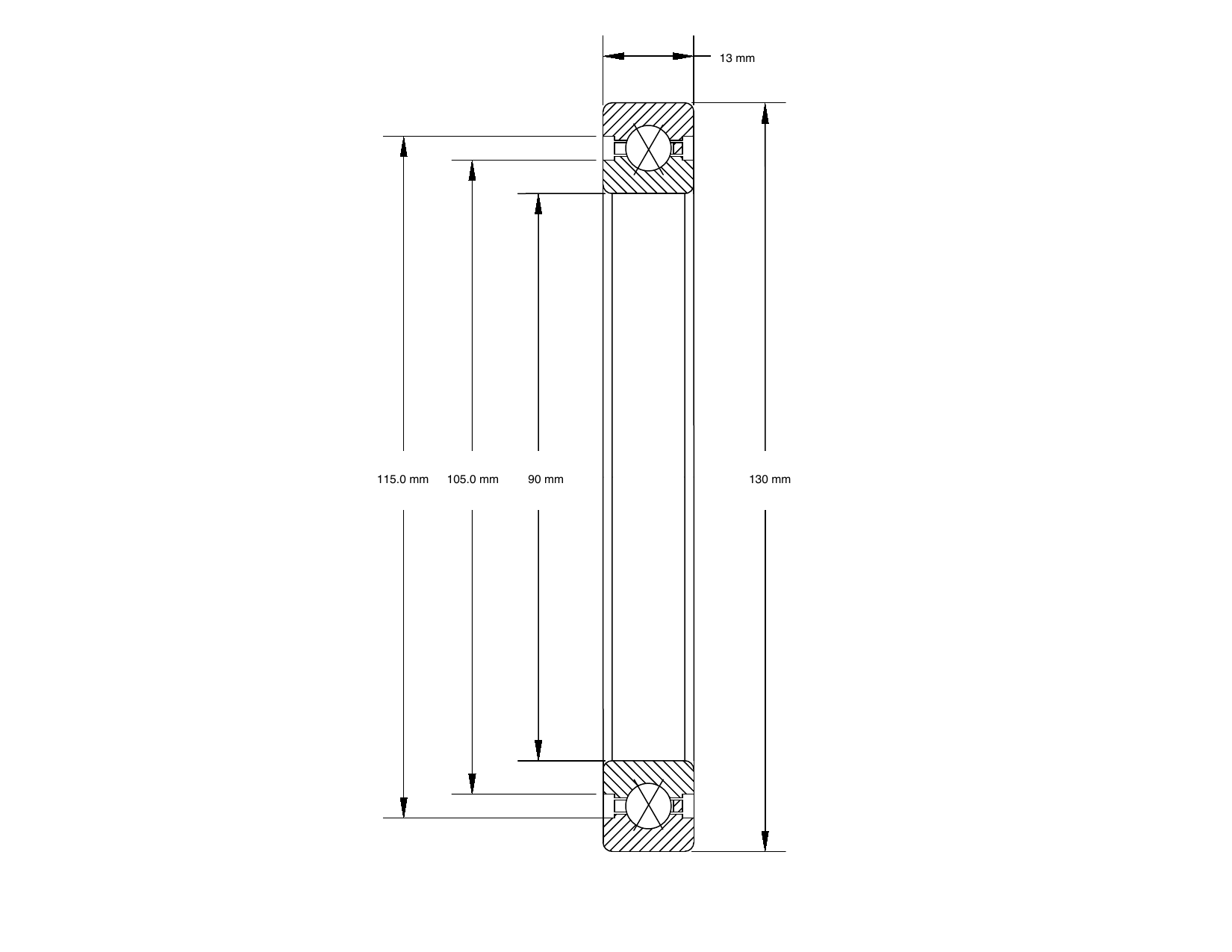

PRIUS BEARINGSMECHANICAL DRAWING · K09020XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K09020XP0 dimensioned mechanical drawing
PART NUMBERK09020XP0
BORE / d90 mm
O.D. / D130 mm
WIDTH / B13 mm
L1 / L2 / L3105.0 mm / 115.0 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD22192
STATIC RADIAL LOAD60615
DYNAMIC THRUST LOAD31685
STATIC THRUST LOAD1334
WEIGHT0.80 kg

TECHNICAL DATA

Specification
at a glance.

Bore90 mm
Outside diameter130 mm
Radial section13 mm
L1 land diameter105.0 mm
L2 land diameter115.0 mm
L3 counterbore—
Dynamic radial capacity22192
Dynamic thrust capacity31685
Static radial capacity60615
Static thrust capacity1334
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.80 kg
