Thin Section Bearings/13 mm Series/K08020XP0

13 mm Series · Type X · Open · Four-point contact

K08020XP0
thin section bearing

Metric thin section bearing from the Reali-Slim selection tables.

Request a quote →Back to all models
PRIUS BEARINGS K08020XP0 open thin section bearingOPEN / K08020XP0

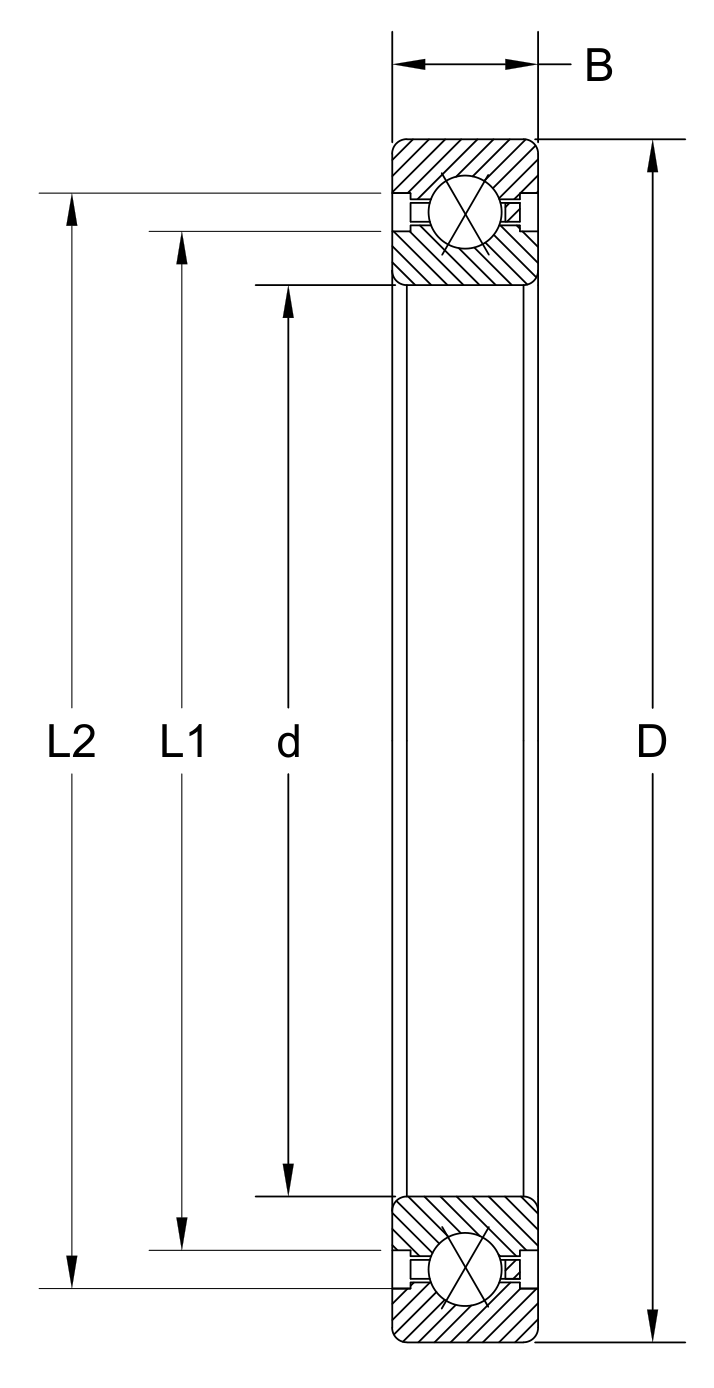

PRIUS BEARINGSMECHANICAL DRAWING · K08020XP0UNITS: mm · SCALE: NTS
PRIUS BEARINGS K08020XP0 dimensioned mechanical drawing
PART NUMBERK08020XP0
BORE / d80 mm
O.D. / D120 mm
WIDTH / B13 mm
L1 / L2 / L395.0 mm / 105.0 mm / —
TYPEType X · Open · Four-point contact
DYNAMIC RADIAL LOAD20702
STATIC RADIAL LOAD53485
DYNAMIC THRUST LOAD29155
STATIC THRUST LOAD1070
WEIGHT0.73 kg

TECHNICAL DATA

Specification
at a glance.

Bore80 mm
Outside diameter120 mm
Radial section13 mm
L1 land diameter95.0 mm
L2 land diameter105.0 mm
L3 counterbore—
Dynamic radial capacity20702
Dynamic thrust capacity29155
Static radial capacity53485
Static thrust capacity1070
MaterialAISI 52100 steel
SeparatorType A circular pocket
PrecisionKaydon Precision Class 1 / ABEC-1F or better
Temperature range-54°C to +121°C
Weight0.73 kg
