PRIUS BEARINGS · SLEWING RING BEARING
062.50.2000.001.49.1504
slewing ring bearing
062.50.2000.001.49.1504 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 2171 mm, inside diameter 1764 mm, height 109 mm. Send the complete model suffix, mounting details and operating loads for review.

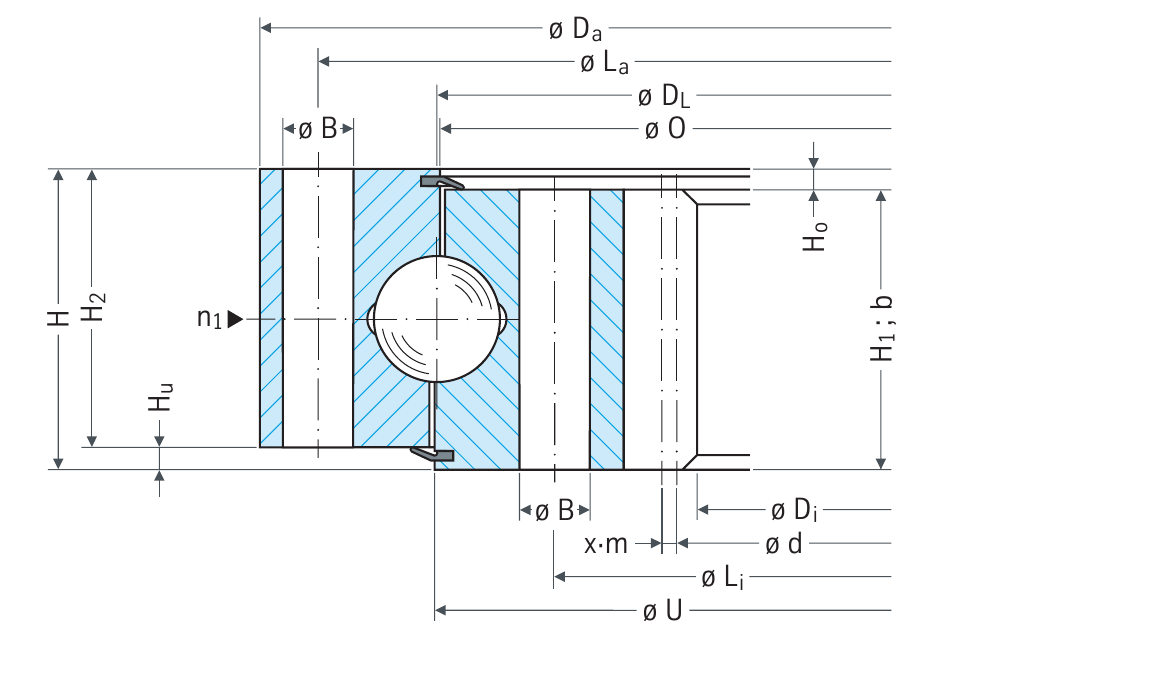

DIMENSIONAL REFERENCE
MODEL 062.50.2000.001.49.1504
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
062.50.2000.001.49.1504
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
An internally geared single-row four-point reference
The original Series 06 table identifies internal gearing for this reference. The envelope is 2171 mm outside diameter, 1764 mm inside diameter and 109 mm height. The 2000 mm raceway code is distinct from the attachment circles and gear pitch diameter.
What to check in your assembly
- Check the 2105 mm and 1895 mm attachment references, 40-hole specification and M30 fastener reference.
- Confirm the 1778 mm pitch diameter, module 14 and 127-tooth gear against the internal pinion arrangement.
- Retain the .001.49.1504 suffix and check the original load curves with the application loads and mounting structure.
Can a 2000 mm externally geared reference be treated as the same installation?
The gear position, pitch diameter and mounting interfaces require separate review. The raceway designation does not define an interchangeable drive.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for 062.50.2000.001.49.1504?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For 062.50.2000.001.49.1504, provide the complete reference and suffix, confirm outside diameter 2171 mm, inside diameter 1764 mm, height 109 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
