PRIUS BEARINGS · SLEWING RING BEARING
062.20.0414.575.01.1403
slewing ring bearing
062.20.0414.575.01.1403 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 484.5 mm, inside diameter 326.5 mm, height 56 mm. Send the complete model suffix, mounting details and operating loads for review.

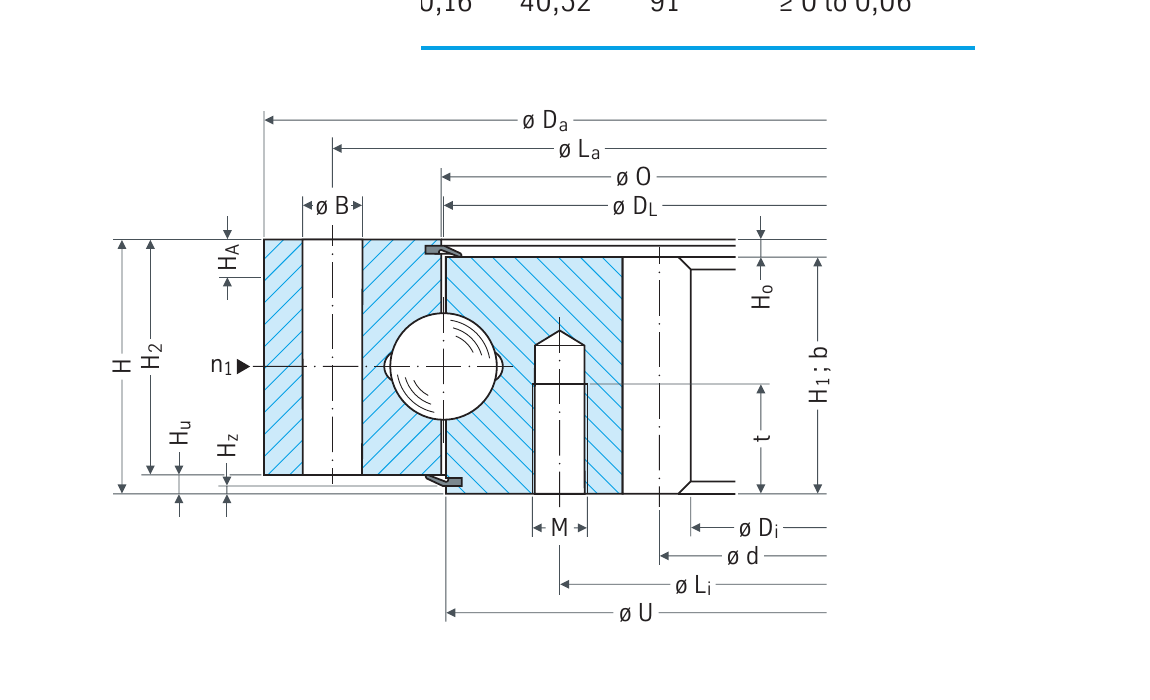

DIMENSIONAL REFERENCE
MODEL 062.20.0414.575.01.1403
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
062.20.0414.575.01.1403
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
Restricted-play reference with internal gearing
This original Series 06 type 621 reference is described as a bearing with restricted play. The 484.5 mm outside, 326.5 mm inside and 56 mm overall-height envelope must be reviewed together with the required assembled clearance.
What to check in your assembly
- Check the 460 mm outer and 375 mm inner attachment circles and the 24-hole specification.
- The original attachment table distinguishes 13.5 mm holes from the M12 thread designation; confirm the exact bolt engagement on the section drawing.
- Review the module 5, 67-tooth internal gear and the permitted play for the full .575.01.1403 configuration.
Can a general-clearance bearing be substituted for this restricted-play reference?
Specify the permitted clearance and the installed stiffness or positioning requirements. Suitability needs a review of both the internal arrangement and the application.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for 062.20.0414.575.01.1403?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For 062.20.0414.575.01.1403, provide the complete reference and suffix, confirm outside diameter 484.5 mm, inside diameter 326.5 mm, height 56 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
