PRIUS BEARINGS · SLEWING RING BEARING
061.20.0944.500.01.1503
slewing ring bearing
061.20.0944.500.01.1503 is listed as a Rothe Erde catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 1046.4 mm, inside diameter 872 mm, height 56 mm. Send the complete model suffix, mounting details and operating loads for review.

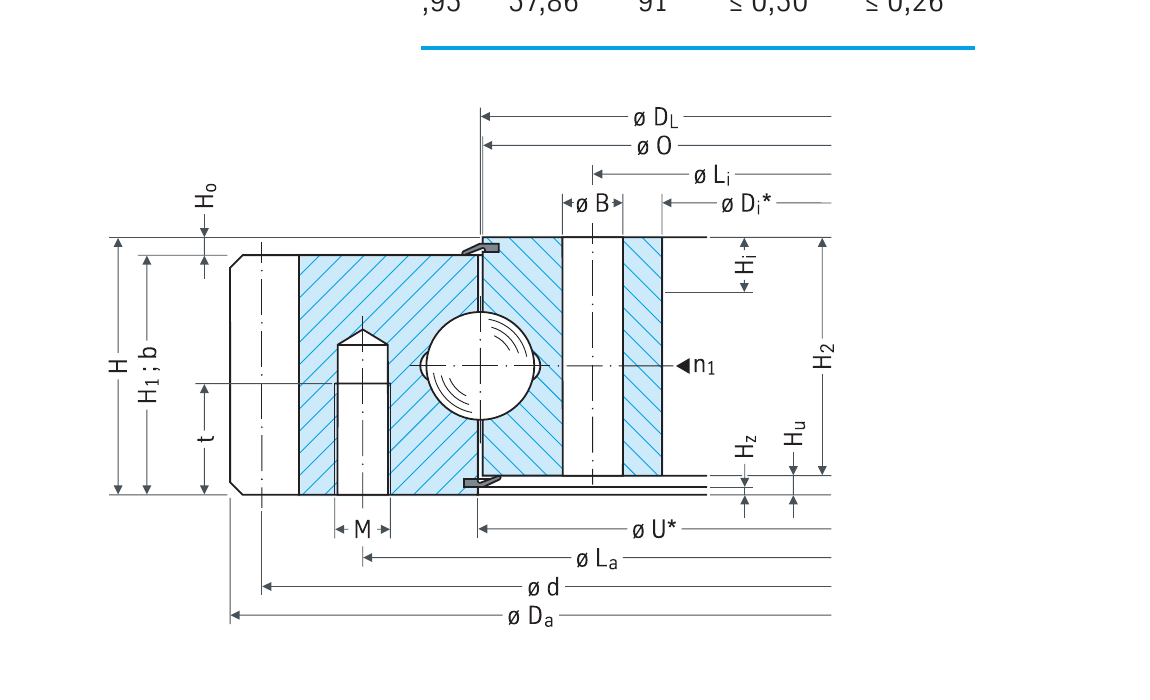

EXTERNAL GEAR / 061.20.0944.500.01.1503DIMENSIONAL REFERENCE
MODEL 061.20.0944.500.01.1503
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
061.20.0944.500.01.1503
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
Externally geared Series 06 with separate attachment circles
This complete reference is listed as a single-row four-point bearing with external gearing. Its 1046.4 mm outside diameter, 872 mm inside diameter and 56 mm height should be checked independently from the 944 mm raceway designation.
What to check in your assembly
- Review the 985 mm outer and 898 mm inner attachment references and the original ring-specific hole counts.
- Confirm the module 8, 129-tooth external gear and pinion position on the complete .500.01.1503 drawing.
- Supply combined loads, axial location and supporting flange details for the low-height assembly.
Is the 944 raceway designation the attachment-circle diameter?
It is a separate catalogue reference. Use the specified outer and inner attachment circles to check the companion structure.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for 061.20.0944.500.01.1503?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For 061.20.0944.500.01.1503, provide the complete reference and suffix, confirm outside diameter 1046.4 mm, inside diameter 872 mm, height 56 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
