Slewing Rings/PRIUS BEARINGS/A14-54N10C← View all models

PRIUS BEARINGS · SLEWING RING BEARING

A14-54N10C
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL A14-54N10C

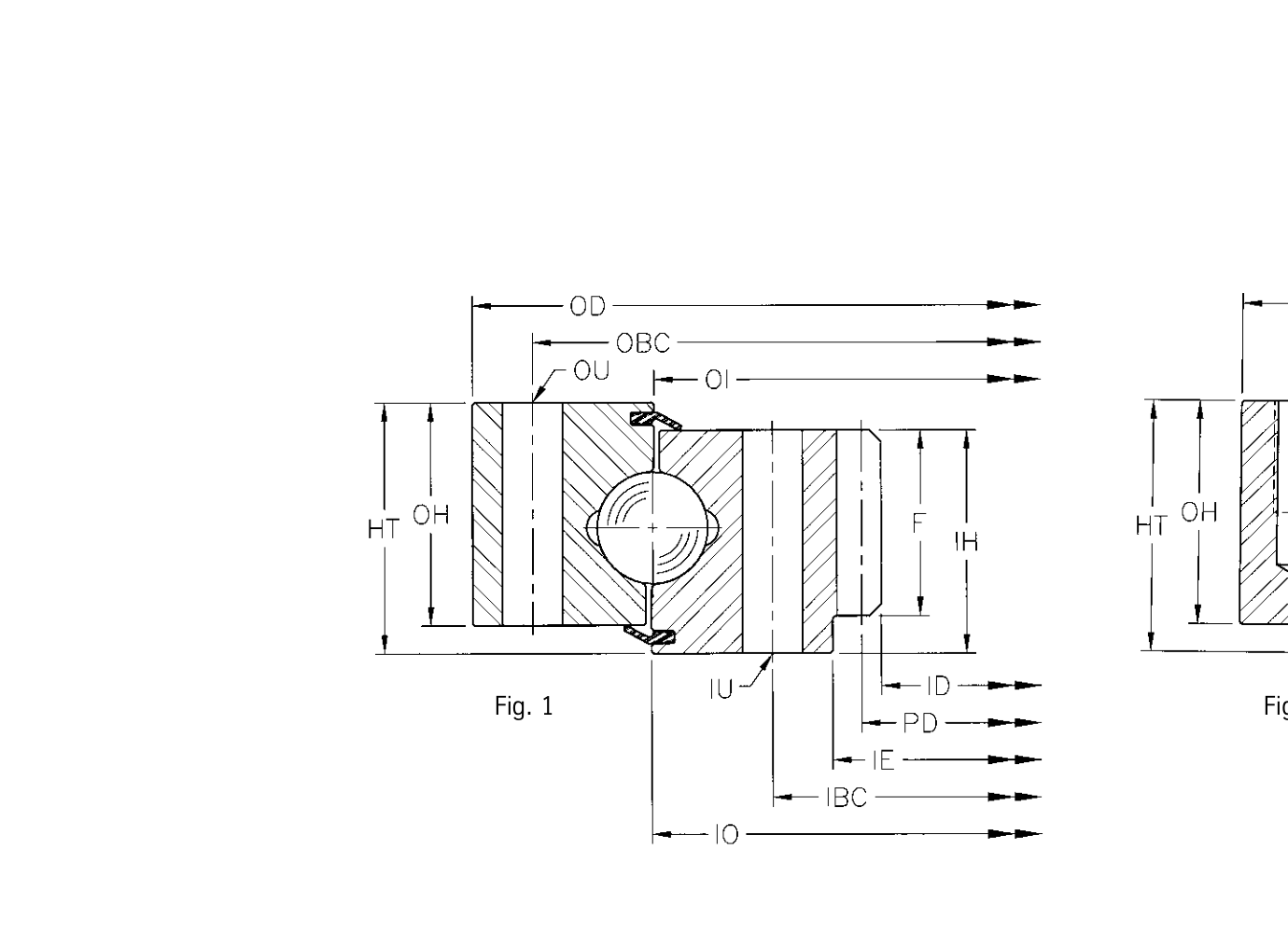

PRIUS BEARINGS A14-54N10C 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

A14-54N10C
parameters

Key dimensions and load information for preliminary selection.

ModelA14-54N10C
Brand / alternativePRIUS BEARINGS · Alternative for Rotek
TypeSlewing ring bearing
Outside diameter OD (in)60.00
Inside diameter ID (in)46.700
Overall height HT (in)5.50
Weight (lb)1150
Outer hole circle OBC (in)58.000
Outer mounting hole count36
Inner hole circle IBC (in)50.500
Inner mounting hole count36
Nominal thrust capacity (lb)1960000
Nominal moment capacity (ft-lb)2030000
Gear pitch diameter PD (in)47.500
Diametral pitch DP2
Gear tooth count95
Tangential tooth load F (lb)34400
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Schaeffler · Slewing ring bearingVLI 20 0414 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLI 20 0544 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLI 20 0644 NView dimensions and engineering data →Schaeffler · Slewing ring bearingVLI 20 0744 NView dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
