01-0181-02
slewing ring bearing
01-0181-02 is listed as a Rollix catalogue cross-reference for a PRIUS slewing ring alternative. The catalogue envelope is outside diameter 244 mm, inside diameter 125 mm, height 25 mm. Send the complete model suffix, mounting details and operating loads for review.

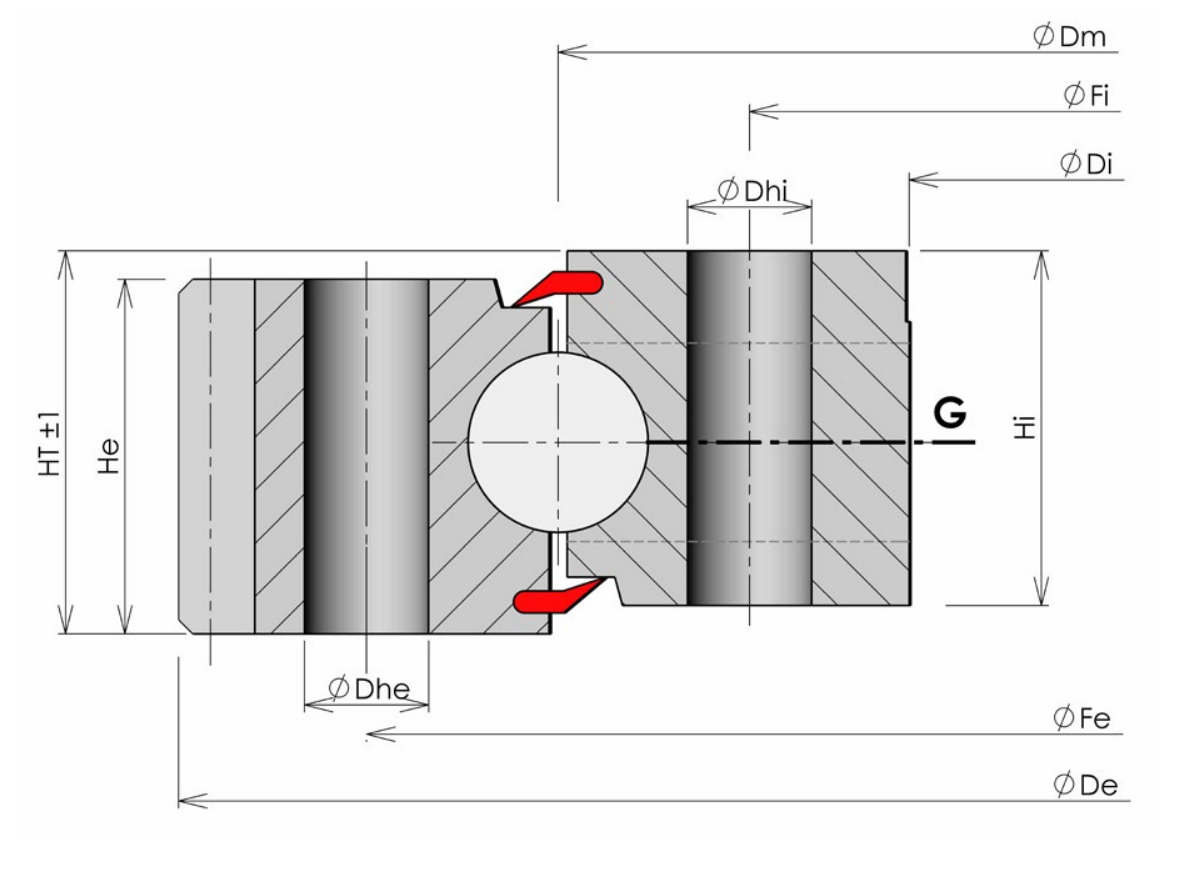

DIMENSIONAL REFERENCE
MODEL 01-0181-02
Catalogue illustrations may cover a bearing series. Confirm the exact model, suffix, dimensions and hole pattern against the final drawing before selection.
ENGINEERING DATA
01-0181-02
parameters
Catalogue reference dimensions and load information for preliminary selection. Confirm the final PRIUS drawing and ratings before ordering.
APPLICATION & INTERCHANGE REVIEW
A shallow ring with different attachment counts
The 25 mm overall height of 01-0181-02 makes axial stack-up a key review point. The catalogue envelope is 244 mm outside diameter and 125 mm inside diameter, with separate inner and outer attachment patterns.
What to check in your assembly
- Compare the 214 mm outer mounting circle with 24 holes against the 144 mm inner circle with 20 holes.
- The table lists 11 mm holes and 120 teeth; obtain the complete gear specification and pinion drawing before confirming the drive.
- Check flange support, bolt-head clearance and grease access within the shallow installation space.
Can I infer the complete gear specification from 120 teeth?
Tooth count is one part of the interface. The module or DP, pressure angle, face width, profile and backlash also need confirmation.
NEED A MATCH?
Send us your
drawing or load case.
We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.
Start an enquiry →MODEL SELECTION
Related slewing
ring bearings
Compare references from the same brand catalogue, prioritising the same family and arrangement, then nearby available envelope dimensions. Related references are not confirmed interchangeable.
FREQUENT QUESTIONS
Can PRIUS review an alternative for 01-0181-02?
We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.
What information is needed for selection?
For 01-0181-02, provide the complete reference and suffix, confirm outside diameter 244 mm, inside diameter 125 mm, height 25 mm, and include gear configuration, mounting-hole details, loads and operating speed.
Can you check an alternative from a drawing or sample?
Yes. Email the drawing, catalogue page or clear photos to sales@priusbearing.com. Our team can review the fit before quotation.
