Slewing Rings/PRIUS BEARINGS/ROD03150← View all models

PRIUS BEARINGS · SLEWING RING BEARING

ROD03150
slewing ring bearing

Review the dimensional reference and engineering data for this slewing ring bearing model. Send your application, load and mounting requirements to receive a quotation.

Request a quote →Browse all models ↗
PRIUS alternative supply2D section referenceRFQ engineering review

DIMENSIONAL REFERENCE

MODEL ROD03150

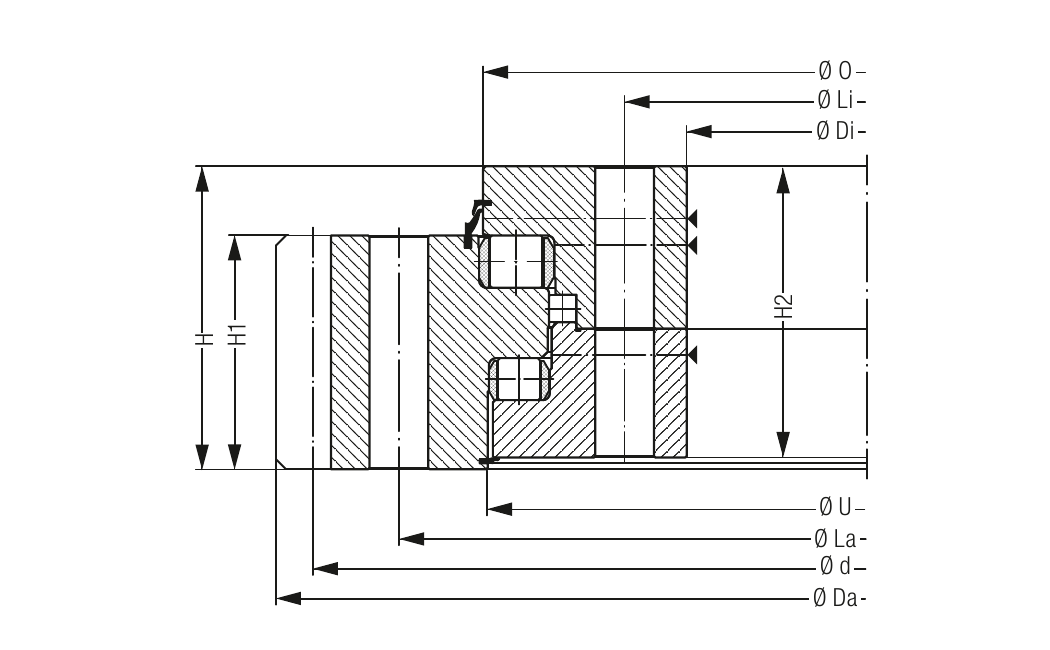

PRIUS BEARINGS ROD03150 2D section drawing

Use the drawing together with the engineering data table when checking fit, mounting and replacement requirements.

ENGINEERING DATA

ROD03150
parameters

Key dimensions and load information for preliminary selection.

ModelROD03150
Brand / alternativePRIUS BEARINGS · Alternative for Liebherr
TypeSlewing ring bearing
Weight (kg)5,298 kg
Outside diameter Da (mm)3,571.2 mm
Inside diameter di (mm)2,885 mm
Ring height H (mm)268 mm
Outer reference ØO (mm)3,210 mm
Inner reference ØU (mm)3,196 mm
Outer ring height H1 (mm)203 mm
Inner ring height H2 (mm)258 mm
Outer mounting length La (mm)3,350 mm
Inner mounting length Li (mm)2,975 mm
Mounting hole count48
Bolt diameter (mm)42 mm
Hole pitch diameter d (mm)3,504 mm
Gear module24
Gear tooth count146
Tooth correction12
Tip Reduction-2.4
Tooth width b (mm)203 mm
Tooth force, standard (kN)423.6 kN
Tooth force, maximum (kN)847.2 kN
Basic static axial load rating C0a (kN)58,080 kN
Basic dynamic axial load rating Ca (kN)6,544 kN
Bearing typeROD 50 DA external gear
Confirm dimensions & request a quote →

NEED A MATCH?

Send us your
drawing or load case.

We can review the mounting envelope, load requirements and delivery target for a PRIUS BEARINGS slewing ring alternative.

Start an enquiry →

MODEL SELECTION

Related slewing
ring bearings

Compare nearby model references or send us your current bearing number for a dimensional cross-check.

Liebherr · Slewing ring bearingKUD 00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00762View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00855View dimensions and engineering data →Liebherr · Slewing ring bearingKUD00914View dimensions and engineering data →

FREQUENT QUESTIONS

Can PRIUS BEARINGS supply this slewing ring bearing model?

We review the model, dimensions, load case, mounting arrangement and quantity before confirming a quotation.

What information is needed for selection?

Please provide the bearing model, outside and inside dimensions, height, gear configuration, mounting-hole details, loads and operating speed.

Can you check an alternative from a drawing or sample?

Yes. Upload a drawing, catalogue page or clear photos and our team can check the fit before quotation.
